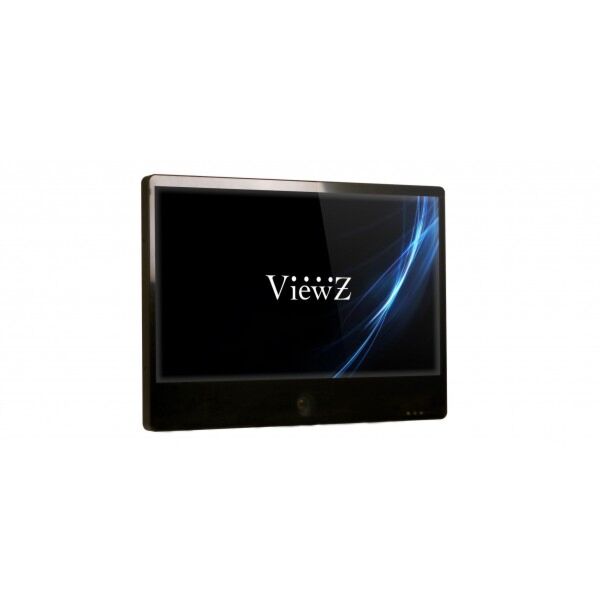

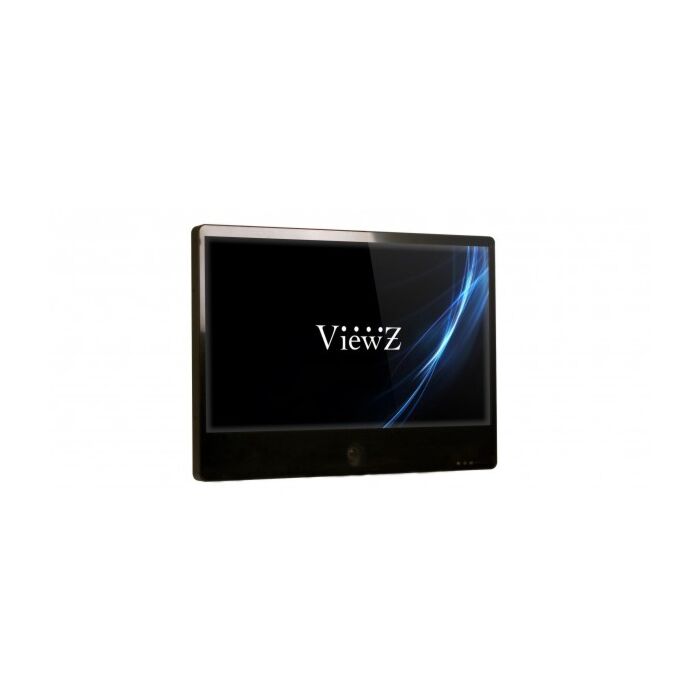

ViewZ VZ-PVM-I2B3 (VZPVMI2B3) 23" IP PVM Black
SKU
ViewZ VZ-PVM-I2B3
$1,012.00
Quick Overview
*Please note this product is subject to tariff fee*
IP-HD Camera inside a 1080p LED monitor fully loaded with advanced surveillance, digital signage features and able to connect directly to an NVR via ethernet.Features:
| Screen Size | 23" |
| Max Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.2655mm x 0.2655mm |
| Brightness | 250cd/m² (Typical) |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 160°/160° |
| Display Color | 16.7 Million |
| Response Time | < 5ms |
| Video System | NTSC / PAL |
| Frequency (H) | 31 ~ 80Khz |
| Frequency (V) | 56 ~ 75Hz |
| AV (Composite) In / Out | 1 / 1 |
| Camera Out | 1 / 720x480 |
| Ethernet 10 / 100 | 1 |
| RGB In (15pin D-Sub) | 1 |
| DVI In | 1 |
| HDMI In | 2 |
| AV (Composite) Sound In/Out (RCA Type) | 1 / 1 |
| PC Stereo In/Out | 1 / 1 |
| Multi Display Function | PIP / PBP / VOV |
| Filter Type | 3D Comb filter / De-Interlace |
| Blinking Message "Recording" | Yes |
| Timed Switching Capabilities between two cameras | Yes |
| Video Resolution (Max) | 600 TV Line |
| Camera Mounting Hole | 3 (Top, Left, Right) |
| Multi-Lingual Language | English, Spanish, French, German, Italian, Portuguese, Dutch |
| Ethernet Interface | 10/100Base-T |
| Web Client Protocol | TCP / IP |
| Supported Protocol | IPv4, TCP/IP, ARP, HTTP, SMTP, FTP, DHCP, RTP, RTSP, PPPoE |
| Outline Dimension | 21.52" x 15.93" x 3.39" |
| (W x H x D) | (546.8mm x 404.65mm x 86.3mm) |
| Net Weight / Gross Weight | 21.67 lbs ( 9.83 kg ) / 29.76 lbs ( 13.5 kg ) |
| VESA | 100mm x 100 mm / M4 x 8 Screws - 200mm x 200mm / M6 x 8 Screws |
| Sensor Type | 1/3" Panasonic 2.1M Progressive C-MOS |
| Lens | DC Auto Iris , 2.8mm~12mm |
| Active Pixels | 1920(H) x 1080p(V) 30p |
| Min Illumination | 0.5 Lux@50IRE, F1.2 |
| Function | 2D/3D NR, D-ZOOM, DPC, HLC/BLC, Defog, D/N, DWDR, AGC, AWB, IR SMART |
| Video Compression | H.264 CBR, VBR support |
| Video Out | 1ch CVBS (NTSC/PAL) / 1ch RJ-45 output |
| Motion Detection | Support |
| Support Protocol | IHTTP, TCP/UDP/IP, ARP, ICMP, RTP/RTSP, Multicast, Telnet, ftp, PPPoE, SMTP(e-mail), DHCP, NTP,uPNP, etc, ONVIF, PSIA |
| Ethernet Port | 10 / 100 Base-T |
| Webclient Connection | TCP / IP Protocol |
| Dynamic IP | Dedicated dynamic IP service using www.ipcctvdns.com |
| Support Type | Photo, Music, Video |
| External Storage | Support SD/SDHC CARD | USB 2.0 HOST |
| Output | VIDEO - HDMI(1080p) / AUDIO - L/R, HDMI |
| Video File Format | RM, RMVB, AVI, DVIX, MKV, MOV, HDMOV, MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT, MPEG, TS, TP, M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4 |
| Video Resolution | 1080P @60Hz |
| Audio File Format | MPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCM |
| Image File Format | JPEG, TIF, PNG, BMP |
| VIDEO Play Control | AUTO, REPEAT, ZOOM, RESUME, TIME |
| Transmitter - IR Remote Control | Yes |
| Power - Electrical Ratings | 110V AC (50/60Hz) - 24V DC |
| Power - Consumption | 0.5 A (50W) - 2.0 A (50W) |
| Warranty - Parts / Labor | 3 Year / 3 Year |
| Warranty - MTBF (Approx.) | 50,000 Hours |
| Operating Temperature | 32 - 104°F / 0 - 40°C |
| Compatible Mounts - Wall | VZ-WM05, VZ-WM11, VZ-AM01 |
| Compatible Mounts - Ceiling | VZ-CM06, VZ-CM18, VZ-CMKiT-01, VZ-CMKiT-02, VZ-CMK-02 |
