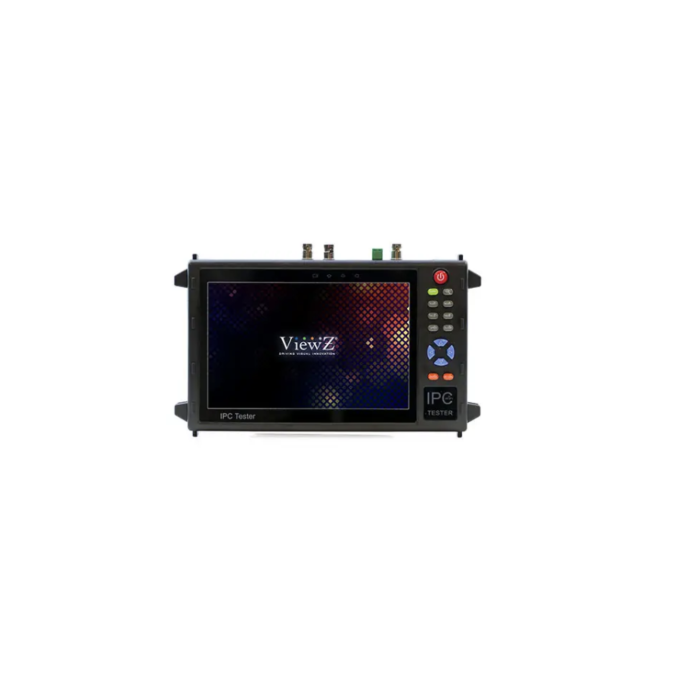

ViewZ VZ-7IPTM 7″ Touchscreen IP & Hybrid CCTV Camera Tester Monitor
*Please note tariff fee is included in price*
ViewZ VZ-7IPTM is a 7″ IPS touchscreen IP & hybrid CCTV camera tester with ONVIF + 8MP AHD/TVI/CVI + EX-SDI/3G-SDI support, Wi-Fi, 8K H.265 display, 4K HDMI in/out, PoE output, and 16-hour battery for on-site camera install and service.
The ViewZ VZ-7IPTM is a professional 7-inch touchscreen IP & hybrid camera tester built for fast on-site installation, maintenance, and troubleshooting of modern surveillance systems. With ONVIF tools, IP discovery, RTSP playback, IPC test, and client APK support, technicians can validate streaming, configuration, and network performance from a single handheld platform—without dragging a laptop into the field.
Designed for mixed environments, the VZ7IPTM supports 8MP coax formats (AHD/TVI/CVI/CVBS) plus HD-SDI/3G-SDI/EX-SDI, and adds Wi-Fi monitoring, video recording/playback/screenshots, and a robust set of network diagnostics (ping, IP scan, port flash, DHCP server, traceroute). Power tools are equally strong: 48V PoE output, DC 12V/24V outputs, and a 16-hour lithium battery keep teams productive all day. NDAA compliant for compliant deployments.
Features:
- 7″ IPS touchscreen with 1280×800 @60Hz
- IP camera testing: ONVIF, IP Discovery, IPC Test, RTSP Play, Client APK
- Hybrid camera support: 8MP AHD / TVI / CVI / CVBS
- SDI support: HD-SDI / 3G-SDI / EX-SDI
- 8K H.265 video display (plus 4K H.265/H.264 support per modes)
- HDMI I/O: HDMI In 4K@30, HDMI Out 4K@60
- Wi-Fi built in (150M) for wireless camera viewing
- Rapid Video auto-view + testing report creation
- Record / playback / screenshots for documentation and handoff
- Network diagnostics: ping, IP scan, port flash, DHCP server, traceroute, link monitor
- PoE test + power out: 48V PoE, DC 24V 2A, DC 12V 3A outputs
- RS485 PTZ control (600–115200 bps; multi-protocol support)
- Cable tests: UTP status + RJ45 TDR (up to 800m)
- 16-hour battery (7.6V 7800mAh), rechargeable/replaceable
- NDAA compliant, CE/FCC/RoHS listed (per provided spec)
Applications:
- Camera install
- Field service
- System commissioning
- IP diagnostics
- Hybrid upgrades
- PoE validation
- PTZ setup
- Cable tracing
- NVR verification
| Screen Size | 7" |
| Max. Resolution | 1280 x 800 @ 60Hz |
| Pixel Pitch | 0.264 mm x 0.264 mm |
| Aspect Ratio | 5 : 4 |
| Display Color | 16.7 Million |
| HD/EX-SDI | 1 |
| AHD/TVI/CVI/CVBS In | 1 |
| CVBS Out | 1 |
| HDMI In / Out | 1 / 1 |
| RS485 (PTZ Control) | 1 |
| Micro SD Int | 1 |
| Audio In / Out | 1 / 1 |
| Ethernet 10/100/1000 with P.o.E. In / Out | 1 / 1 |
| UTP | 1 |
| DC 5V (2A) Out – USB Type | 1 |
| DC 12V (2A) In / Out | 1 |
| Outline Dimension (W x H x D) | 9.09” x 6.77” x 2.05” / 230.866 mm x 171.95 mm × 52.07 mm |
| Net Weight | 1.95 lbs / 884 g |
| P.o.E. Injector | 48V/15W Output |
| Power – Electrical Ratings | DC 12V, 2A |
| Power – Full Charging Time | 5 to 6 Hours |
| Power Saving Mode | Working, Standby & Shutdown |
| Operating Temperature | Humidity | 14°F ~ 114°F / -10°C ~ 45°C | 30 ~ 70% RH |
| Storage Temperature | -4°F ~ 158°F / -20°C ~ 70°C |
| Battery – Capacity | 7.4V 5400mAh |
| Battery – Type | Replaceable Lithium Polymer Battery |
| Battery – Operation Time | 10 Hours |
| Warranty – Parts/Labor | 2 Year / 2 Year |
| Language | English, Chinese,Korean,Russian, Italian, French,Polish,Spainish, Japanese |
| Accessories | VZ-70ISM x 1, US 12v DC Charger x 1, Audio Tester Lead x 1, RJ45 Cable Tester x 1, Carrying Strap x 3, BNC to BNC Cable x 1, RS485 Cable Test Lead x 1, Carrying Bag x 1, 12V Power Output Cable x1, User Manual x 1 |
| Ethernet Test | IPC test / IPC viewer / Rapid video / RTSP /ONVIF |
| ONVIF camera Test | Support 2592*1520, Network PTZ controller (ONVIF) |
| Rapid Video | Auto view the video, create testing report |
| IP& CVBS Test | At the same time ,converter test from analog to digital with dual test window name, password and IP parameters |
| Traffic Monitoring | Traffic monitoring of the tester “LAN port”, display network port or WIFI connection real-time upload and download speeds and other network parameters |
| TVI | 5MP TVI camera test, 2560x1944p 12.5FPS, UTC control/ call OSD menu |
| CVI | 4MP CVI camera test, 2560x1440p 25F/30F, UTC control d call OSD menu |
| AHD | 4MP AHD test, 2560x1440p 15F/25F/30F, UTC control d call OSD menu |
| HD SDI/EX-SDI | HD SDI/EX-SDI camera test, support 1080P 50/60 FPS |
| CVBS | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) |
| CVBS loop test | The tester send and receive color bar generator signal, check BNC cable |
| PD/PSE test | Measurement POE switch or PSE power supply voltage and cable connection status |
| Communication Interface | RS485 |
| Communication Protocol | PELCO-D/P, Samsung,Panasonic and over 30 Protocols |
| Baud Rate | 600 – 115200 bps |
| Audio Test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
