ViewZ VZ-55SNB 55” Super Narrow Bezel LED Video Wall Monitor

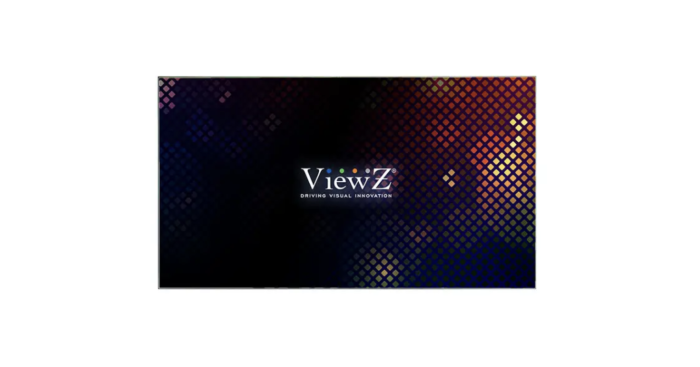

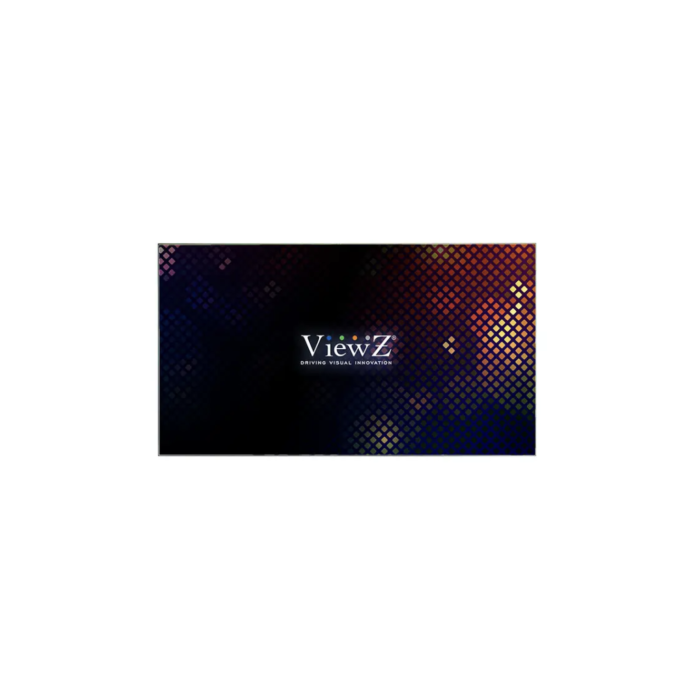

ViewZ VZ-55SNB 55″ Flat Panel Widescreen LED Monitor
In the realm of industrial and machine vision applications, precision and reliability are paramount. The ViewZ VZ-55SNB 55" Flat Panel Widescreen LED Monitor stands tall as a beacon of quality, offering unrivaled clarity and performance. Its full HD 1080p resolution and 700 nits brightness ensure that every detail is captured with stunning clarity, even in the most demanding environments.
This commercial-grade monitor features an extreme-narrow 0.9 mm metal bezel, providing a virtually seamless viewing experience across multiple screens. With support for 4K resolution and HDCP 1.4/2.2, it delivers uncompromising image quality, making it ideal for use in surveillance and industrial settings.
Connectivity options abound, including HDMI, DVI-D, DP, and VGA inputs, ensuring compatibility with a wide range of devices. The daisy chain system allows for seamless integration of multiple monitors, while advanced features such as auto source and power recovery enhance operational efficiency.
Designed to run 24/7/365, this monitor is built to withstand the rigors of continuous use. Backed by a 3-year warranty and NDAA compliant, it offers peace of mind and long-term reliability for industrial and machine vision applications.
Features:
- Full HD 1080p resolution
- Extreme-narrow 0.9 mm metal bezel
- 700 nits high brightness
- Supports 4K resolution and HDCP 1.4/2.2
- Daisy chain system for multi-monitor setups
- Advanced heat management for continuous operation
- Built-in 3D comb-filter and de-interlace for superior image quality
Applications:
- Factory automation
- Quality control inspection
- Robotics guidance
- Intelligent transportation systems
- Medical imaging
- Surveillance and security
| Screen Size | 55" |
| Max. Resolution | 1920 x 1080 @ 60Hz |
| Pixel Pitch | 0.630 mm x 0.630 mm |
| Brightness | 500cd/m²(Typical) |
| Contrast Ratio | 1100 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 1.06 B (10 Bit) |
| Response Time | < 8ms |
| VGA In (15Pin D-Sub) | 1 |
| DP In | 1 |
| DVI-D In | 1 |
| HDMI 1 In | 1 |
| HDMI 2 In / Out (Daisy Chain) | 1/2 |
| USB In (Upgrade) | 1 |
| RS232 (RJ-45) In | 1 (Serial Control / IR Receiver) |
| RS232 (RJ-45) Out | 2 (Serial Control) |
| Audio Out | 1 |
| HDMI (2.0) In | 3840 x 2160 @ 60Hz |
| HDMI (2.0) In/Out | 3840 x 2160 @ 60Hz |
| DP In | 3840 x 2160 @ 60Hz |
| DVI-D In | 3840 x 2160 @ 60Hz |
| VGA In | 1920 x 1080 @ 60Hz |
| Bezel Width – TOP and LEFT Side | 0.017” / 0.44 mm |
| Bezel Width – BOTTOM and RIGHT Side | 0.017” / 0.44 mm |
| Bezel Width – ACTIVE to ACTIVE AREA | 0.034” / 0.88 mm (Bezel to Bezel) |
| Advanced Anti-Image Residual Correlation | Support |
| 3D Comb Filter | Support |
| Language | English, Spanish, French and Portuguese |
| Outline Dimension (W x H x D) | 47.72” x 26.89” x 4.69” / 1212.26 mm x 683.06 mm x 119.35 mm |
| Net Weight | 65.91 lb / 29.9 kg |
| Gross Weight | 88.18 lb / 40.0 kg |
| Vesa | 600 x ( 100 x 4 ) mm / M8 x L10 mm |
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | AC 100-240V, 50/60Hz |
| Power – Consumption | 250 W (Max) / 0.5 W (Standby) |
| Regulations | FCC(A), RoHS |
| Operating Temperature | Humidity | 32°F ~ 120°F / 0°C ~ 50°C | 20% ~ 80% RH |
| Storage Temperature | 32°F ~ 140°F / 0°C ~ 60°C |
| Compatible Mounts – Wall | VZ-XMS, VZ-WM71 |
| Compatible Mounts – Ceiling | VZ-CMKiT-04 |
| Compatible Mounts – Free Standing Mount | VZ-FSM2x2, VZ-FSM3x2 |
| Package Includes | Manual x 1, Power Cable x 1, HDMI Cable x 1, CAT5 Cable x 1, Converter (RJ45 to RS232) x 1, Remote Control x 1, IR Receiver x 1 |
