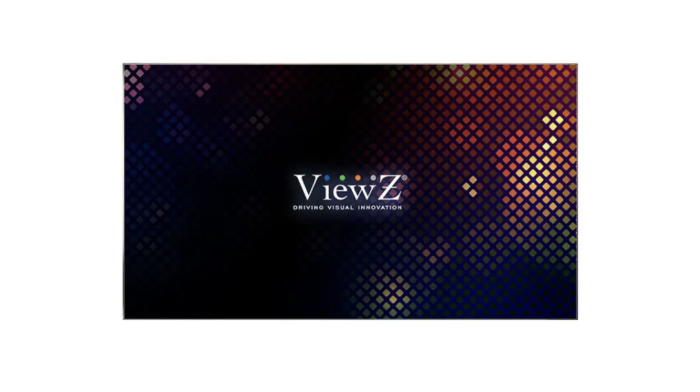

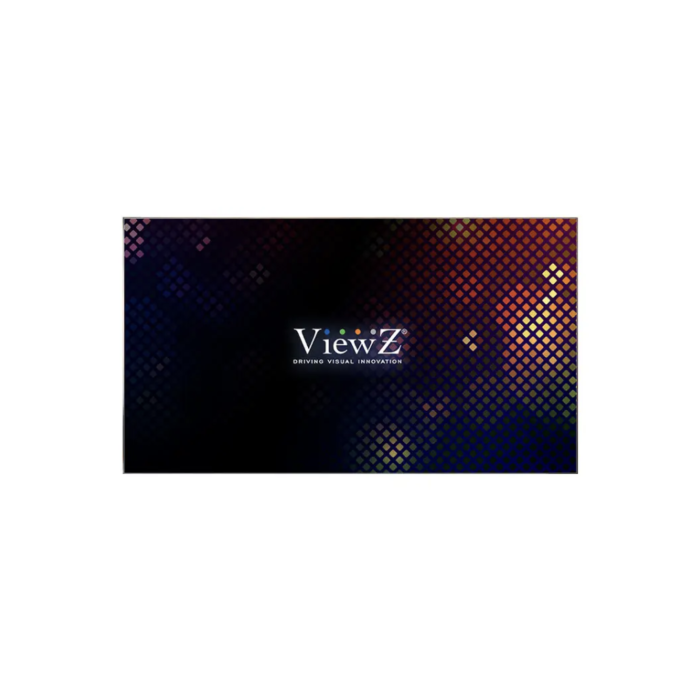

ViewZ VZ-55SHB 55” Super Narrow Bezel High Brightness LED Video Wall Monitor
Unveiling the ViewZ VZ-55SHB 55″ Flat Panel Widescreen LED Monitor
The ViewZ VZ-55SHB 55″ Flat Panel Widescreen LED Monitor is a cutting-edge solution tailored for industrial and machine vision applications. Boasting a remarkable 0.44mm bezel, this commercial-grade monitor offers stunning clarity and precision, perfect for detailed visual inspections and monitoring tasks. With a brightness rating of 700 nits and Full HD 1080p resolution, it ensures impeccable image quality even in challenging environments.
Equipped with versatile connectivity options including HDMI, DVI-D, DP, and VGA, along with HDMI daisy chaining capability, this monitor seamlessly integrates into existing setups. Its advanced heat management system ensures reliable performance around the clock, making it suitable for continuous 24/7 operation.
Ideal for industries requiring meticulous observation such as manufacturing, automotive, pharmaceuticals, and more, the ViewZ VZ-55SHB excels in delivering accurate visual data for quality control, inspection, and surveillance purposes. Backed by a robust 3-year warranty and compliant with NDAA regulations, it offers peace of mind and long-term reliability.
Features:
- Ultra-thin 0.44mm bezel
- High brightness (700 nits)
- Full HD 1080p resolution
- HDMI daisy chain capability
- Advanced heat management system
- 24/7 operation
- NDAA compliant
- 3-year warranty
Applications:
- Manufacturing quality control
- Automotive inspection
- Pharmaceuticals monitoring
- Surveillance systems
| Screen Size | 55" |
| Max. Resolution | 1920 x 1080 @ 60Hz |
| Pixel Pitch | 0.630 mm x 0.630 mm |
| Brightness | 700cd/m²(Typical) |
| Contrast Ratio | 3500 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 1.06 B (10 Bit) |
| Response Time | < 8ms |
| VGA In (15Pin D-Sub) | 1 |
| DP In | 1 |
| DVI-D In | 1 |
| HDMI 1 In | 1 |
| HDMI 2 In / Out (Daisy Chain) | 1/2 |
| USB In (Upgrade) | 1 |
| RS232 (RJ-45) In | 1 (Serial Control / IR Receiver) |
| RS232 (RJ-45) Out | 2 (Serial Control) |
| Audio Out | 1 |
| HDMI (2.0) In | 3840 x 2160 @ 60Hz |
| HDMI (2.0) In/Out | 3840 x 2160 @ 60Hz |
| DP In | 3840 x 2160 @ 60Hz |
| DVI-D In | 3840 x 2160 @ 60Hz |
| VGA In | 1920 x 1080 @ 60Hz |
| Bezel Width – TOP and LEFT Side | 0.017” / 0.44 mm |
| Bezel Width – BOTTOM and RIGHT Side | 0.017” / 0.44 mm |
| Bezel Width – ACTIVE to ACTIVE AREA | 0.034” / 0.88 mm (Bezel to Bezel) |
| Advanced Anti-Image Residual Correlation | Support |
| 3D Comb Filter | Support |
| Language | English, Spanish, French and Portuguese |
| Outline Dimension (W x H x D) | 47.72” x 26.89” x 4.69” / 1212.26 mm x 683.06 mm x 119.35 mm |
| Net Weight | 65.91 lb / 29.9 kg |
| Gross Weight | 88.18 lb / 40.0 kg |
| Vesa | 600 x ( 100 x 4 ) mm / M8 x L10 mm |
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | AC 100-240V, 50/60Hz |
| Power – Consumption | ≤ 180 W (Max) / 0.5 W (Standby) |
| Regulations | FCC(A), RoHS |
| Operating Temperature | Humidity | 32°F ~ 120°F / 0°C ~ 50°C | 20% ~ 80% RH |
| Storage Temperature | 32°F ~ 140°F / 0°C ~ 60°C |
| Compatible Mounts – Wall | VZ-XMS, VZ-WM71 |
| Compatible Mounts – Ceiling | VZ-CMK04, VZ-CMKiT-04 |
| Package Includes | AC110V Power Cable x 1, HDMI Cable x 1, Manual x 1, CAT5 Cable (RS232) x 1, Remote Controller x 1, IR Receiver x 1, Converter (RJ45 to RS232) x 1 |
