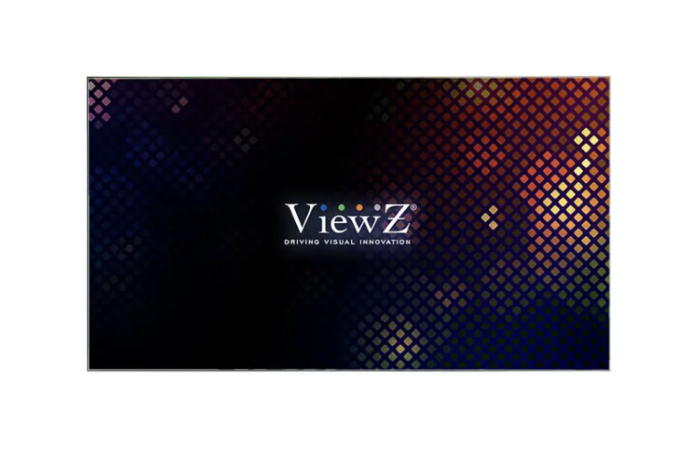

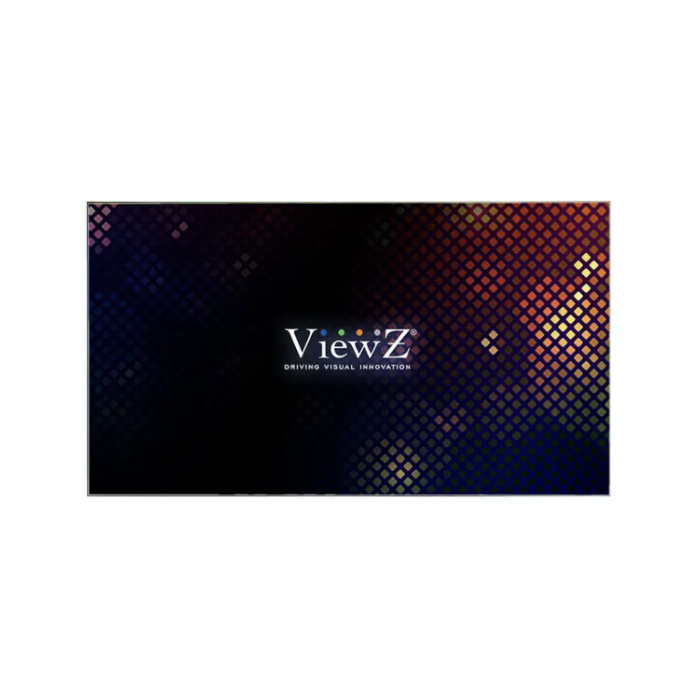

ViewZ VZ-55ENB 55" Ultra-Narrow Bezel 0.9mm LED Video Wall Monitor
*Please note tariff fee is included in price*
ViewZ VZ-55ENB 55" ultra-narrow 0.9mm bezel IPS video wall monitor with Full HD 1080p, 4K input support, HDMI daisy chain up to 15×15, multi-window modes, 24/7/365, NDAA.
The ViewZ VZ-55ENB is a professional 55-inch video wall monitor engineered for security control rooms, corporate lobbies, and high-uptime digital signage where a seamless multi-screen canvas matters. Its extreme-narrow 0.9 mm metal bezel and IPS panel with 1.06B (10-bit) color produce brilliant, consistent Full HD imagery across tiled displays—minimizing distractions and maximizing content impact.
Built for integrators and 24/7 environments, the VZ-55ENB supports 4K input (up to 3840×2160) with HDCP 1.4/2.2, offers multi-window modes (PBP/PIP/Triple/Quad), and enables HDMI daisy chaining up to 15×15 for scalable deployments. With auto source/power recovery, advanced heat management, and NDAA compliance, it’s designed to stay online and stay consistent—day after day.
Features:
- SKU-first identification: VZ-55ENB (VZ55ENB) for fast sourcing and spec matching
- 0.9 mm metal bezel: near-seamless multi-panel video wall gaps
- IPS / 1.06B color (10-bit): consistent color and wide viewing angles (178°/178°)
- Full HD native: 1920×1080 @ 60Hz for sharp signage and surveillance layouts
- 4K input ready: up to 3840×2160 (HDMI 2.0 / DP 1.2 supported refresh rates)
- HDCP 1.4 / 2.2: protected content support for pro AV deployments
- HDMI daisy chain: up to 15×15 wall expansion (HDMI 2.0 In/Out)
- Multi-window modes: PBP, PIP, Triple, Quad for mixed-source monitoring
- Mullion compensation: cleaner visuals across bezel boundaries
- Auto power/source recovery: returns to operation after interruption
- Advanced heat management: built for continuous duty cycles
- 24/7/365 operation: commercial-grade uptime design
- 3-year warranty + NDAA compliant: deployment-ready for regulated environments
Applications:
- Video Walls
- Security Centers
- Control Rooms
- Digital Signage
- Retail Displays
- Corporate Lobbies
- Transportation Hubs
| Screen Size | 55" |
| Max. Resolution | 1920 x 1080 @ 60Hz |
| Pixel Pitch | 0.630 mm x 0.630 mm |
| Brightness | 500cd/m²(Typical) |
| Contrast Ratio | 3500 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 1.06 B (10 Bit) |
| Response Time | < 8ms |
| VGA In (15Pin D-Sub) | 1 |
| DP In | 1 |
| DVI-D In | 1 |
| HDMI 1 In | 1 |
| HDMI 2 In / Out (Daisy Chain) | 1/2 |
| USB In (Upgrade) | 1 |
| RS232 (RJ-45) In | 1 (Serial Control / IR Receiver) |
| RS232 (RJ-45) Out | 2 (Serial Control) |
| Audio Out | 1 |
| HDMI (2.0) In | 3840 x 2160 @ 60Hz |
| HDMI (2.0) In/Out | 3840 x 2160 @ 60Hz |
| DP In | 3840 x 2160 @ 60Hz |
| DVI-D In | 3840 x 2160 @ 60Hz |
| VGA In | 1920 x 1080 @ 60Hz |
| Bezel Width – TOP and LEFT Side | 0.035” / 0.9 mm |
| Bezel Width – BOTTOM and RIGHT Side | 0.035” / 0.9 mm |
| Bezel Width – ACTIVE to ACTIVE AREA | 0.070” / 1.8 mm (Bezel to Bezel) |
| Advanced Anti-Image Residual Correlation | Support |
| Language | English, Spanish, French and Portuguese |
| Outline Dimension (W x H x D) | 47.72” x 26.89” x 4.69” / 1212.26 mm x 683.06 mm x 119.35 mm |
| Net Weight | 65.91 lb / 29.9 kg |
| Gross Weight | 88.18 lb / 40.0 kg |
| Vesa | 600 x ( 100 x 4 ) mm / M8 x L10 mm |
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | AC 100-240V, 50/60Hz |
| Power – Consumption | ≤ 180 W (Max) / 0.5 W (Standby) |
| Regulations | FCC(A), RoHS |
| Operating Temperature | Humidity | 32°F ~ 120°F / 0°C ~ 50°C | 20% ~ 80% RH |
| Storage Temperature | 32°F ~ 140°F / 0°C ~ 60°C |
| Compatible Mounts – Wall | VZ-XMS, VZ-WM71 |
| Compatible Mounts – Ceiling | VZ-CMK04, VZ-CMKiT-04 |
| Package Includes | Manual x 1, Power Cable x 1, HDMI Cable x 1, CAT5 Cable x 1, Converter (RJ45 to RS232) x 1, Remote Control x 1, IR Receiver x 1 |
