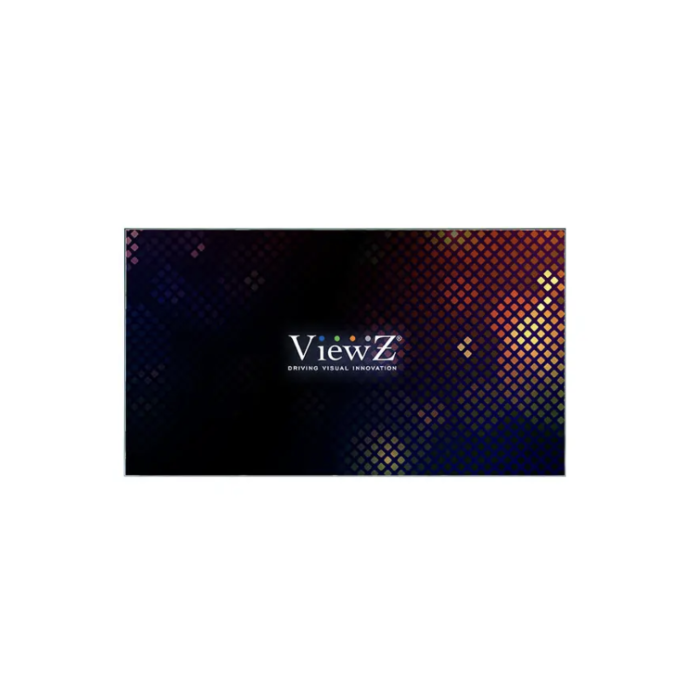

ViewZ VZ-49UNBS (VZ49UNBS) 49″ Black All Metal 1.2 mm Ultra-narrow Seamless Bezel Video Wall Monitor
ViewZ VZ-49UNBS Industrial Monitor: Seamless Display for Enhanced Machine Vision
The ViewZ VZ-49UNBS 49″ Black All Metal 1.2 mm Ultra-narrow Seamless Bezel Monitor is a cutting-edge solution tailored for industrial and machine vision applications. With a bezel thinner than 2 stacked quarters, this monitor offers a virtually seamless viewing experience, perfect for security video walls and multi-screen setups. Its full HD 1080p resolution, combined with support for 4K (3840×2160), ensures crisp and detailed imagery, essential for precision tasks.
Connectivity options abound with HDMI (2.0), DVI-D, DP, and VGA inputs, along with a daisy chain system for enhanced flexibility. Designed for continuous operation, it features advanced heat management technology, making it ideal for 24/7 use in demanding environments. Additionally, it complies with NDAA regulations, providing peace of mind for security-conscious users.
Applications for this monitor span across various industries, including manufacturing, quality control, and security surveillance. Whether monitoring production lines, inspecting product quality, or enhancing surveillance systems, the ViewZ VZ-49UNBS excels in delivering exceptional performance and reliability.
Backed by a 3-year warranty, this monitor offers not just seamless display but also long-term durability, making it a valuable asset for any industrial or machine vision setup seeking uncompromising quality and performance.
Features:
- Ultra-narrow 1.2 mm metal bezel
- Full HD 1080p resolution with 4K support
- Multiple connectivity options: HDMI, DVI-D, DP, VGA
- Daisy chain system for flexible multi-screen setups
- Advanced heat management for 24/7 operation
- NDAA compliant for enhanced security assurance
- 3-year warranty for long-term peace of mind
Applications:
- Security video walls
- Manufacturing process monitoring
- Quality control inspection
- Surveillance systems optimization
- Precision tasks requiring detailed imagery
| VIDEO | |
| Screen Size | 49" |
| Max. Resolution | 1920 x 1080 @60Hz |
| Active Display Area (H/V) | 0.55926 mm x 0.55926 mm |
| Brightness | 450cd/m² (Typical) |
| Contrast Ratio | 1200:1 |
| Aspect Ratio | 16 : 9 (1.78 : 1) |
| Viewing Angle (H/V) | 178° / 178° |
| Display Color | 1.06 B (10 Bit) |
| Response Time | < 8 ms |
| Active Display Area (H x V) | 1073.8 mm × 604.0 mm |
| INTERFACE | |
| VGA In (15Pin D-Sub) | 1 |
| DP In | 1 |
| DVI-D In | 1 |
| HDMI 1 In | 1 |
| HDMI 2 In / Out (Daisy Chain) | 1 / 2 |
| USB In (Upgrade) | 1 |
| RS-232 (RJ-45) In | 1 (Serial Control / IR Receiver) |
| RS-232 (RJ-45) Out | 2 (Serial Control) |
| Audio Out | 1 |
| SUPPORT REFRESH RATE | |
| HDMI (2.0) In | 3840 x 2160 @ 60Hz |
| HDMI (2.0) In/Out | 3840 x 2160 @ 60Hz |
| DP In | 3840 x 2160 @ 60Hz |
| DVI-D In | 3840 x 2160 @ 60Hz |
| VGA In | 1920 x 1080 @ 60Hz |
| SPECIAL FEATURES | |
| Bezel Width – TOP and LEFT Side | 0.090” / 2.3 mm |
| Bezel Width – BOTTOM and RIGHT Side | 0.047” / 1.2 mm |
| Bezel Width – ACTIVE to ACTIVE AREA | 0.137” / 3.5 mm (Bezel to Bezel) |
| Advanced Anti-Image Residual Function | Support |
| 3D Comb filter | Support |
| Language | English, Spanish, French and Portuguese |
| DIMENSIONS & WEIGHT | |
| Outline Dimension (WxHxD) | 42.42” x 23.92” x 4.64” / 1077.58 mm x 607.8 mm x 118 mm |
| Net Weight | 54.89 lb / 24.5 kg |
| Gross Weight | 74.73 lb / 33.9 kg |
| MOUNT | |
| Vesa | 600 x (100 x 4) mm / M6 x L10 screws |
| GENERAL | |
| Transmitter - IR Remote Control | Yes |
| Power – Electrical Ratings | AC 100-240V, 50/60Hz |
| Power – Consumption | ≤ 140 W (Max) / 0.5 W (Standby) |
| Regulations | FCC(A), RoHS |
| Operating Temperature | Humidity | 32°F ~ 122°F / 0°C ~ 50°C | 20% ~ 80% RH |
| Storage Temperature | Humidity | 32°F ~ 140°F / 0°C ~ 60°C |
| Compatible Mounts - Wall | VZ-XMS, VZ-WM71 |
| Compatible Mounts - Ceiling | VZ-CMK04, VZ-CMKiT-04 |
| Accessories | AC110V Power Cable x 1, HDMI Cable x 1, Manual x 1, CAT5 Cable (RS232) x 1, Remote Controller x 1, IR Receiver x 1, Converter (RJ45 to RS232) x 1 |
