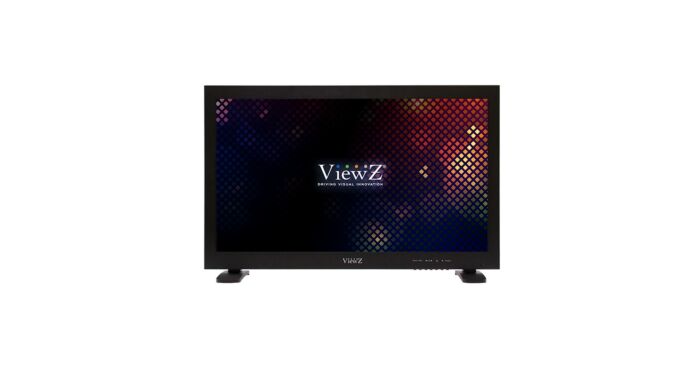

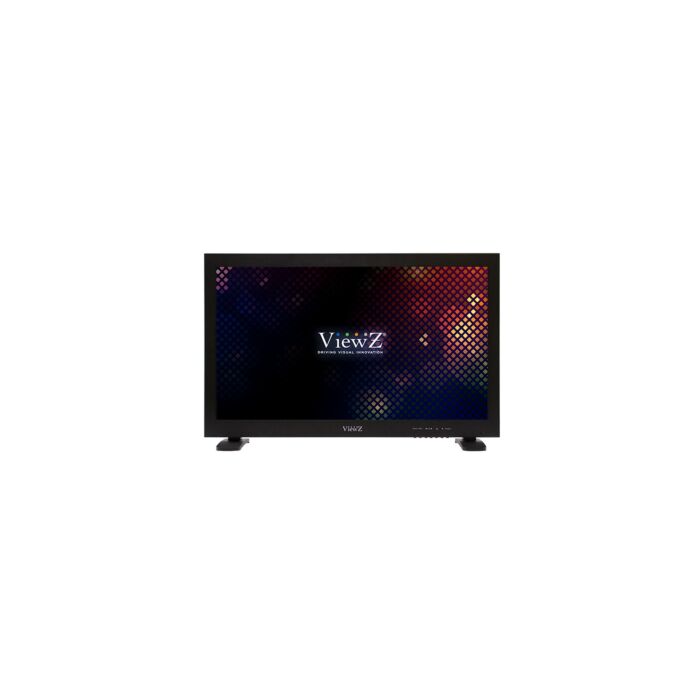

ViewZ VZ-32HX (VZ32HX) 32″ Hybrid Premium LED CCTV Monitor
Premium Metal Bezel Hybrid Full HD LED CCTV Monitor for Professional Security
SKU
VZ-32HX
Full HD 1080p Premium Metal Bezel CCTV LED Monitor
Features:
Applications:
| Screen Size | 32" |
| Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.36375mm x 0.36375mm |
| Brightness | 250cd/m²(Typical) |
| Contrast ratio | 4000:1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° (CR > 10) |
| Display Color | 16.7 Million |
| Response Time | < 6.5ms |
| AV (AHD, TVI, CVI) In / Out | 1 / 1 |
| AV (CVBS) In / Out | 1 / 1 |
| HDMI In | 1 |
| VGA In (15Pin D-Sub) | 1 |
| USB In (Media Player) | 1 |
| PC Audio In / AV Audio In | 1 / 1 |
| Built-in Speakers | 5 W x 2 |
| Filter Type | 3D Comb Filter / De-Interlace |
| Image Retention | Support |
| Hybrid Input - AHD, TVI, CVI | Support |
| Multi-Lingual Language | English, Deutsch, French, Spanish, Italian |
| External Storage | Support SD CARD (Max.64GB), USB (2TB) |
| VIDEO Format | RM, RMVB, AVI, DVIX, MKV, MOV, HDMOV, MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT, MPEG, TS, TP, M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4 |
| AUDIO Format | MPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCM |
| Image Format | JPEG, TIF, PNG, BMP |
| VIDEO Resolution | 1080P @60Hz |
| Outline Dimension (W x H x D) | 29.92" x 19.63" x 7.08" - 760.0mm x 498.8mm x 180mm |
| Net Weight / Gross Weight | 27.62 lbs ( 12.53 kg ) / 34.43 lbs ( 15.62 kg ) |
| VESA | 200mm x 200mm / 4 x ( M6 x L8 ) screws |
| Transmitter - IR Remote Control | Yes |
| Power - Electrical Ratings | AC100 ~ 240V(50/60Hz) |
| Power - Consumption | ≤ 48W |
| Regulations | FCC(A), CE, WEEE |
| Operating Temperature | 14 - 122°F / -10°C - 50°C | 20 ~ 70% RH |
| Compatible Mounts - Wall | VZ-WM50, VZ-AM02-A |
| Compatible Mounts - Ceiling | VZ-CMKiT-01, VZ-CMKiT-02 |
