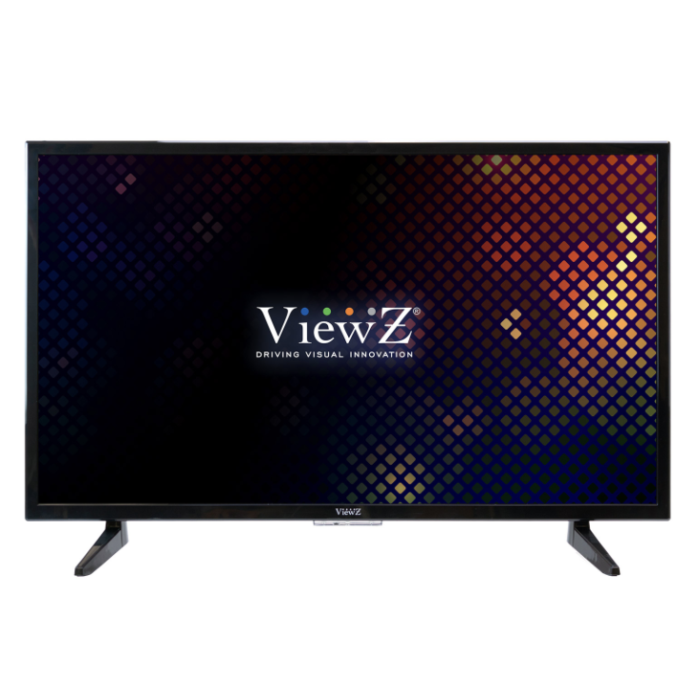

ViewZ VZ-32CMP 32″ Black Panel Widescreen LED “A” Commercial-Grade Monitor
Premium Features of ViewZ VZ-32CMP 32″ Commercial-Grade Monitor
Immerse yourself in cutting-edge display technology with the ViewZ VZ-32CMP 32″ Black Panel Widescreen LED Commercial-Grade Monitor. Boasting a 1920 x 1080 resolution at 60Hz, this industrial monitor is tailored for machine vision applications requiring precision and clarity. The 32-inch screen offers a generous viewing area, while the 178°/178° viewing angle ensures optimal visibility from various perspectives.
Connectivity is seamless with HDMI, VGA, and USB interfaces, catering to diverse industrial setups. The built-in 5W x 2 speakers enhance audio functionality. The monitor's multi-lingual support and 3D Comb-filter add versatility and sophistication to your user experience.
This monitor is VESA mountable, providing flexibility in installation. The included IR remote control facilitates convenient operation. With a robust build conforming to FCC, CE, and RoHS regulations, this ViewZ monitor ensures reliability and compliance.
Features:
- Full HD 1080p Resolution
- 2 AV(Composite) Inputs / 1 Output (Loop-through)
- 16:9 / 4:3 Ratio Available
- Built-in Media Player
- Auto Source & Power Recovery
- AC 100-240V, 50/60Hz (with DC Adaptor) & DC 24V (2.7 A)
- HDMI, VGA, Audio In/Out
- 3D Comb-Filter, De-Interlace, Built-in Speakers
- Built to run 24/7/365
- 3-Year Warranty
- NDAA Compliant
Applications:
- Machine Vision Systems
- Control Room Displays
- Quality Control Inspection
- Manufacturing Process Monitoring
- Surveillance and Security
- Scientific Research
- Automation and Robotics
- Training Simulators
- Digital Signage
- Industrial Testing and Measurement
| Screen Size | 32" |
| Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.36375mm x 0.36375mm |
| Brightness | 250cd/m²(Typical) |
| Contrast ratio | 1200:1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7 Million |
| Response Time | < 8ms |
| CVBS (BNC) In / Out | 1 / 1 |
| HDMI In | 1 |
| Audio In / Out | 1 |
| USB In | 1 |
| Built In Speaker | 5W x 2 |
| Filter Type | 3D Comb-filter / De-Interlace |
| Multi-Lingual Language | English, Deutsche, French, Spanish, Italian |
| Outline Dimension (W x H x D) | 28.94” x 17.06” x 2.72” / 735.08 mm x 433.46 mm x 69.3 mm |
| Net Weight | 12.78 lbs / 5.8 kg |
| Gross Weight | 15.43 lbs / 7.0 kg |
| Vesa | 200 mm x 100 mm / 4 x (M6 x L8 mm) |
| Support Type | Photo, Music, Video |
| External Storage | Support USB 2.0 HOST |
| VIDEO Resolution | 1080P @60/50Hz, 1080i @60/50Hz, 720P @60/50Hz |
| VIDEO Format | RM, RMVB, AVI, DVIX, MKV, MOV, HDMOV, MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT, MPEG, TS, TP, M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4 |
| Image Format | JPEG, TIF, PNG, BMP |
| AUDIO Format | MPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCM |
| VIDEO Play Control | AUTO, REPEAT, ZOOM, RESUME, TIME |
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | AC 100-240V, 50/60Hz (with DC Adaptor), DC 24V / 2.7 A |
| Power – Consumption | ≤ 50 w |
| Regulations | FCC(A), CE, RoHS |
| Operating Temperature | Humidity | 14°F ~ 122°F / -10°C ~ 50°C | 20 ~ 70% RH |
| Compatible Mounts – Wall | VZ-WM50, VZ-AM02-A |
| Compatible Mounts – Ceiling | VZ-CMKiT-01, VZ-CMKiT-02, VZ-CM308 |
