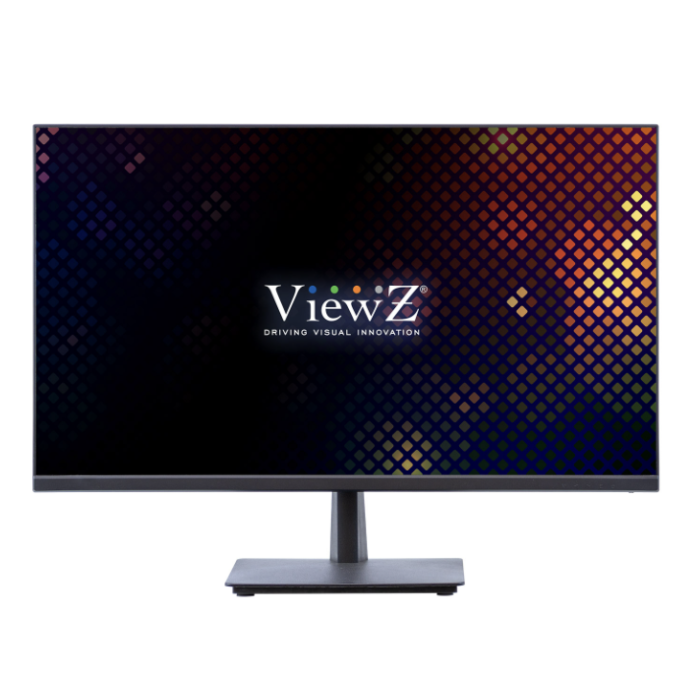

ViewZ VZ-32CMP Front View

ViewZ VZ-32CMP 32″ Black Panel Widescreen LED “A” Commercial-Grade Monitor

ViewZ VZ-27CMP 27″ Full HD LED AV Monitor

Experience precision with the ViewZ VZ-27CMP 27" Full HD LED AV Monitor. NDAA compliant, 1080p, and versatile connectivity for industrial excellence. Elevate your vision—explore now!

Discover the ViewZ VZ-27CMP 27" Full HD LED AV Monitor

Unleash the power of precision with the ViewZ VZ-27CMP, a 27-inch Full HD LED AV Monitor designed for industrial and machine vision applications. With a crystal-clear 1080p resolution, this eco-friendly CCTV display ensures detailed imaging crucial for professional security and digital signage.

Equipped with HDMI, VGA, and CVBS(BNC) inputs, the monitor offers versatile connectivity, making it compatible with various industrial devices. The 16:9/4:3 ratio, 3D Comb-Filter, and de-interlace features guarantee optimal visual performance. Its robust build, capable of running 24/7, coupled with NDAA compliance, ensures reliability and security.

The ViewZ VZ-27CMP comes with a range of features, including auto source and power recovery, built-in speakers, and an IR remote control for convenient operation. With a 3-year warranty and compliance with FCC(A), CE, and RoHS regulations, it's a trustworthy choice for demanding industrial environments.


  • Full HD 1080p Resolution
  • 1 CVBS(BNC) Input / Output (Loop-through)
  • 16:9 / 4:3 Ratio Available
  • Auto Source & Power Recovery
  • AC 100-240V, 50/60Hz (with DC Adaptor) & DC 24V (2 A)
  • HDMI, VGA, PC/AV Audio
  • 3D Comb-Filter, De-Interlace, Built-in Speakers
  • Built to run 24/7/365
  • 3-Year Warranty
  • NDAA Compliant


  • Industrial Machine Vision
  • Professional Security
  • Digital Signage
  • Eco-friendly CCTV
  • 24/7 Operations
  • Compliance with NDAA Standards
Screen Size 27"
Resolution 1920 x 1080 @60Hz
Pixel Pitch 0.3114 mm x 0.3114 mm
Brightness 250cd/m²(Typical)
Contrast ratio 1000:1
Aspect Ratio 16 : 9
Viewing Angle (H/V) 178°/178°
Display Color 16.7 Million
Response Time < 8ms
CVBS (BNC) In / Out 1 / 1
VGA In (15Pin D-Sub) 1
Audio In 1
Built in speaker 2W x 2
Filter Type 3D Comb-filter / De-Interlace
Multi-Lingual Language English, Deutsche, French, Spanish, Italian
Outline Dimension (W x H x D) 24.17” x 18” x 1.69” / 541.4 mm x 457.26 mm x 43.0 mm
Net Weight 8.92 lbs / 4.05 kg
Gross Weight 12.34 lbs / 5.6 kg
Vesa 100 mm x 100 mm / M4 x L8 mm
Transmitter – IR Remote Control Yes
Power – Electrical Ratings AC 100-240V, 50/60Hz (with DC Adaptor), DC 24V / 2.0 A
Power – Consumption ≤ 30 w
Regulations FCC(A), CE, RoHS
Operating Temperature | Humidity 14°F ~ 122°F / -10°C ~ 50°C | 5 ~ 90% RH
Compatible Mounts – Wall VZ-AM02-A
Compatible Mounts – Ceiling VZ-CMKiT-01, VZ-CM308
