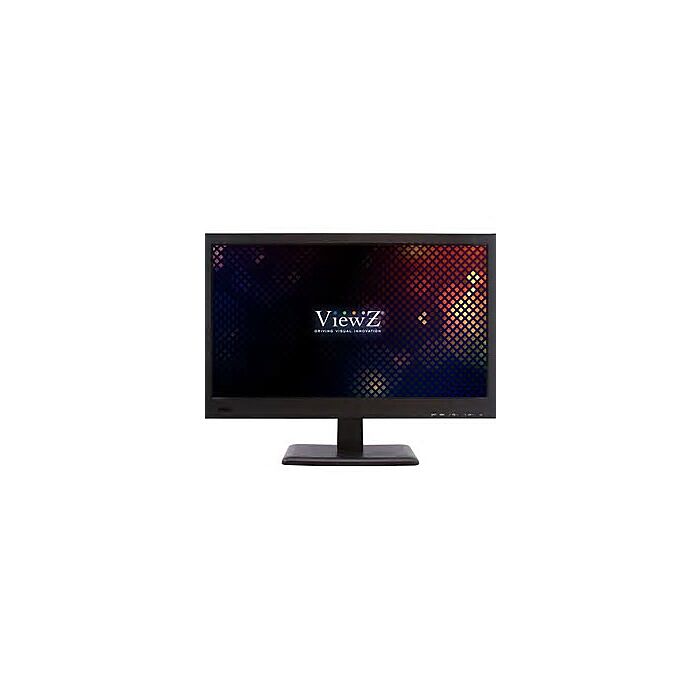

ViewZ VZ-24CMP (VZ24CMP) 23.6" LED CCTV Monitor
ViewZ VZ-24CMP 23.6" LED CCTV Monitor: Enhancing Industrial Visuals
The ViewZ VZ-24CMP 23.6" LED CCTV Monitor is a pinnacle of industrial visual enhancement, designed to meet the rigorous demands of industrial and machine vision applications. Boasting a 23.6" LED display with high-definition resolution, this monitor ensures crisp and clear visuals, essential for precision tasks in industrial environments. Its widescreen aspect ratio of 16:9 and a resolution of 1920 x 1080 provide ample screen real estate for detailed image reproduction, allowing users to monitor processes with utmost clarity.
Connectivity is key in industrial settings, and the VZ-24CMP doesn't disappoint. Equipped with multiple inputs including BNC, HDMI, and VGA, it offers versatile connectivity options to suit various industrial setups. Whether integrating with CCTV systems or machine vision cameras, this monitor provides seamless compatibility and flexibility.
User-friendly features such as the multi-language OSD (On-Screen Display) facilitate intuitive control and configuration, ensuring ease of use for operators across different regions. Additionally, its rugged design and robust construction make it well-suited for harsh industrial environments, guaranteeing reliable performance even in challenging conditions.
Backed by a comprehensive 3-year warranty, the ViewZ VZ-24CMP delivers not just exceptional visuals but also peace of mind, assuring users of its long-term reliability and durability. Upgrade your industrial monitoring setup with the ViewZ VZ-24CMP 23.6" LED CCTV Monitor and experience superior performance in machine vision and surveillance applications.
Features:
- High-definition 23.6" LED display
- Versatile connectivity with BNC, HDMI, and VGA inputs
- Multi-language OSD for intuitive control
- Rugged design with a 3-year warranty
Applications:
- Machine vision systems
- Factory automation
- Quality control inspections
- Surveillance systems
- Industrial process monitoring
| Screen Size | 23.6" |
| Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.2767mm x 0.2767mm |
| Brightness | 300cd/m²(Typical) |
| Contrast ratio | 1000:1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 170°/160° |
| Display Color | 16.7 Million |
| Response Time | < 5ms |
| Frequency (H) | 30 ~ 80Khz |
| Frequency (V) | 50 ~ 75Hz |
| AV (Composite) In / Out | 2 / 1 |
| RGB In (15pin D-Sub) | 1 |
| DVI in | 1 |
| HDMI In | 1 |
| Audio In/Out | 1 / 1 |
| Built-in Speakers | 2.5 W x 2 |
| Multi-lingual Language | English, Spanish, French, Korean, German, Italian |
| Outline Dimension | 22.38” x 16.49” x 1.61” |
| (W x H x D) | (568.56 mm x 352.49 mm x 41 mm) |
| Net Weight | 8.81 lbs ( 4.0kg ) |
| Gross Weight | 11.46 lbs ( 5.2kg ) |
| VESA | 75mm x 75mm, (M4 x 10 Screws) |
| Transmitter - IR Remote Control | Yes |
| Power - Electrical Ratings | DC12V, 3.0A (AC100 ~ 240V[50/60Hz]) |
| Power - Consumption | 18W |
| Warranty - Parts / Labor | 3 Year / 3 Year |
| Warranty - MTBF (Approx.) | 50,000 Hours |
| Operating Temperature | 14 ~ 122°F / -10 ~ 50°C |
| Compatible Mounts - Wall | VZ-WM05, VZ-WM11, VZ-AM01 |
