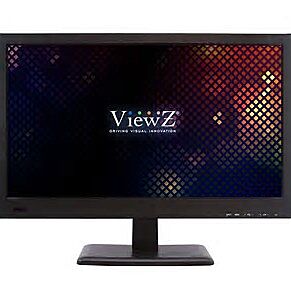

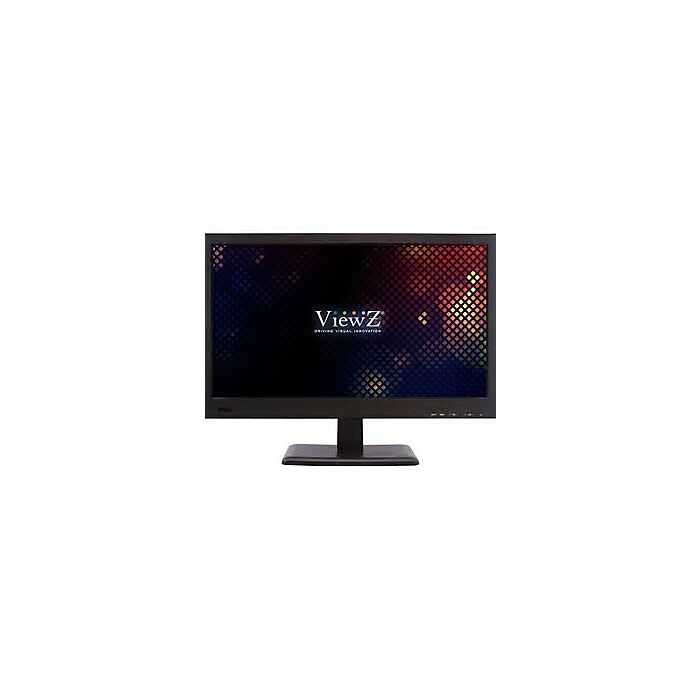

ViewZ VZ-19CMP 19.5" Full HD LED CCTV Monitor
*Please note tariff fee is included in price*
VZ-19CMP is a 19" 1080p professional CCTV monitor with BNC loop-through, HDMI/VGA, auto recovery, and 24/7/365 reliability—NDAA Compliant with a 3-year warranty.
The VZ-19CMP is a 19-inch Full HD (1920×1080 @60Hz) professional CCTV monitor built for 24/7/365 operation in security control rooms, retail environments, and digital signage deployments. Designed for reliability, it supports auto source & power recovery to help displays come back online after outages—ideal for always-on monitoring and unattended installations.
Connectivity is purpose-built for mixed legacy and modern systems, the VZ19CMP features CVBS (BNC) input with loop-through, plus HDMI and VGA for DVR/NVRs, PCs, and media players. Image processing features like 3D comb-filter and de-interlacing improve analog video clarity, while built-in 3W x 2 speakers, USB firmware upgrade, and a 3-year warranty round out a rugged, compliance-ready display solution (NDAA Compliant, FCC/CE/WEEE).
Features:
- Full HD 1080p (1920×1080 @60Hz) professional display
- CVBS (BNC) In/Out with loop-through for DVR/NVR monitoring chains
- HDMI + VGA inputs for hybrid security and PC/digital signage setups
- Auto Source & Power Recovery for unattended uptime
- 3D Comb-Filter + De-Interlace for cleaner analog video performance
- 19" 16:9 panel, 3000:1 contrast, 176°/176° viewing angles
- Built-in Speakers (3W x 2) with PC/AV audio input
- USB Firmware Upgrade port for maintenance and updates
- 24/7/365 duty-rated for continuous monitoring environments
- NDAA Compliant for government/compliance-driven deployments
- 3-Year Warranty for long-term reliability assurance
Applications:
- Security Monitoring
- Control Rooms
- Video Surveillance
- Digital Signage
- Retail Displays
- Facility Operations
- NVR Stations
- DVR Viewing
- Reception Screens
Display
| Screen Size | 19″ |
| Max Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.2265 mm x 0.2265 mm |
| Brightness | 200 cd/m²(Typical) |
| Contrast Ratio | 3000 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 176°/176° |
| Display Color | 16.7 Million |
| Response Time | < 25 ms |
Interface
| CVBS (BNC) In / Out | 1 / 1 |
| HDMI In | 1 |
| VGA In (15Pin D-Sub) | 1 |
| AV Audio In | 1 |
| USB In (Firmware Upgrade) | 1 |
Audio
| Built in speaker | 3W x 2 |
Special Features
| Filter Type | 3D Comb-filter / De-Interlace |
| Multi-Lingual Language | English, Deutsch, French, Spanish, Italian |
Dimensions & Weight
| Outline Dimension (W x H x D) | 18.42” x 13.38” x 1.92” / 467.9 mm x 339.9 mm x 49.0 mm |
| Net Weight | 8.37 lbs / 3.8 kg |
| Gross Weight | 9.25 lbs / 4.2 kg |
Mount
| Vesa | 100 mm x 100 mm / M4 x L8 mm |
General Summary
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | AC 100-240V, 50/60Hz (with DC Adaptor), DC 24V / 2.0 A |
| Power – Consumption | ≤ 24 w |
| Regulations | FCC(A), CE, NDAA, WEEE |
| Operating Temperature | Humidity | 14°F ~ 122°F / -10°C ~ 50°C | 20 ~ 70% RH |
| Compatible Mounts – Wall | VZ-WM05, VZ-WM11, VZ-AM01, VZ-AM02-A |
| Compatible Mounts – Ceiling | VZ-CMKiT-01 |
| Compatible Mounts – Rack | VZ-RMK08 |
