Vieworks VZ-5MU-M/C 79 H Industrial Digital Cameras with USB3.0 Interface
Cutting-Edge Vieworks VZ-5MU-M/C 79H USB3.0 Vision Camera
Aegis Electronic Group Inc. proudly presents the Vieworks VZ-5MU-M/C 79H, an advanced USB3.0 Vision camera designed to meet the rigorous demands of industrial and machine vision applications. Engineered with the high-performance Sony IMX250 CMOS sensor, this camera delivers exceptional image quality and sensitivity, crucial for precise imaging tasks in various sectors.

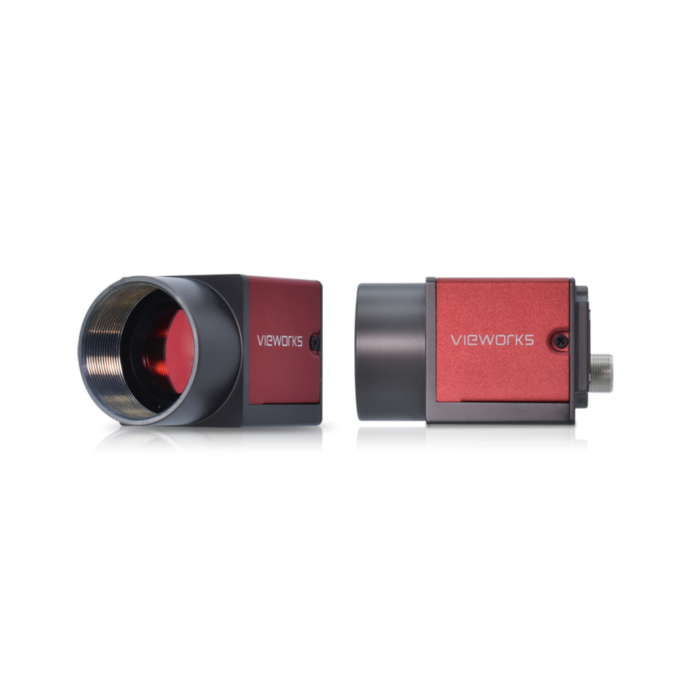

The VZ-5MU-M/C 79H boasts a remarkably compact design, measuring just 29㎜ x 29㎜ x 29㎜, making it ideal for installations where space is limited without compromising on robustness. Encased in a durable metal housing with secure locking screw connectors, it ensures reliability even in harsh industrial environments.
This camera supports industry-standard protocols like GenICam™ and USB3 Vision®, facilitating seamless integration into existing systems and software platforms. It offers advanced features such as programmable Look-Up Tables (LUTs), sequencer control for precise image capture sequencing, and extensive onboard memory with a 16KB data storage area and 512KB ROM for storing configurations and data files.
Ideal for industrial inspection, medical and scientific research, education, and security applications, the VZ-5MU-M/C 79H excels in capturing and processing high-quality images with adjustable parameters for exposure, gain, and white balance. Its versatility is enhanced by trigger modes (Frame Start / Frame Burst Start) and the capability to remove parameter limits, allowing users to adapt to diverse imaging requirements effortlessly.
Explore the Vieworks VZ-5MU-M/C 79H USB3.0 Vision camera today to discover how it can elevate your imaging solutions with its compact design, robust construction, and advanced imaging capabilities.
Features:
- Sony IMX250 CMOS sensor
- Compact 29㎜ x 29㎜ x 29㎜ design
- Robust metal housing with locking screw connectors
- GenICam™ and USB3 Vision® compatibility
- Programmable LUTs and sequencer control
- Extensive data storage capabilities
- Trigger modes: Frame Start / Frame Burst Start
Applications:
- Industrial inspection
- Medical research
- Scientific research
- Education
- Security
| Resolution (H × V) | 2448 x 2048 |
| Sensor | Sony IMX250 Global Shutter CMOS |
| Pixel Size | 3.45 ㎛ × 3.45 ㎛ |
| Data Interface | USB 3.0 |
| Frame Rate | 79.1fps@2448 × 2048 |
| ADC Bit Depth | 10 bit |
| Pixel Bit Depth | 8 bit, 10 bit |
| Exposure Time | UltraShort: 1 ㎲~100 ㎲, Actual Steps: 1 ㎲ Standard: 20 ㎲ ~ 1 s, Actual Steps: 1 row period |
| Gain | 0dB ~ 24dB, Default: 0dB, Steps: 0.1dB |
| Mono/Color | Color Mono |
| Pixel Formats | Bayer RG8, Bayer RG10 Mono8, Mono10 |
| Single Noise Ratio | 40.58dB 40.65dB |
| Synchronization | Hardware trigger, Software trigger |
| I/O | 1 input and 1 output with opto-isolated, 2 programmable GPIOs |
| Temperature | Operating: 0℃ ~ 45℃, Storage: -20℃ ~ 70℃ |
| Operating Humidity | 10% ~ 80% |
| Power Requirements | 5 VDC via USB cable |
| Power Consumption | < 2.7W@5 VDC |
| Lens Mount | C |
| Dimensions and Weight | 29㎜ x 29㎜ x 29㎜ (without lens adapter or connectors), 65g |
| Progammable Control | Image size, Gain, Exposure time, Trigger polarity, Flash polarity |
| Conformity | CE, RoHS, FCC, GigE Vision, GenICam, KC |
