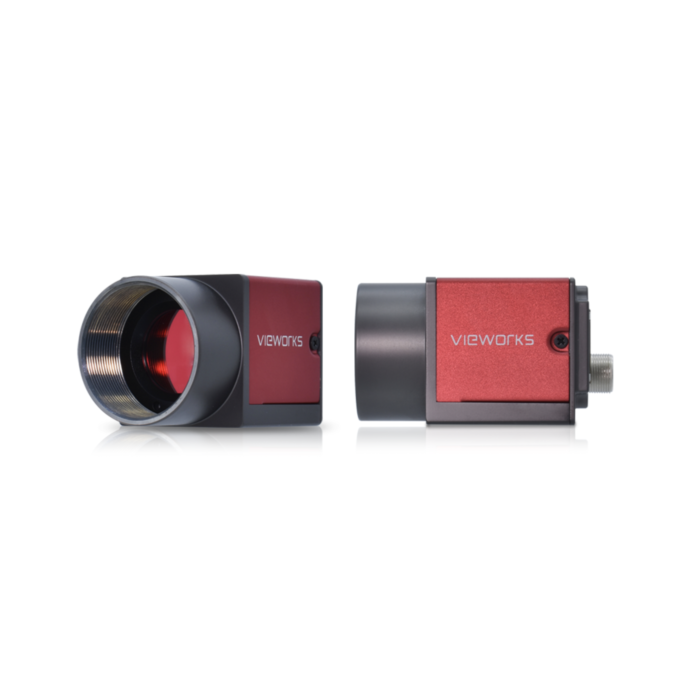

Vieworks VZ-5MU-M/C 36 H00 Industrial Digital Cameras with USB3.0 Interface
Vieworks VZ-5MU-M/C 36H: Unmatched Performance in Industrial Digital Cameras
Aegis Electronic Group Inc. proudly offers the Vieworks VZ-5MU-M/C 36H, a high-performance industrial digital camera designed to meet the rigorous demands of machine vision applications. Equipped with the advanced Sony IMX264 CMOS sensor, this camera ensures exceptional image quality and reliability. Its compact design (29mm x 29mm x 29mm), robust metal housing, and locking screw connectors make it a durable and versatile choice for various environments.
The VZ-5MU-M/C 36H excels in multiple applications, including industrial inspection, medical and scientific research, education, and security. With features such as programmable LUTs, user set control, sequencer control, and a 16KB data storage area for algorithm coefficients and parameter configurations, this camera offers unmatched flexibility and precision. Its compatibility with GenICam™ and USB3 Vision® standards ensures seamless integration with existing systems and software.
Ideal for professionals requiring high accuracy and efficiency, the VZ5MUM/C 36H supports storable user sets, timers, and counters, along with an expanded range of exposure, gain, and white balance settings. Whether you’re involved in detailed industrial inspections or cutting-edge medical research, this camera delivers the performance you need.
Features:
- Sony IMX264 CMOS sensor
- Compact design (29mm x 29mm x 29mm)
- Robust metal housing
- Locking screw connectors
- Programmable LUTs and user set control
- Sequencer control
- 16KB data storage area
- GenICam™ and USB3 Vision® compatibility
- Supports storable user sets, timers, and counters
- Expanded range of exposure, gain, and white balance settings
Applications:
- Industrial inspection
- Medical research
- Scientific research
- Educational purposes
- Security applications
| Resolution (H × V) | 2448 x 2048 |
| Sensor | Sony IMX264 Global Shutter CMOS |
| Pixel Size | 3.45 ㎛ × 3.45 ㎛ |
| Data Interface | USB 3.0 |
| Frame Rate | 36fps@2448 × 2048 |
| ADC Bit Depth | 12 bit |
| Pixel Bit Depth | 8 bit, 10 bit |
| Exposure Time | UltraShort: 1 ㎲~100 ㎲, Actual Steps: 1 ㎲ Standard: 20 ㎲ ~ 1 s, Actual Steps: 1 row period |
| Gain | 0dB ~ 24dB, Default: 0dB, Steps: 0.1dB |
| Mono/Color | Color Mono |
| Pixel Formats | Bayer RG8, Bayer RG10 Mono8, Mono10 |
| Single Noise Ratio | 40.5dB 40.4dB |
| Synchronization | Hardware trigger, Software trigger |
| I/O | 1 input and 1 output with opto-isolated, 2 programmable GPIOs |
| Temperature | Operating: 0℃ ~ 45℃, Storage: -20℃ ~ 70℃ |
| Operating Humidity | 10% ~ 80% |
| Power Requirements | 5 VDC via USB cable |
| Power Consumption | < 2.7W@5 VDC |
| Lens Mount | C |
| Dimensions and Weight | 29㎜ x 29㎜ x 29㎜ (without lens adapter or connectors), 65g |
| Progammable Control | Image size, Gain, Exposure time, Trigger polarity, Flash polarity |
| Conformity | CE, RoHS, FCC, GigE Vision, GenICam, KC |
