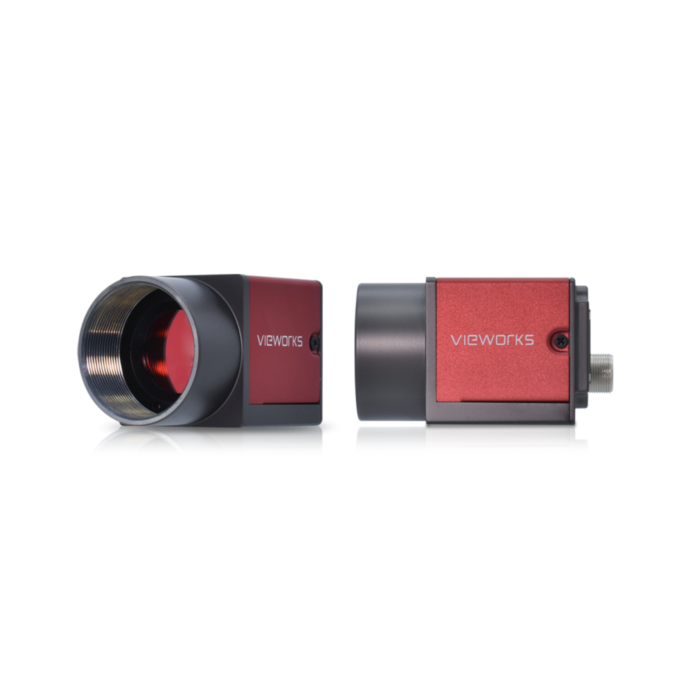

Vieworks VZ-5MU-M 79 H00-POL Polarized Industrial Digital Cameras with USB3.0 Interface
Engineered for precision and reliability, the Vieworks VZ-5MU-M 79 H00-POL Polarized Industrial Digital Camera delivers unparalleled imaging performance for demanding machine vision applications. Featuring the advanced Sony IMX250 Global Shutter CMOS sensor, this compact 29mm camera offers crisp, precise imaging in both monochrome and polarized color formats. Its USB 3.0 interface ensures fast data transfer, while robust metal housing and locking connectors provide stable performance in industrial environments.
Developed to meet the rigorous standards of manufacturing, research, and security sectors, the VZ5MUM 79 H00-POL supports programmable LUTs, sequencer control, and high-speed frame capture. With up to 79.1 fps at full resolution, the camera ensures reliable results across inspection lines, microscopy setups, or robotics systems. Fully GenICam™ and USB3 Vision® compatible, it integrates seamlessly into complex systems, empowering engineers and researchers with superior control and image accuracy.
Features:
- Sony IMX250 CMOS sensor
- Monochrome and color formats
- Compact design (29mm x 29mm x 29mm)
- Robust metal housing
- Locking screw connectors
- USB3.0 interface
- Frame Start/Frame Burst Start trigger modes
- Programmable LUTs and User Set Control
- Sequencer Control
- 16KB data storage for algorithm coefficients
- 512KB ROM for extensive data storage
- GenICam™ and USB3 Vision® compatible
Applications:
- Industrial inspection
- Medical imaging
- Scientific research
- Educational labs
- Security monitoring
| Resolution (H × V) | 2448 x 2048 |
| Sensor | Sony IMX250 Global Shutter CMOS |
| Pixel Size | 3.45 ㎛ × 3.45 ㎛ |
| Data Interface | USB 3.0 |
| Frame Rate | 79.1fps@2448 × 2048 |
| ADC Bit Depth | 10 bit |
| Pixel Bit Depth | 8 bit, 10 bit |
| Exposure Time | UltraShort: 1 ㎲~100 ㎲, Actual Steps: 1 ㎲ Standard: 20 ㎲ ~ 1 s, Actual Steps: 1 row period |
| Gain | 0dB ~ 24dB, Default: 0dB, Steps: 0.1dB |
| Mono/Color | Polarized |
| Pixel Formats | Bayer RG8, Bayer RG10 Mono8, Mono10 |
| Single Noise Ratio | 40.58dB 40.65dB |
| Synchronization | Hardware trigger, Software trigger |
| I/O | 1 input and 1 output with opto-isolated, 2 programmable GPIOs |
| Temperature | Operating: 0℃ ~ 45℃, Storage: -20℃ ~ 70℃ |
| Operating Humidity | 10% ~ 80% |
| Power Requirements | 5 VDC via USB cable |
| Power Consumption | < 2.7W@5 VDC |
| Lens Mount | C |
| Dimensions and Weight | 29㎜ x 29㎜ x 29㎜ (without lens adapter or connectors), 65g |
| Progammable Control | Image size, Gain, Exposure time, Trigger polarity, Flash polarity |
| Conformity | CE, RoHS, FCC, GigE Vision, GenICam, KC |
