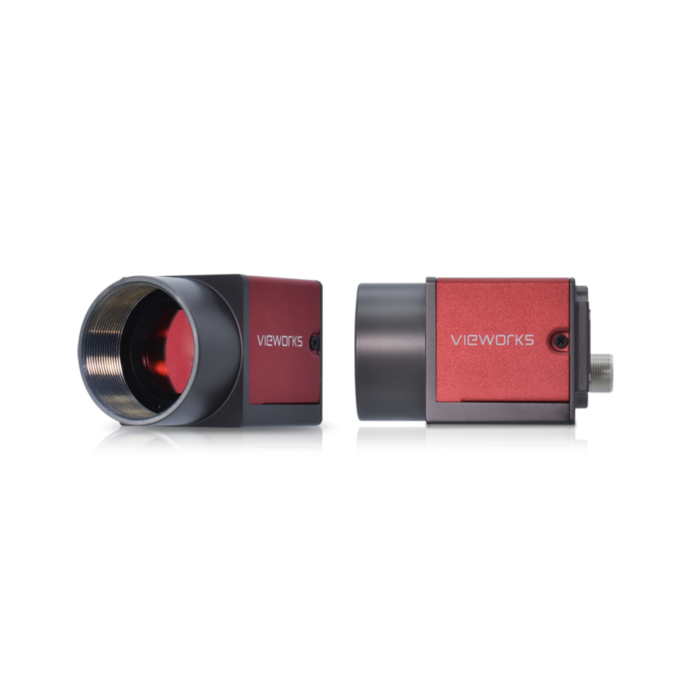

Vieworks VZ-5MU-M 36 H00-POL Polarized Industrial Digital Cameras with USB3.0 Interface
Unleashing Precision and Performance: Vieworks VZ-5MU-M 36H-POL Polarized Industrial Digital Cameras
Aegis Electronic Group Inc. offers the Vieworks VZ-5MU-M 36H-POL, a monochrome/color USB3.0 Vision camera equipped with the high-quality Sony IMX264 CMOS sensor. This camera is renowned for its compact dimensions (29mm x 29mm x 29mm), ensuring easy integration into various industrial and research applications. Its robust metal housing and locking screw connectors guarantee durability and reliability in demanding environments. The VZ-5MU-M 36H-POL camera provides an excellent price-performance ratio, making it a valuable investment for professionals in need of high-performance imaging solutions.
This camera excels in a multitude of applications, including industrial inspection, where precision and clarity are paramount. It is equally suitable for medical and scientific research, offering researchers the detailed imagery required for accurate analysis. The camera’s compatibility with GenICam™ and USB3 Vision® standards ensures seamless integration with existing systems, while features like programmable LUTs, sequencer control, and a 16KB data storage area enhance its versatility.
With support for storable user sets, timer, and counter functionalities, the VZ-5MU-M 36H-POL camera adapts to a wide range of requirements, making it a preferred choice for educational purposes and security applications. Explore the benefits of cutting-edge technology with Vieworks VZ-5MU-M 36H-POL for your industrial and machine vision needs.
Features:
- Sony IMX264 CMOS sensor
- Compact design (29mm x 29mm x 29mm)
- Robust metal housing
- Locking screw connectors
- USB3.0 Vision interface
- Frame Start / Frame Burst Start trigger modes
- Programmable LUTs and User Set Control
- Sequencer Control
- 16KB data storage
- GenICam™ and USB3 Vision® compatible
Applications:
- Industrial inspection
- Medical research
- Scientific research
- Educational purposes
- Security applications
| Resolution (H × V) | 2448 x 2048 |
| Sensor | Sony IMX264 Global Shutter CMOS |
| Pixel Size | 3.45 ㎛ × 3.45 ㎛ |
| Data Interface | USB 3.0 |
| Frame Rate | 36fps@2448 × 2048 |
| ADC Bit Depth | 12 bit |
| Pixel Bit Depth | 8 bit, 10 bit |
| Exposure Time | UltraShort: 1 ㎲~100 ㎲, Actual Steps: 1 ㎲ Standard: 20 ㎲ ~ 1 s, Actual Steps: 1 row period |
| Gain | 0dB ~ 24dB, Default: 0dB, Steps: 0.1dB |
| Mono/Color | Polarized |
| Pixel Formats | Bayer RG8, Bayer RG10 Mono8, Mono10 |
| Single Noise Ratio | 40.5dB 40.4dB |
| Synchronization | Hardware trigger, Software trigger |
| I/O | 1 input and 1 output with opto-isolated, 2 programmable GPIOs |
| Temperature | Operating: 0℃ ~ 45℃, Storage: -20℃ ~ 70℃ |
| Operating Humidity | 10% ~ 80% |
| Power Requirements | 5 VDC via USB cable |
| Power Consumption | < 2.7W@5 VDC |
| Lens Mount | C |
| Dimensions and Weight | 29㎜ x 29㎜ x 29㎜ (without lens adapter or connectors), 65g |
| Progammable Control | Image size, Gain, Exposure time, Trigger polarity, Flash polarity |
| Conformity | CE, RoHS, FCC, GigE Vision, GenICam, KC |
