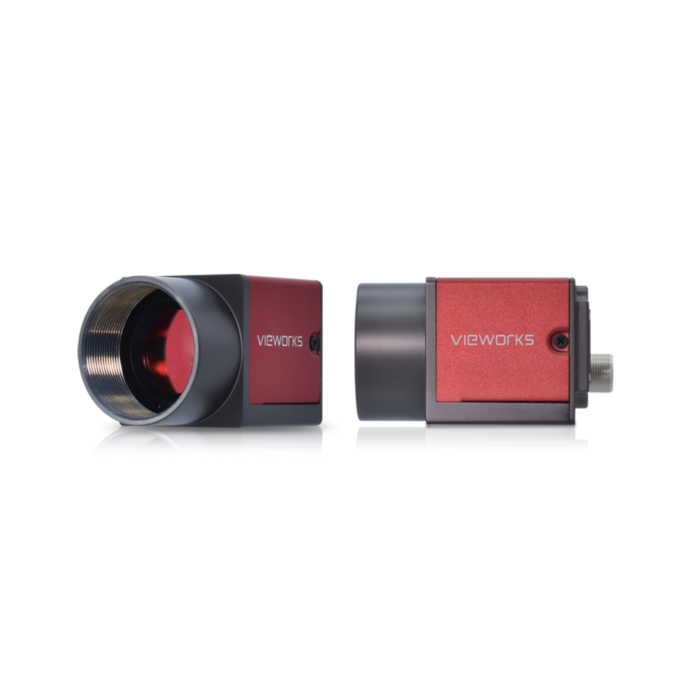

Vieworks VZ-5MG-M/C 23 H00 Industrial Digital Cameras with GigE Interface
Advanced Features of the VZ-5MG-M/C 23 H00 Industrial Digital Camera
Vieworks VZ-5MG-M/C 23 H00 stands as a pinnacle in the realm of industrial digital cameras, meticulously engineered to excel in demanding machine vision applications. Boasting an advanced GigE interface, this camera ensures seamless integration and high-speed data transfer, essential for real-time image processing in industrial environments.
The VZ-5MG-M/C 23 H00 is compact yet robust, featuring a diminutive form factor of 29㎜ x 29㎜ x 40.3㎜ coupled with a durable metal housing and secure locking screw connectors. These attributes collectively fortify the camera against the rigors of industrial settings, maintaining reliability and longevity under challenging conditions.
Designed for versatility, the camera offers opto-isolated I/Os and GPIOs, empowering users with maximum flexibility to adapt to specific operational requirements. It supports Power over Ethernet (IEEE802.3af), simplifying installation and reducing cabling complexity. Programmable Region of Interest (ROI) capabilities and adjustable Gamma and Sharpness settings further enhance image quality and customization options, catering to diverse industrial inspection needs.
Compatible with industry standards such as GenICam™ and GigE Vision, the VZ-5MG-M/C 23 H00 ensures interoperability and ease of integration with existing systems and software platforms. Whether deployed in industrial inspection, medical and scientific research, educational demonstrations, or security applications, this camera exemplifies reliability, performance, and innovation in industrial imaging technology.
Ideal for professionals seeking uncompromising quality and adaptability in their machine vision solutions, the Vieworks VZ-5MG-M/C 23 H00 promises to elevate operational efficiency and accuracy across various industrial sectors.
Features:
- Compact design: 29㎜ x 29㎜ x 40.3㎜
- Robust metal housing with locking screw connectors
- Opto-isolated I/Os and GPIOs for flexibility
- Power over Ethernet (IEEE802.3af)
- Programmable ROI and adjustable Gamma
- Compatible with GenICam™ and GigE Vision standards
Applications:
- Industrial inspection
- Medical research
- Scientific research
- Education
- Security
| Resolution (H × V) | 2448 x 2048 |
| Sensor | 2/3” Sony IMX264 Global Shutter CMOS |
| Pixel Size | 3.45 ㎛ × 3.45 ㎛ |
| Interface | Fast Ethernet (100 Mbit/s) or Gigabit Ethernet (1000 Mbit/s) |
| Frame Rate | 23.5 fps @ 2448 × 2048 (Adjust the packet size to 8192 and reserved bandwidth to 5) |
| ADC Bit Depth | 12 bit |
| Pixel Bit Depth | 8 bit, 12 bit |
| Exposure Time | UltraShort: 1 ㎲~100 ㎲, Actual Steps: 1 ㎲ Standard: 20 ㎲ ~ 1 s, Actual Steps: 1 row period |
| Gain | 0 ㏈ ~ 24 ㏈ |
| Mono/Color | Color Mono |
| Pixel Formats | Bayer RG8, Bayer RG12 Mono8, Mono12 |
| Single Noise Ratio | 40.69dB 40.79dB |
| Synchronization | Hardware trigger, Software trigger |
| I/O | 1 input and 1 output with opto-isolated, 2 programmable GPIOs |
| Temperature | Operating: 0℃ ~ 45℃, Storage: -20℃ ~ 70℃ |
| Operating Humidity | 10% ~ 80% |
| Power Requirements | PoE (Power over Ethernet, IEEE802.3af compliant) or 12 VDC-10% ~ 24 VDC+10% supplied via the camera’s Hirose connector |
| Power Consumption | < 3 W @ 24 VDC, < 3.75 W @ PoE |
| Lens Mount | C |
| Dimensions and Weight | 29㎜ x 29㎜ x 40.3㎜, 85g |
| Progammable Control | Image size, Gain, Exposure time, Trigger polarity, Flash polarity |
| Conformity | CE, RoHS, FCC, GigE Vision, GenICam, KC |
