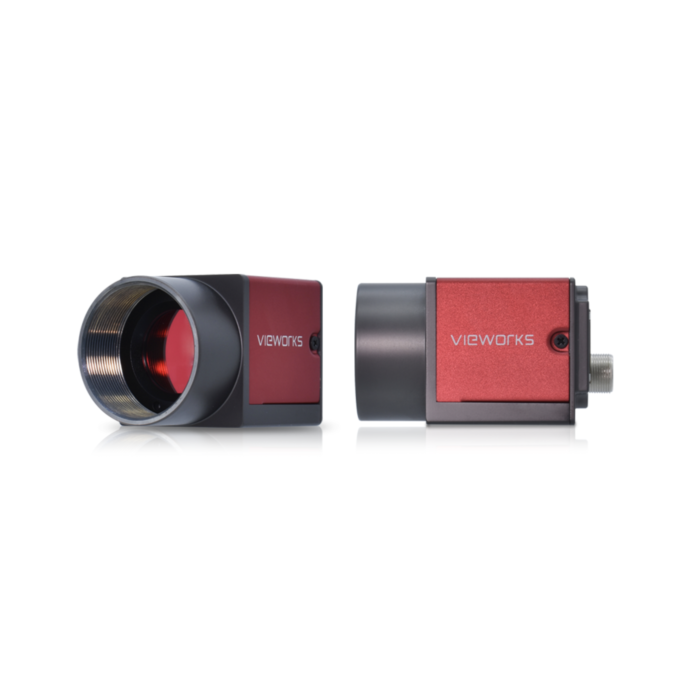

Vieworks VZ-5MG-M/C 23 C00 Industrial Digital Cameras with GigE Interface
Cutting-Edge Features of the Vieworks VZ-5MG-M/C23C Industrial GigE Vision Camera
Vieworks VZ-5MG-M/C23C represents cutting-edge technology in industrial digital cameras, designed to excel in machine vision applications. Built with advanced ISP algorithms and a compact form factor (29㎜ x 29㎜ x 40.3㎜), these cameras ensure reliability in harsh environments with robust metal housings and secure locking screw connectors.
The VZ-5MG-M/C23C offers opto-isolated I/Os and GPIOs, providing flexibility to tailor operations to specific needs. Key features include Power over Ethernet (IEEE802.3af) for simplified installation, programmable ROI and frame rate enhancements for efficient data capture, and adjustable Gamma and Sharpness to optimize image quality. It supports GenICam™ and GigE Vision standards, ensuring compatibility and ease of integration.
Applications for the VZ-5MG-M/C23C span a wide range of industries including industrial inspection, medical and scientific research, education, and security. Whether inspecting manufacturing defects, conducting medical diagnostics, analyzing scientific samples, educating future professionals, or securing sensitive areas, Vieworks cameras deliver precision and reliability.
Features:
- Compact design: 29㎜ x 29㎜ x 40.3㎜
- Robust metal housing with locking screw connectors
- Opto-isolated I/Os and GPIOs
- Power over Ethernet (IEEE802.3af)
- Programmable ROI and frame rates
- Adjustable Gamma and Sharpness
Applications:
- Industrial inspection
- Medical research
- Scientific research
- Education
- Security
| Resolution (H × V) | 2448 x 2048 |
| Sensor | 2/3” Sony IMX264 Global Shutter CMOS |
| Pixel Size | 3.45 ㎛ × 3.45 ㎛ |
| Interface | Fast Ethernet (100 Mbit/s) or Gigabit Ethernet (1000 Mbit/s) |
| Frame Rate | 23.5 fps @ 2448 × 2048 (Adjust the packet size to 8192 and reserved bandwidth to 5) |
| ADC Bit Depth | 12 bit |
| Pixel Bit Depth | 8 bit, 12 bit |
| Exposure Time | UltraShort: 1 ㎲~100 ㎲, Actual Steps: 1 ㎲ Standard: 20 ㎲ ~ 1 s, Actual Steps: 1 row period |
| Gain | 0 ㏈ ~ 24 ㏈ |
| Mono/Color | Color Color |
| Pixel Formats | Bayer RG8, Bayer RG12 Mono8, Mono12 |
| Single Noise Ratio | 40.69dB 40.79dB |
| Synchronization | Hardware trigger, Software trigger |
| I/O | 1 input and 1 output with opto-isolated, 2 programmable GPIOs |
| Temperature | Operating: 0℃ ~ 45℃, Storage: -20℃ ~ 70℃ |
| Operating Humidity | 10% ~ 80% |
| Power Requirements | PoE (Power over Ethernet, IEEE802.3af compliant) or 12 VDC-10% ~ 24 VDC+10% supplied via the camera’s Hirose connector |
| Power Consumption | < 3 W @ 24 VDC, < 3.75 W @ PoE |
| Lens Mount | C |
| Dimensions and Weight | 29㎜ x 29㎜ x 40.3㎜, 85g |
| Progammable Control | Image size, Gain, Exposure time, Trigger polarity, Flash polarity |
| Conformity | CE, RoHS, FCC, GigE Vision, GenICam, KC |
