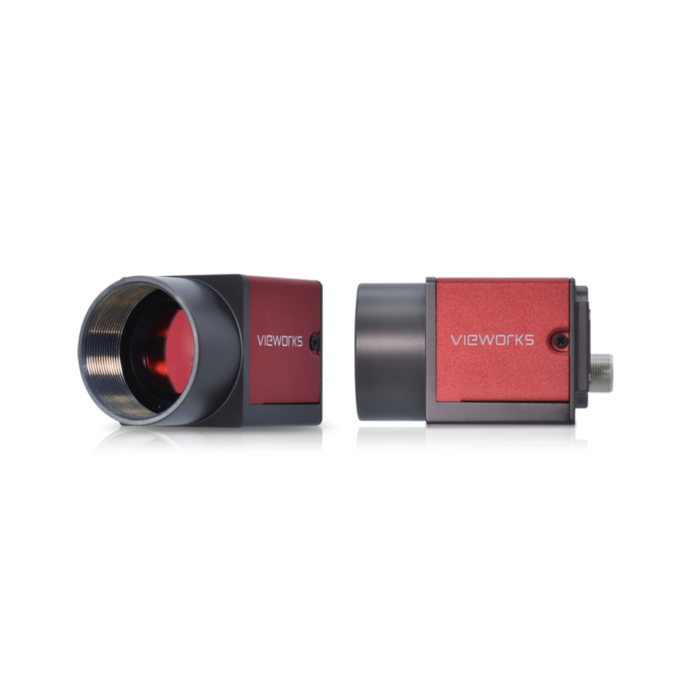

Vieworks VZ-5MG-M 23 H00-POL Industrial Polarized Digital Cameras with GigE Interface
Enhance Precision with Vieworks VZ-5MG-M 23 H00-POL Industrial Polarized Cameras
Vieworks is at the forefront of industrial and machine vision technology with their VZ-5MG-M 23 H00-POL Industrial Polarized Cameras. These cameras are engineered for optimal performance in demanding environments, featuring a compact yet robust design that ensures reliability. Equipped with advanced built-in ISP algorithms, the VZ-5MG-M/C23C offers precise control over image acquisition, crucial for applications requiring high accuracy and consistency.
Ideal for industrial inspection, medical imaging, scientific research, and security systems, the VZ5MGM/C23C excels in capturing high-resolution images with its GigE interface. Its opto-isolated I/Os and GPIOs provide flexibility to adapt to specific operational needs, enhancing versatility across various sectors. Whether deployed in manufacturing facilities to streamline quality control or in educational settings for detailed imaging tasks, these cameras deliver unparalleled performance.
Features:
- Polarized digital camera with GigE interface
- Compact design: 29㎜ x 29㎜ x 40.3㎜
- Robust metal housing for durability
- Built-in ISP algorithms for precise image control
- Opto-isolated I/Os and GPIOs for flexibility
Applications:
- Industrial inspection and quality control
- Medical and scientific imaging
- Educational and research purposes
- Security and surveillance systems
| Resolution (H × V) | 2448 x 2048 |
| Sensor | 2/3” Sony IMX264 Global Shutter CMOS |
| Pixel Size | 3.45 ㎛ × 3.45 ㎛ |
| Interface | Fast Ethernet (100 Mbit/s) or Gigabit Ethernet (1000 Mbit/s) |
| Frame Rate | 23.5 fps @ 2448 × 2048 (Adjust the packet size to 8192 and reserved bandwidth to 5) |
| ADC Bit Depth | 12 bit |
| Pixel Bit Depth | 8 bit, 12 bit |
| Exposure Time | UltraShort: 1 ㎲~100 ㎲, Actual Steps: 1 ㎲ Standard: 20 ㎲ ~ 1 s, Actual Steps: 1 row period |
| Gain | 0 ㏈ ~ 24 ㏈ |
| Mono/Color | Polarization |
| Pixel Formats | Bayer RG8, Bayer RG12 Mono8, Mono12 |
| Single Noise Ratio | 40.69dB 40.79dB |
| Synchronization | Hardware trigger, Software trigger |
| I/O | 1 input and 1 output with opto-isolated, 2 programmable GPIOs |
| Temperature | Operating: 0℃ ~ 45℃, Storage: -20℃ ~ 70℃ |
| Operating Humidity | 10% ~ 80% |
| Power Requirements | PoE (Power over Ethernet, IEEE802.3af compliant) or 12 VDC-10% ~ 24 VDC+10% supplied via the camera’s Hirose connector |
| Power Consumption | < 3 W @ 24 VDC, < 3.75 W @ PoE |
| Lens Mount | C |
| Dimensions and Weight | 29㎜ x 29㎜ x 40.3㎜, 85g |
| Progammable Control | Image size, Gain, Exposure time, Trigger polarity, Flash polarity |
| Conformity | CE, RoHS, FCC, GigE Vision, GenICam, KC |
