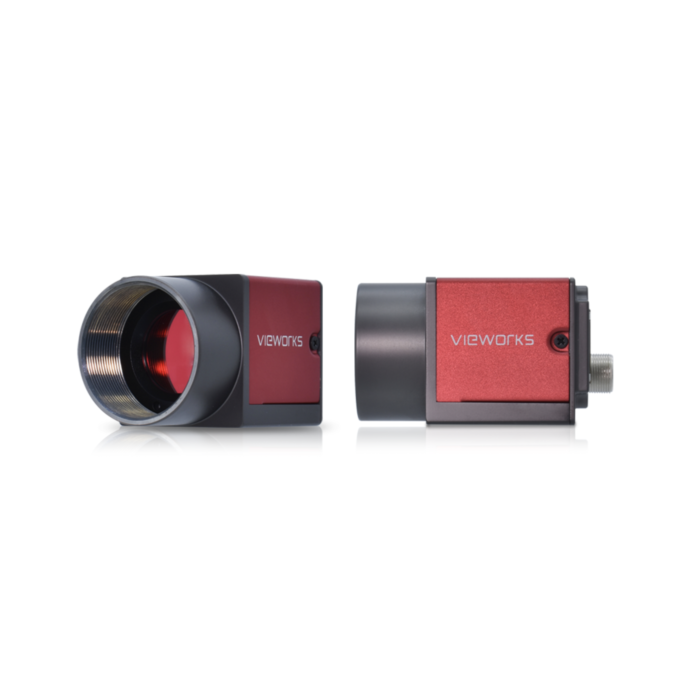

Vieworks VZ-5MG-M 23 C00-NIR Industrial Digital Cameras with GigE Interface
Advanced Features of the Vieworks VZ-5MG-M 23 C00-NIR Industrial Digital Camera
Aegis Electronic Group Inc. proudly presents the Vieworks VZ-5MG-M 23 C00-NIR industrial digital camera, engineered for precision in machine vision applications. Boasting a GigE interface, this camera integrates cutting-edge built-in ISP algorithms that enhance image acquisition control. Its compact dimensions of 29㎜ x 29㎜ x 40.3㎜ and durable metal housing with locking screw connectors ensure reliability even in challenging environments.
The VZ5MGM 23 C00-NIR features opto-isolated I/Os and GPIOs, offering unparalleled flexibility tailored to specific industrial needs. This versatility makes it an ideal choice for diverse applications including industrial inspection, medical diagnostics, scientific research, educational purposes, and security systems. Whether capturing intricate details in quality control or aiding in breakthrough scientific endeavors, this camera excels with high-resolution imaging and robust performance.
Features:
- GigE interface for high-speed data transmission
- Compact design: 29㎜ x 29㎜ x 40.3㎜
- Robust metal housing with locking connectors
- Opto-isolated I/Os and GPIOs for flexibility
- Built-in ISP algorithms for precise image control
Applications:
- Industrial inspection
- Medical diagnostics
- Scientific research
- Educational purposes
- Security systems
| Resolution (H × V) | 2448 x 2048 |
| Sensor | 2/3” Sony IMX264 Global Shutter CMOS |
| Pixel Size | 3.45 ㎛ × 3.45 ㎛ |
| Interface | Fast Ethernet (100 Mbit/s) or Gigabit Ethernet (1000 Mbit/s) |
| Frame Rate | 23.5 fps @ 2448 × 2048 (Adjust the packet size to 8192 and reserved bandwidth to 5) |
| ADC Bit Depth | 12 bit |
| Pixel Bit Depth | 8 bit, 12 bit |
| Exposure Time | UltraShort: 1 ㎲~100 ㎲, Actual Steps: 1 ㎲ Standard: 20 ㎲ ~ 1 s, Actual Steps: 1 row period |
| Gain | 0 ㏈ ~ 24 ㏈ |
| Mono/Color | Color Color |
| Pixel Formats | Bayer RG8, Bayer RG12 Mono8, Mono12 |
| Single Noise Ratio | 40.69dB 40.79dB |
| Synchronization | Hardware trigger, Software trigger |
| I/O | 1 input and 1 output with opto-isolated, 2 programmable GPIOs |
| Temperature | Operating: 0℃ ~ 45℃, Storage: -20℃ ~ 70℃ |
| Operating Humidity | 10% ~ 80% |
| Power Requirements | PoE (Power over Ethernet, IEEE802.3af compliant) or 12 VDC-10% ~ 24 VDC+10% supplied via the camera’s Hirose connector |
| Power Consumption | < 3 W @ 24 VDC, < 3.75 W @ PoE |
| Lens Mount | C |
| Dimensions and Weight | 29㎜ x 29㎜ x 40.3㎜, 85g |
| Progammable Control | Image size, Gain, Exposure time, Trigger polarity, Flash polarity |
| Conformity | CE, RoHS, FCC, GigE Vision, GenICam, KC |
