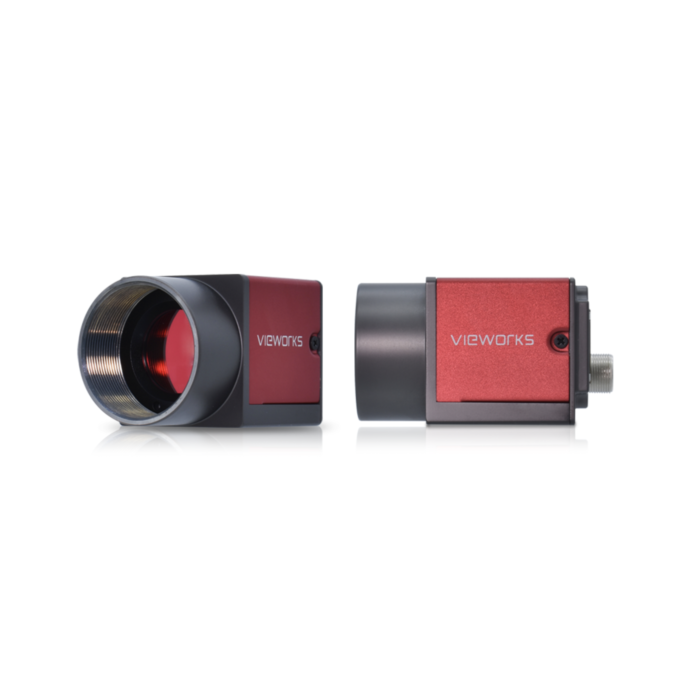

Vieworks VZ-3MU-M/C 56 H Industrial Digital Cameras with USB3.0 Interface
Discover the Versatility and Performance of Vieworks VZ-3MU-M/C 56H Industrial Digital Cameras
Aegis Electronic Group Inc. is proud to offer the Vieworks VZ-3MU-M/C 56H, an industrial digital camera known for its exceptional versatility and performance. Equipped with the Sony IMX265 CMOS sensor, this camera delivers high-quality monochrome and color imaging. Its compact dimensions (29㎜ x 29㎜ x 29㎜) and robust metal housing ensure durability and ease of integration into various industrial setups. The USB3.0 interface facilitates fast data transfer, while locking screw connectors provide secure connections in demanding environments.
The VZ-3MU-M/C 56H is tailored for a range of applications, including industrial inspection, where precision and reliability are paramount. It's equally suited for medical imaging, offering clarity and detail essential for diagnostics and research. Scientific research and educational institutions benefit from its advanced features and ease of use, making it a valuable tool for experiments and teaching. Additionally, the camera's programmable LUTs, user set control, and sequencer control enhance its adaptability to specific requirements, ensuring optimal performance in diverse scenarios. Experience the blend of affordability, reliability, and superior imaging with Vieworks VZ-3MU-M/C 56H, a camera designed to meet the demands of modern industrial and scientific applications.
Features:
- Sony IMX265 CMOS sensor
- Compact design (29㎜ x 29㎜ x 29㎜)
- Robust metal housing
- USB3.0 interface
- Locking screw connectors
- Programmable LUTs and user set control
- Sequencer control
- 16KB data storage for algorithms and configurations
- Multiple SDKs for easy integration
- GenICam™ and USB3 Vision® compatible
Applications:
- Industrial inspection
- Medical imaging
- Scientific research
- Educational tools
- Security systems
| Resolution (H × V) | 2048 x 1536 |
| Sensor | Sony IMX265 Global Shutter CMOS |
| Pixel Size | 3.45 ㎛ × 3.45 ㎛ |
| Data Interface | USB 3.0 |
| Frame Rate | 56fps@2048 × 1536 |
| ADC Bit Depth | 12 bit |
| Pixel Bit Depth | 8 bit, 10 bit |
| Exposure Time | UltraShort: 1 ㎲~100 ㎲, Actual Steps: 1 ㎲ Standard: 20 ㎲ ~ 1 s, Actual Steps: 1 row period |
| Gain | 0dB ~ 24dB, Default: 0dB, Steps: 0.1dB |
| Mono/Color | Color Mono |
| Pixel Formats | Bayer RG8, Bayer RG10 Mono8, Mono10 |
| Single Noise Ratio | 40.09dB 40.76dB |
| Synchronization | Hardware trigger, Software trigger |
| I/O | 1 input and 1 output with opto-isolated, 2 programmable GPIOs |
| Temperature | Operating: 0℃ ~ 45℃, Storage: -20℃ ~ 70℃ |
| Operating Humidity | 10% ~ 80% |
| Power Requirements | 5 VDC via USB cable |
| Power Consumption | < 2.7W@5 VDC |
| Lens Mount | C |
| Dimensions and Weight | 29㎜ x 29㎜ x 29㎜ (without lens adapter or connectors), 65g |
| Progammable Control | Image size, Gain, Exposure time, Trigger polarity, Flash polarity |
| Conformity | CE, RoHS, FCC, GigE Vision, GenICam, KC |
