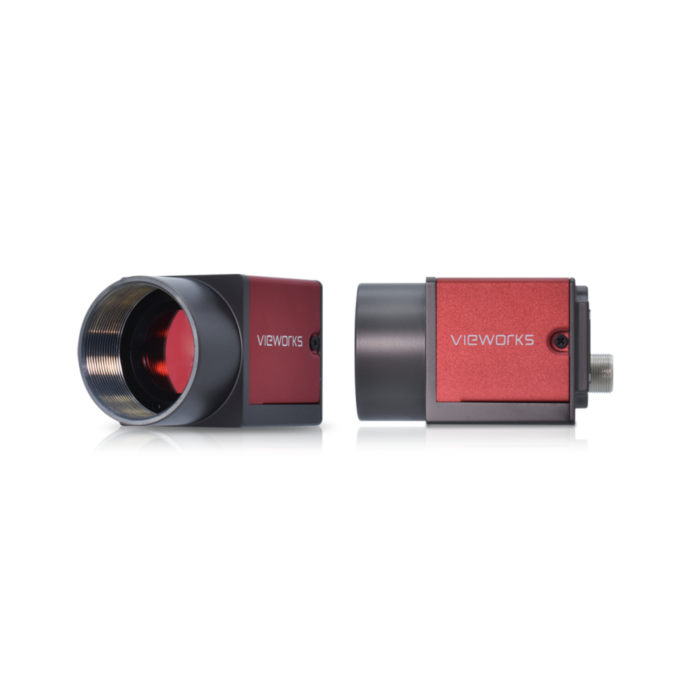

Vieworks VZ-3MG-M/C 37H Industrial Digital Cameras with GigE Interface
Advanced Features of the Vieworks VZ-3MG-M/C 37H Industrial GigE Vision Camera
Aegis Electronic Group Inc. proudly presents the Vieworks VZ-3MG-M/C 37H Industrial Digital Camera, designed to excel in machine vision and industrial applications. This robust camera integrates advanced ISP algorithms for precise image acquisition in demanding environments. Its compact dimensions (29㎜ x 29㎜ x 40.3㎜) and durable metal housing ensure reliability in harsh conditions, supported by secure locking screw connectors.
The VZ3MGM/C 37H offers opto-isolated I/Os and GPIOs, enhancing flexibility for tailored integration. It supports Power over Ethernet (IEEE802.3af) for streamlined connectivity and features programmable ROI and LUTs, enabling efficient image processing. With four acquisition controls—single frame, continuous, software trigger, and external trigger—it adapts seamlessly to diverse operational requirements.
Applications span across industrial inspection, medical and scientific research, education, and security sectors, benefiting from adjustable Gamma and Sharpness settings to optimize image quality. Compliant with GenICam™ and GigE Vision standards, it ensures interoperability and future-proof compatibility with existing setups.
Features:
- Compact design (29㎜ x 29㎜ x 40.3㎜) with robust metal housing
- Opto-isolated I/Os and GPIOs for flexibility
- Power over Ethernet (IEEE802.3af) support
- Programmable ROI and LUTs for enhanced image processing
- Adjustable Gamma and Sharpness settings
- Compliant with GenICam™ and GigE Vision standards
Applications:
- Industrial inspection
- Medical research
- Scientific research
- Education
- Security
| Resolution (H × V) | 2048 x 1536 |
| Sensor | Sony IMX265 Global Shutter CMOS |
| Pixel Size | 3.45 ㎛ × 3.45 ㎛ |
| Interface | Fast Ethernet (100 Mbit/s) or Gigabit Ethernet (1000 Mbit/s) |
| Frame Rate | 37.4 fps @ 2048 × 1536 (Adjust the packet size to 8192 and reserved bandwidth to 5) Under acquisition burst high speed mode, acquisition frame rate up to 55.82fps |
| ADC Bit Depth | 12 bit |
| Pixel Bit Depth | 8 bit, 12 bit |
| Exposure Time | UltraShort: 1 ㎲~100 ㎲, Actual Steps: 1 ㎲ Standard: 20 ㎲ ~ 1 s, Actual Steps: 1 row period |
| Gain | 0 ㏈ ~ 24 ㏈ (Default: 0 ㏈, Steps: 0.1 ㏈) |
| Mono/Color | Color Mono |
| Pixel Formats | Bayer RG8, Bayer RG12 Mono8, Mono12 |
| Single Noise Ratio | 40.84dB |
| Synchronization | Hardware trigger, Software trigger |
| I/O | 1 input and 1 output with opto-isolated, 2 programmable GPIOs |
| Temperature | Operating: 0℃ ~ 45℃, Storage: -20℃ ~ 70℃ |
| Operating Humidity | 10% ~ 80% |
| Power Requirements | 12VDC-10% ~ 24VDC+10% supplied via the camera’s Hirose connector. Supports PoE (Power over Ethernet, IEEE802.3af compliant) |
| Power Consumption | < 3 W @ 24 VDC, < 3.75 W @ PoE |
| Lens Mount | C |
| Dimensions and Weight | 29㎜ x 29㎜ x 40.3㎜, 85g |
| Progammable Control | Image size, Gain, Exposure time, Trigger polarity, Flash polarity |
| Conformity | CE, RoHS, FCC, GigE Vision, GenICam, KC |
