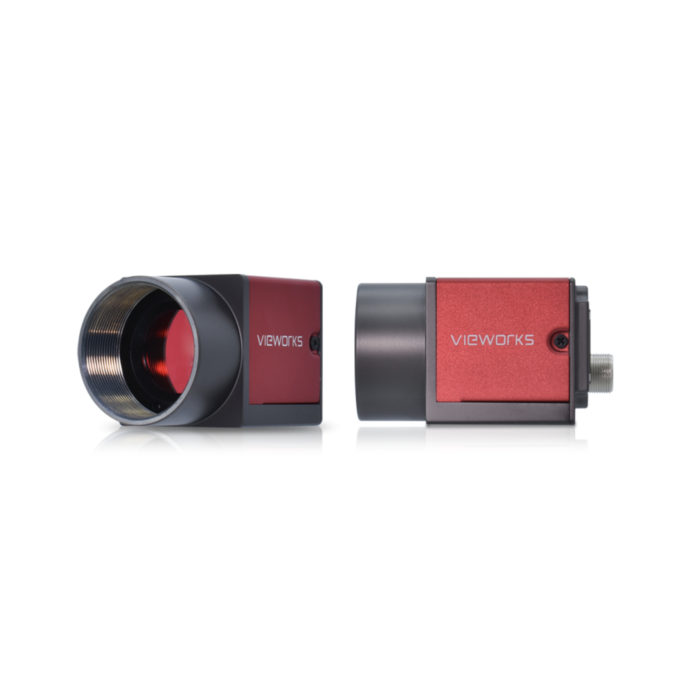

Vieworks VZ-2MU-M/C 41 H Industrial Digital Camera with Sony IMX249 Sensor and USB3.0 Interface
The Vieworks VZ-2MU-M/C 41 H is a high-performance machine vision camera built for precision-driven industrial and scientific imaging. Powered by the Sony IMX249 global shutter CMOS sensor, it delivers outstanding image clarity, maintaining an ideal balance between resolution, speed, and efficiency. Its compact 29×29×29 mm design with rugged metal housing ensures reliable performance even in demanding environments.
Optimized for flexibility, this industrial USB3 camera supports continuous, software-triggered, and external trigger modes with advanced features such as auto gain, exposure control, and programmable ROI. With compatibility for GenICam and USB3 Vision standards, it integrates effortlessly into existing systems for inspection, research, or automation setups.
Features:
- Sony IMX249 CMOS global shutter sensor
- USB3.0 high-speed data interface
- Compact 29×29×29 mm metal body, 65 g weight
- Auto gain, auto exposure, auto white balance (color models)
- Programmable ROI and partial scan support
- 3 acquisition modes: continuous, software trigger, external trigger
- GenICam and USB3 Vision compliance for seamless integration
Applications:
- Industrial inspection
- Medical research
- Scientific research
- Educational purposes
- Security and surveillance
| Resolution (H × V) | 1920 x 1200 |
| Sensor | Sony IMX249 Global Shutter CMOS |
| Pixel Size | 5.86 ㎛ × 5.86 ㎛ |
| Data Interface | USB 3.0 |
| Frame Rate | 41fps@1920 × 1200 |
| ADC Bit Depth | 12 bit |
| Pixel Bit Depth | 8 bit, 10 bit, 12 bit |
| Exposure Time | Standard: 20 ㎲ ~ 1 s, Actual Steps: 1 row period |
| Gain | 0dB ~ 24dB, Default: 0dB, Steps: 0.1dB |
| Mono/Color | Color Mono |
| Pixel Formats | Bayer RG8, Bayer RG10, Bayer RG12 Mono8, Mono10, Mono 12 |
| Single Noise Ratio | 45.33dB 45.33dB |
| Synchronization | Hardware trigger, Software trigger |
| I/O | 1 input and 1 output with opto-isolated, 2 programmable GPIOs |
| Temperature | Operating: 0℃ ~ 45℃, Storage: -20℃ ~ 70℃ |
| Operating Humidity | 10% ~ 80% |
| Power Requirements | 5 VDC via USB cable |
| Power Consumption | < 2.7W@5 VDC |
| Lens Mount | C |
| Dimensions and Weight | 29㎜ x 29㎜ x 29㎜ (without lens adapter or connectors), 65g |
| Progammable Control | Image size, Gain, Exposure time, Trigger polarity, Flash polarity |
| Conformity | CE, RoHS, FCC, GigE Vision, GenICam, KC |
