Vieworks VZ-2MG-M/C 60C Industrial Digital Cameras with GigE Interface
High-Performance Vieworks VZ-2MG-M/C 60C Industrial Digital Cameras for Versatile Applications
Aegis Electronic Group Inc. offers the cutting-edge Vieworks VZ-2MG-M/C 60C industrial digital cameras, designed for superior performance in a variety of machine vision and industrial applications. These cameras feature a GigE interface, providing high-speed data transfer and flexible connectivity options. The VZ-2MG-M/C 60C is equipped with advanced built-in ISP algorithms that enhance image quality through multiple acquisition controls.

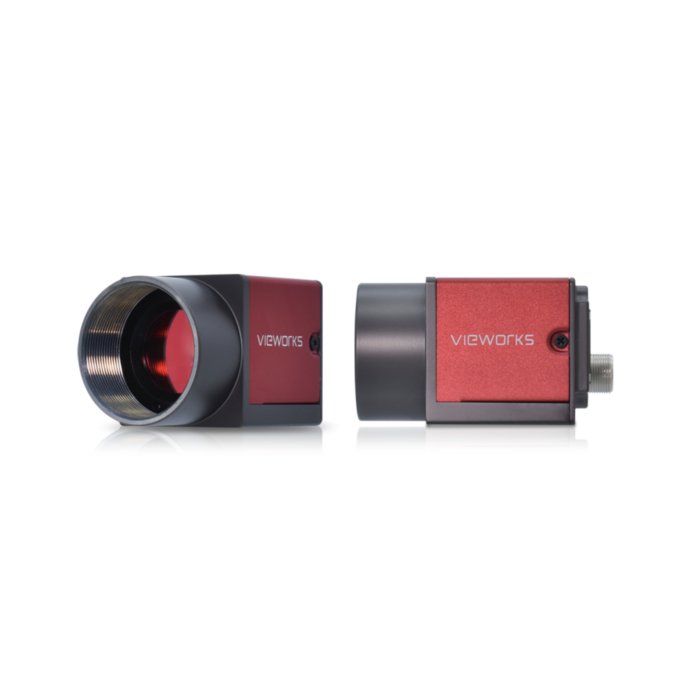

One of the standout features of the VZ-2MG-M/C 60C is its compact design, measuring just 29㎜ x 29㎜ x 40.3㎜, and its robust metal housing with locking screw connectors, ensuring durability and reliability even in harsh environments. The opto-isolated I/Os and GPIOs offer maximum adaptability to specific needs, making these cameras highly versatile.
Ideal for applications such as industrial inspection, medical imaging, scientific research, education, and security, the VZ-2MG-M/C 60C supports a range of functionalities including programmable ROI, adjustable gamma, and sharpness settings. With compatibility with GenICam™ and GigE Vision standards, these cameras deliver exceptional performance and flexibility. Trust Aegis Electronic Group Inc. to provide high-quality imaging solutions tailored to meet the demanding requirements of your industrial applications.
| Resolution (H × V) | 1600 x 1200 |
| Sensor | EV76C570 Global Shutter CMOS |
| Pixel Size | 4.5 ㎛ × 4.5 ㎛ |
| Interface | Fast Ethernet (100 Mbit/s) or Gigabit Ethernet (1000 Mbit/s) |
| Frame Rate | 60fps @ 1600 x 1200 (Adjust the packet size to 8192 and reserved bandwidth to 5) |
| ADC Bit Depth | 10 bit |
| Pixel Bit Depth | 8 bit, 10 bit |
| Exposure Time | Standard: 14㎲ ~ 0.86s Actual Steps: 1 row period |
| Gain | 0dB ~ 24dB |
| Mono/Color | Color Mono |
| Pixel Formats | Bayer RG8, Bayer RG10 Mono8, Mono10 |
| Single Noise Ratio | 39.46dB |
| Synchronization | Hardware trigger, Software trigger |
| I/O | 1 input and 1 output with opto-isolated, 2 programmable GPIOs |
| Temperature | Operating: 0℃ ~ 45℃, Storage: -20℃ ~ 70℃ |
| Operating Humidity | 10% ~ 80% |
| Power Requirements | PoE (Power over Ethernet, IEEE802.3af compliant) or 12 VDC-10% ~ 24 VDC+10% supplied via the camera’s Hirose connector |
| Power Consumption | < 3 W @ 24 VDC, < 3.75 W @ PoE |
| Lens Mount | C |
| Dimensions and Weight | 29㎜ x 29㎜ x 40.3㎜, 85g |
| Progammable Control | Image size, Gain, Exposure time, Trigger polarity, Flash polarity |
| Conformity | CE, RoHS, FCC, GigE Vision, GenICam, KC |
