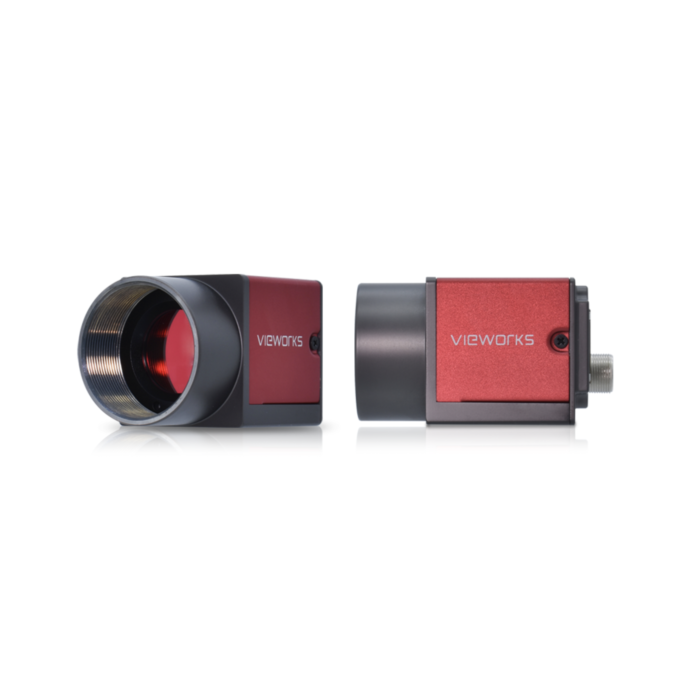

Vieworks VZ-2MG-M/C 41H Industrial Digital Cameras with GigE Interface
Enhance Your Industrial Applications with Vieworks VZ-2MG-M/C 41H GigE Vision Cameras
200-Word Description:
Aegis Electronic Group Inc. proudly presents the Vieworks VZ-2MG-M/C 41H, an advanced industrial digital camera featuring a GigE interface. This camera stands out with its cutting-edge built-in ISP algorithms, providing exceptional image processing capabilities. Its extremely compact design (29㎜ x 29㎜ x 40.3㎜) and robust metal housing ensure durability and reliability even in harsh environments, making it a top choice for demanding industrial applications.
The VZ-2MG-M/C 41H boasts multiple acquisition controls including single frame, continuous, software trigger, and external trigger, offering unparalleled flexibility. Additionally, the camera supports Power over Ethernet (IEEE802.3af), programmable ROI for increased frame rates with partial scans, and adjustable gamma and sharpness for optimal image quality. With opto-isolated I/Os and versatile GPIOs, it can easily adapt to various specific needs.
This camera is ideal for a range of applications such as industrial inspection, medical and scientific research, education, and security. Its compatibility with GenICam™ and GigE Vision standards ensures seamless integration into existing systems, making the Vieworks VZ2MGM/C 41H an indispensable tool for enhancing machine vision and industrial operations.
Short Description:
Features:
- Compact design: 29㎜ x 29㎜ x 40.3㎜
- Robust metal housing
- GigE interface
- Built-in ISP algorithms
- Multiple acquisition controls: single frame, continuous, software trigger, external trigger
- Power over Ethernet (IEEE802.3af)
- Programmable ROI
- Adjustable gamma and sharpness
- Opto-isolated I/Os
- Compatible with GenICam™ and GigE Vision
Applications:
- Industrial inspection
- Medical research
- Scientific research
- Education imaging solutions
- Security surveillance
| Resolution (H × V) | 1920 x 1200 |
| Sensor | 1/1.2” Sony IMX249 Global Shutter CMOS |
| Pixel Size | 5.86 ㎛ × 5.86 ㎛ |
| Interface | Fast Ethernet (100 Mbit/s) or Gigabit Ethernet (1000 Mbit/s) |
| Frame Rate | 41fps @ 1920 x 1200 |
| ADC Bit Depth | 12 bit |
| Pixel Bit Depth | 8 bit, 12 bit |
| Exposure Time | Standard: 20㎲ ~ 1s Actual Steps: 1 row period |
| Gain | 0dB ~ 24dB |
| Mono/Color | Color Mono |
| Pixel Formats | Bayer RG8, Bayer RG12 Mono8, Mono12 |
| Single Noise Ratio | 39.46dB |
| Synchronization | Hardware trigger, Software trigger |
| I/O | 1 input and 1 output with opto-isolated, 2 programmable GPIOs |
| Temperature | Operating: 0℃ ~ 45℃, Storage: -20℃ ~ 70℃ |
| Operating Humidity | 10% ~ 80% |
| Power Requirements | PoE (Power over Ethernet, IEEE802.3af compliant) or 12 VDC-10% ~ 24 VDC+10% supplied via the camera’s Hirose connector |
| Power Consumption | < 3 W @ 24 VDC, < 3.75 W @ PoE |
| Lens Mount | C |
| Dimensions and Weight | 29㎜ x 29㎜ x 40.3㎜, 85g |
| Progammable Control | Image size, Gain, Exposure time, Trigger polarity, Flash polarity |
| Conformity | CE, RoHS, FCC, GigE Vision, GenICam, KC |
