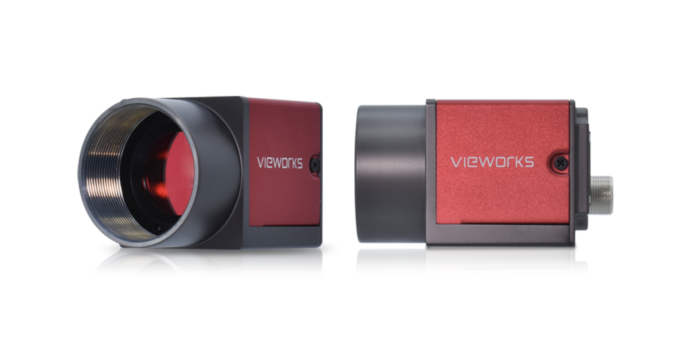

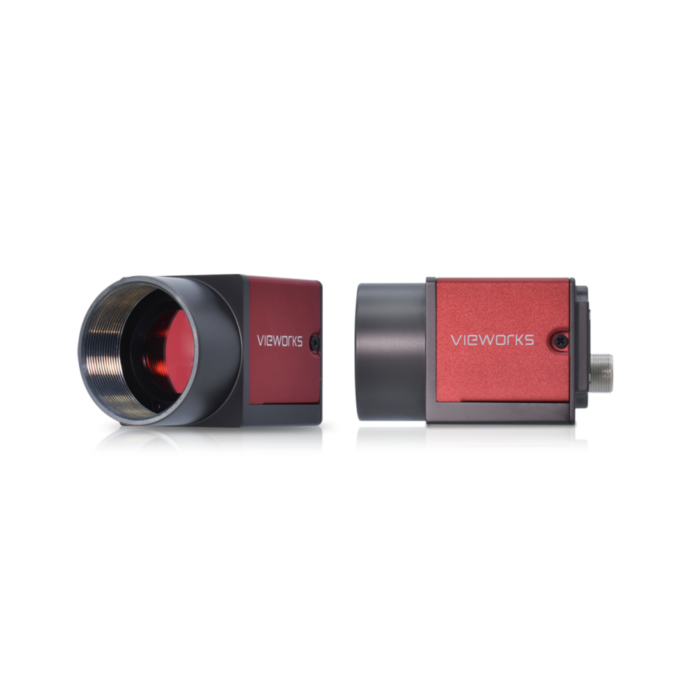

Vieworks VZ-1600G-M/C 75H Compact High-Resolution Industrial GigE Ethernet Digital Camera
Unmatched Performance with Vieworks VZ-1600G-M/C 75H Industrial Digital Cameras
Aegis Electronic Group Inc. is proud to offer the Vieworks VZ-1600G-M/C 75H, a state-of-the-art industrial digital camera that sets new standards in the field of machine vision and industrial applications. This camera is equipped with advanced built-in ISP algorithms, providing users with exceptional image quality and multiple acquisition controls. Its extremely compact design (29㎜x29㎜x40.3㎜), robust metal housing, and locking screw connectors ensure reliability even in the harshest environments.
The VZ-1600G-M/C 75H features opto-isolated I/Os and GPIOs, offering maximum flexibility to adapt to various specific needs. It supports Power over Ethernet (IEEE802.3af compliant), making installation simpler and more efficient. The camera's programmable ROI, increased frame rate with partial scan, programmable LUTs, and storable user sets allow for customization and enhanced performance. Additionally, adjustable gamma and sharpness settings optimize image brightness and clarity.
Ideal for a wide range of applications, the VZ1600GM/C 75H is perfect for industrial inspection, medical research, scientific research, education, and security. Whether you need a reliable camera for precise inspections or advanced research, this camera delivers unparalleled performance and versatility.
Experience the reliability and advanced features of the Vieworks VZ-1600G-M/C 75H. Contact Aegis Electronic Group Inc. today to learn more and upgrade your machine vision systems!
Features:
- Advanced ISP algorithms for superior image quality
- Compact design (29㎜x29㎜x40.3㎜)
- Robust metal housing with locking screw connectors
- Opto-isolated I/Os and flexible GPIOs
- Power over Ethernet (IEEE802.3af compliant)
- Programmable ROI and increased frame rate with partial scan
- Adjustable gamma and sharpness
- Support for extended exposure, gain, and white balance range
Applications:
- Industrial inspection
- Medical research
- Scientific research
- Education
- Security
| Resolution (H × V) | 1440 x 1080 |
| Sensor | 1/2.9” Sony IMX273 Global Shutter CMOS |
| Pixel Size | 3.45 ㎛ × 3.45 ㎛ |
| Interface | Fast Ethernet (100 Mbit/s) or Gigabit Ethernet (1000 Mbit/s) |
| Frame Rate | 75.6 fps @ 1440 × 1080 |
| ADC Bit Depth | 12 bit |
| Pixel Bit Depth | 8 bit, 12 bit |
| Exposure Time | Ultrashort: 1㎲~100㎲, Actual Steps: 1㎲ Standard: 20㎲ ~ 1s, Actual Steps: 1 row period |
| Gain | 0dB ~ 24dB, Default: 0dB, Steps: 0.1dB |
| Mono/Color | Color Mono |
| Pixel Formats | Bayer RG8, Bayer RG12 Mono8, Mono12 |
| Single Noise Ratio | 40.76dB 40.61dB |
| Synchronization | Hardware trigger, Software trigger |
| I/O | 1 input and 1 output with opto-isolated, 2 programmable GPIOs |
| Temperature | Operating: 0℃ ~ 45℃, Storage: -20℃ ~ 70℃ |
| Operating Humidity | 10% ~ 80% |
| Power Requirements | 12VDC-10% ~ 24VDC+10% supplied via the camera’s Hirose connector Supports PoE (Power over Ethernet, IEEE802.3af compliant) |
| Power Consumption | < 3 W @ 24 VDC, < 3.75 W @ PoE |
| Lens Mount | C |
| Dimensions and Weight | 29㎜ x 29㎜ x 40.3㎜, 85g |
| Progammable Control | Image size, Gain, Exposure time, Trigger polarity, Flash polarity |
| Conformity | CE, RoHS, FCC, GigE Vision, GenICam, KC |
