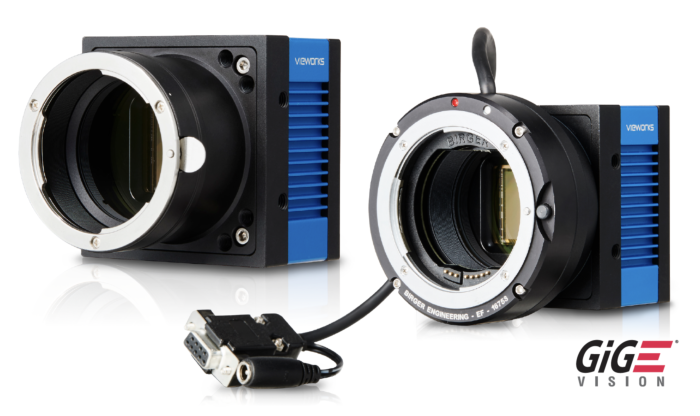

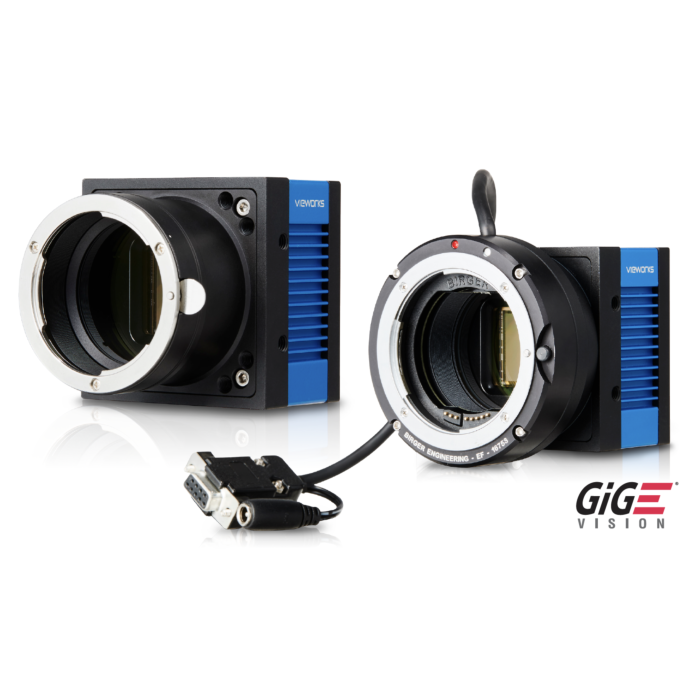

Vieworks VX-25MG-M 5 ON Semiconductor VITA-25K Sensor, 5120x5120, 5.0 fps, 4.5um pixel size, 35 mm Area Scan Camera
Elevate Your Imaging with Viewworks VX-25MG-M
The Vieworks VX-25MG-M camera, a cutting-edge addition to the renowned VX series, excels in delivering high-quality images for a variety of industrial and commercial applications. With its 25 Megapixel resolution and advanced ON Semiconductor VITA-25K sensor, this area scan camera provides exceptional clarity and detail at a speed of 5 frames per second. Designed for versatility, it is equipped with features like auto exposure, auto gain, and auto focus, allowing for effortless system integration and management.
Its 4.5 µm pixel size ensures sharp images, even in challenging environments. Operating within a temperature range of -50°C to 80°C, the VX25MGM is perfect for applications requiring reliable performance in extreme conditions. The camera’s capabilities are further enhanced by its Gigabit Ethernet connectivity, enabling seamless integration into complex imaging systems. The internal frame buffer and features like pixel defect correction ensure that every image captured meets the highest standards of quality, making it an ideal choice for aerial imaging, ground surveillance, and scientific research.
Features:
- 25 Megapixel Resolution with ON Semiconductor VITA-25K sensor
- Max Frame Rate: 5 fps, 25 fps (burst mode)
- Operating Temperature: -50°C to 80°C
- Auto Controls: Exposure, Gain, Aperture, Focus
- Gigabit Ethernet connectivity for easy integration
- Pixel Defect Correction and Non-uniformity Correction
- Dynamic Range: 54 dB
- Compact Design: 68 mm × 68 mm × 80 mm, 420 g
Applications:
- Aerial Imaging: Capture high-resolution images for monitoring and surveying
- Ground Surveillance: Ideal for security applications requiring detailed imaging
- Research and Scientific Imaging: Perfect for laboratories and scientific research where precision is critical
- Quality Control: Monitor product quality in manufacturing settings
- Medical Imaging: Utilize in medical settings for precise imaging tasks
- Robotics: Enhance robotic vision systems with reliable imaging capabilities
| Model | VX-25MG-M 5 |
| Resolution (H × V) | 5120 × 5120 |
| Sensor | ON Semiconductor VITA-25K |
| Sensor Size (Optical Format) | 35 mm |
| Sensor Type | High Speed CMOS Image Sensor |
| Pixel Size | 4.5 µm × 4.5 µm |
| Sensor Output | 32 CH LVDS |
| Interface | Gigabit Ethernet |
| Max. Frame Rate | 4.7 fps / 25 fps (Burst Mode) |
| Exposure Time | 1/1,000,000 - 60 s |
| Partial Scan (Max. Speed) | 13,888 fps at 1 Line (H: 256) |
| Pixel Data Format | 8 bit |
| Electronic Shutter | Global Shutter |
| Exposure Mode | Timed Exposure and Trigger Width Exposure |
| Dynamic Range | 54 dB |
| Binning | ×1, ×2 (Horizontal and Vertical Independent) |
| Black Level | Adjustable (0 ~ 16 LSB, 16 steps) |
| Digital Gain | ×1 ~ ×4 (1/128 step) |
| Camera Image Memory | 2 Gb |
| Dimension / Weight | 68 mm × 68 mm × 80 mm, 420 g (with F-mount)68 mm × 68 mm × 77 mm, 578 g (with Canon-EF Adapter) |
| Temperature | Operating: -50℃ ~ 80℃, Storage: -50℃ ~ 90℃ |
| Vibration / Shock | 10G (20 ~ 200 Hz) XYZ / 70G 10 ms |
| Lens Mount | F-mount or Interface for Canon-EF Adapter |
| Power | 10~36 V DC, Typ. 7.5 W |
| API | SDK Vieworks Imaging Solution 7.X |
