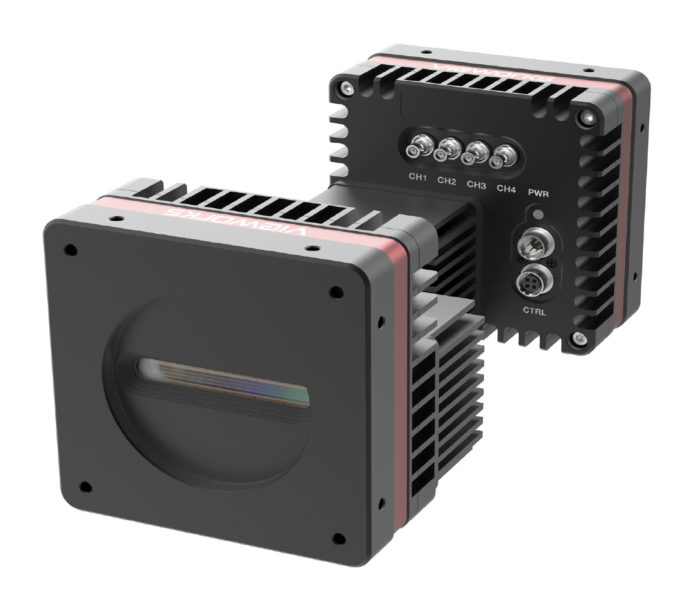

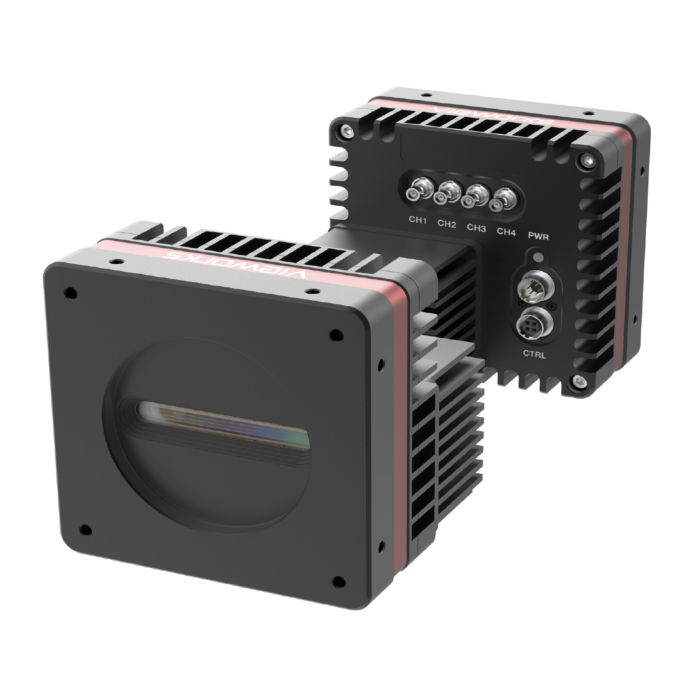

Vieworks VTS 9K5X2 H550 9K TDI BSI Line Scan Camera CoaXPress 50 Gbps
The Vieworks VTS-9K5X2-H550 is a high-performance 9K TDI line scan camera built for advanced industrial inspection and scientific imaging tasks that demand both speed and sensitivity. It uses a Backside Illuminated GLT5009BSI charge-domain CMOS sensor with 5.0 µm × 5.0 µm pixels to deliver enhanced quantum efficiency, low noise, and excellent image quality in visible, UV, and NIR ranges, even under low-light conditions. Supporting up to 543 kHz line rates over a 4-channel CXP-12 CoaXPress 2.0 interface at 50 Gbps, the camera provides fast, reliable data throughput for high-volume inline inspection systems.
Designed for flexible HDR operation, the VTS9K5X2H550 offers two photosensitive bands with up to 256 TDI stages in single-band mode and 32 stages in dual-band mode, boosting both sensitivity and dynamic range for scenes with mixed bright and dark details. Advanced functions such as DSNU and PRNU correction, user-defined LUT gamma control, analog and digital gain, and precise trigger synchronization options help ensure repeatable, high-contrast images in demanding applications like semiconductor, PCB, and flat panel display inspection, as well as fluorescence imaging.
Features:
- BSI (Backside Illuminated) Sensor
- 9k TDI, BSI(Back-Side Illuminated), Charge-domain CMOS
- CoaXPress Interface up to 543 ㎑ at 50 Gbps using 4 CH
- Bidirectional Operation with up to 256 TDI Stages in a Single Band, or 32 TDI Stages in a Dual Band
- Advanced DSNU and PRNU Correction
- Strobe Output Control
- GenICam Compatible - XML based Control
Applications:
- Semiconductor Inspection
- PCB Inspection
- Flat Panel Display Inspection
- Fluorescence Imaging
| Photosensitive Bands | Single Band (No HDR) | Dual Band (HDR) |
| Resolution (H × V) | 9056 x 256 | 9056 x (256 + 32) |
| Sensor | Backside Illuminated Sensor (GLT5009BSI) | |
| Pixel Size | 5.0 ㎛ × 5.0 ㎛ | |
| Interface | CoaXPress (CXP-12), 4 CH | |
| Sensor Sixe (Diagonal) | 45.36 mm x 1.28 mm | 45.36 mm x (1.28 + 0.16) mm |
| Max. Line Rate | 8 bit: 543 ㎑ 10 bit: 435 ㎑ 12 bit: 300 ㎑ | 8 bit: 271.5 ㎑ x 2 10 bit: 217.5 ㎑ x 2 |
| Min. Line Rate | 30㎑ | |
| Pixel Data Format | 8 /10 / 12 bit | 8 /10 bit |
| TDI Stages | 4/8/16/32/64/96/128/160/192/224/240/248/252/256 | |
| OFF | 2/4/8/16/24/28/30/32 | |
| Trigger Synchronization | Free-Run, External Trigger Signal, CoaXPress | |
| Throughput | 4.9 Gpix/s | |
| Gamma Correction | User Defined Lookup Table (LUT) | |
| Black Level Control | -256 ~ 255 at 8 bit | |
| Gain Control | Analog Gain: 2.0x ~ 8.0x / Digital Gain: 1.0× ~ 32.0× | |
| Lens Mount | M58 x 0.75㎜ | |
| Dimension / Weight | 90 ㎜ × 90 ㎜ × 80 ㎜ / 800 g | |
| Temperature | Ambient Operating: 0℃ ~ 40℃ (Housing: 10℃ ~ 55℃)Storage: -40℃ ~ 70℃ | |
| Power | External - 11 -24 V DC Dissipation - Typ. 25.0 W PoCXP - 24 V DC, Minimum of two PoCXP cables required | |
| Compliance | CE, FCC, KC | |
| API SDK | Vieworks Imaging Solution 7.X | |
