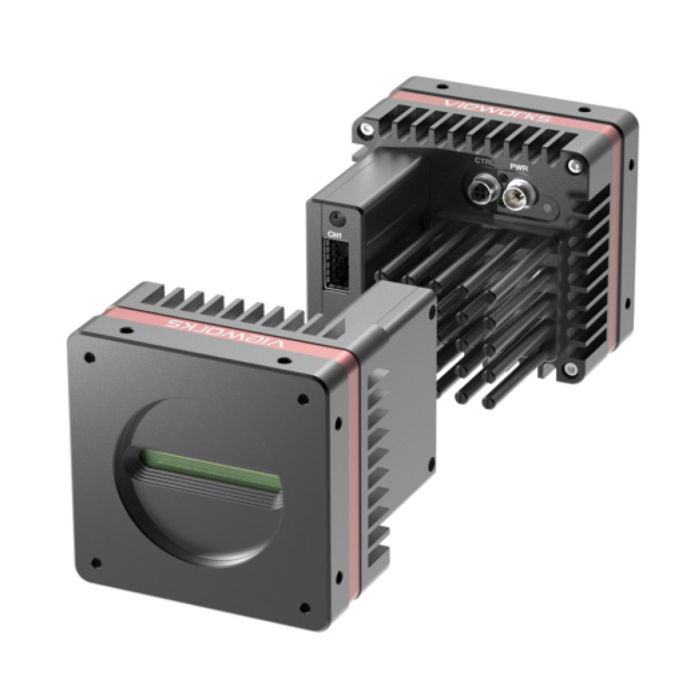

Vieworks VTS-9K5F-H550 9056 x 256 resolution, GLT5009BSI Back-Side Illuminated Image Sensor, CoaxPress-Over-Fiber M58 Mount TDI Line Scan Camera
The Vieworks VTS-9K5F-H550 is a high-performance TDI camera equipped with a Back-Side Illuminated (BSI) charge-domain CMOS sensor, designed for exceptional image quality and speed. The camera delivers a 9K resolution, with 9056 x 256 pixels in single band mode or 9056 x 288 pixels in dual-band HDR mode, offering enhanced sensitivity with up to 256 TDI stages. Its innovative BSI sensor technology ensures higher sensitivity and improved light capture, making it ideal for demanding applications like semiconductor and PCB inspection. With pixel sizes of 5 µm x 5 µm and a maximum line rate of 543 kHz (8-bit), the VTS-9K5F-H550 offers outstanding imaging performance under a variety of conditions.
Designed for high-speed operation, this camera utilizes a CoaXPress over Fiber interface that supports data transfer rates up to 40 Gbps, ensuring seamless image throughput even in complex imaging tasks. The VTS-9K5F-H550 provides advanced image correction capabilities, including DSNU and PRNU correction, ensuring high-precision imaging. The camera offers flexible synchronization options, including free-run, external, and CoaXPress 2.0 trigger synchronization, and supports analog and digital gain control for optimal image quality in fluctuating lighting conditions. Its robust construction and wide operating temperature range (0°C to 40°C ambient) make it well-suited for industrial and research applications requiring high-speed, high-sensitivity imaging with reliability and precision.
Features:
- 9k TDI, BSI(Back-Side Illuminated), Charge-domain CMOS
- CoaXPress over Fiber Interface up to 40 Gbps using 1 Link
- Bidirectional Operation with up to 256 TDI Stages in a Single Band, or 32 TDI Stages in a Dual Band
- Advanced DSNU and PRNU Correction
- Strobe Output Control
- GenICam Compatible - XML based Control
Applications:
- Semiconductor Inspection
- PCB Inspection
- Flat Panel Display Inspection
- Fluorescence Imaging
| Photosensitive Bands | Single Band (No HDR) | Dual Band (HDR) |
| Resolution (H × V) | 9056 x 256 | 9056 x (256 + 32) |
| Sensor | Backside Illuminated Sensor (GLT5009BSI) | |
| Pixel Size | 5.0 ㎛ × 5.0 ㎛ | |
| Interface | CoaXPress (CXP-12), 4 CH | |
| Connection | QSFP+ Single-channel CoF Frame Grabber × 1 Optic Transceiver(40G QSFP+ SR4) × 2 Optic Cable(MPO female to MPO female, type B) × 1 | |
| Sensor Sixe (Diagonal) | 45.36 mm x 1.28 mm | 45.36 mm x (1.28 + 0.16) mm |
| Max. Line Rate | 8 bit: 543 ㎑ 10 bit: 435 ㎑ 12 bit: 300 ㎑ | 8 bit: 271.5 ㎑ x 2 10 bit: 217.5 ㎑ x 2 |
| Min. Line Rate | 30㎑ | |
| Pixel Data Format | 8 /10 / 12 bit | 8 /10 bit |
| TDI Stages | 4/8/16/32/64/96/128/160/192/224/240/248/252/256 | |
| OFF | 2/4/8/16/24/28/30/32 | |
| Trigger Synchronization | Free-Run, External Trigger Signal, CoaXPress | |
| Throughput | 4.9 Gpix/s | |
| Gamma Correction | User Defined Lookup Table (LUT) | |
| Black Level Control | -256 ~ 255 at 8 bit | |
| Gain Control | Analog Gain: 2.0x ~ 8.0x / Digital Gain: 1.0× ~ 32.0× | |
| Lens Mount | M58 x 0.75㎜ | |
| Dimension / Weight | 90 ㎜ × 90 ㎜ × 99.3 ㎜, 950 g (Basic) 90 ㎜ x 129.5 ㎜ x 99.3 ㎜, 1270 g (with more Heat-sink) | |
| Temperature | Ambient Operating: 0℃ ~ 40℃ (Housing: 10℃ ~ 55℃)Storage: -40℃ ~ 70℃ | |
| Power | External - 11 -24 V DC Dissipation - Typ. 25.2 W | |
| Compliance | CE, FCC, KC | |
| API SDK | Vieworks Imaging Solution 7.X | |
