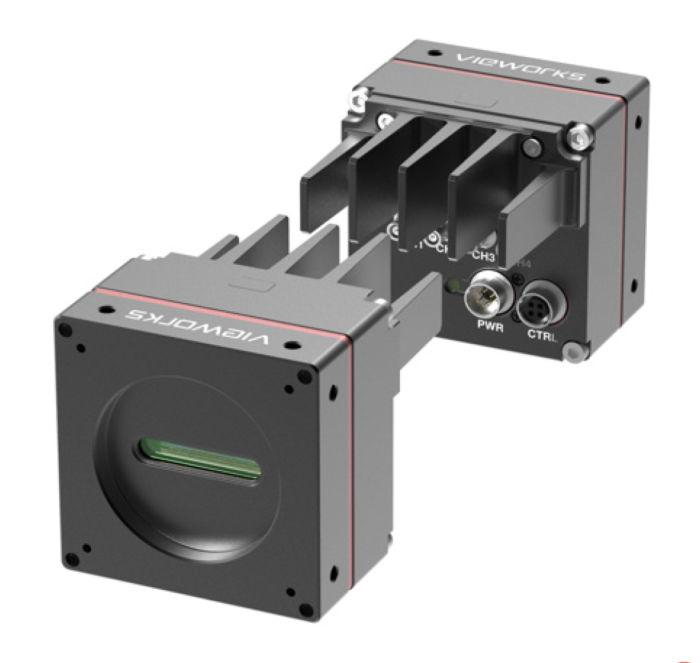

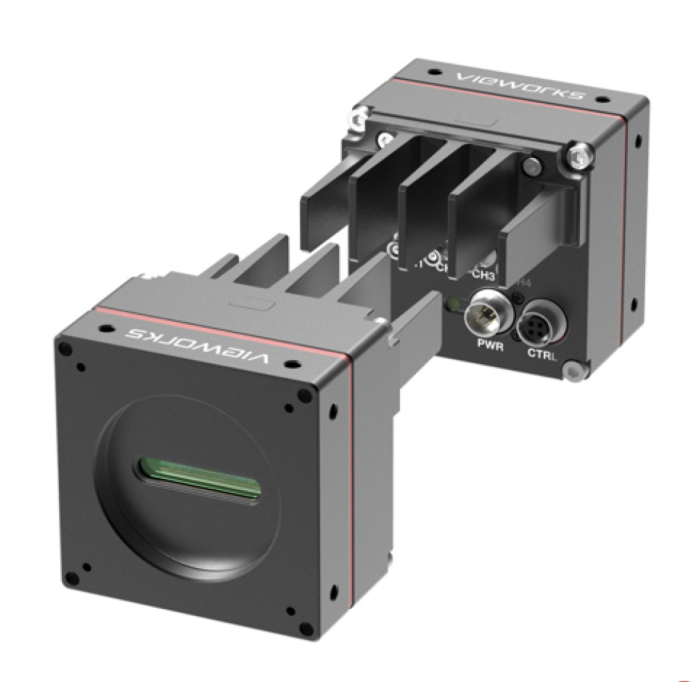

Vieworks VTS-4K5X-H300A-256 2160 × 80 resolution, 100 ㎑, Hybrid Color TDI Line Scan Sensor, CameraLink M42 Mount Camera

The latest hybrid TDI (Time Delayed Integration) line scan cameras combine BSI (Backside Illuminated) sensor technology with advanced CoaXPress data transmission to deliver unmatched speed and sensitivity. With resolutions of 4640 × 256 pixels, these cameras achieve an industry-leading 256× greater sensitivity compared to standard line scan sensors, making them ideal for low-light and high-speed inspection environments. Featuring a maximum line rate of 300kHz, they provide real-time high-resolution imaging for fast-moving production lines. Multiple binning modes (2×2: 257kHz, 3×3: 225kHz, 4×4: 200kHz) further enhance flexibility by improving signal-to-noise ratios. A 63dB dynamic range ensures superior contrast and detail, crucial for applications such as flat panel display, wafer, PCB, and high-speed document inspections.

The CoaXPress 4-channel interface, operating at up to 25Gbps, enables high-speed data transfer with minimal latency. Advanced features like DSNU (Dark Signal Non-Uniformity) and PRNU (Photo Response Non-Uniformity) correction improve image consistency, while a user-defined LUT (Look-Up Table) and black level control (-256 to 255 at 8-bit) allow precise calibration. TDI integration stages range from 64 to 256, maximizing photon collection for exceptional low-light performance. Multiple trigger synchronization options, including Free-Run, External Trigger, and CoaXPress, ensure adaptability across different machine vision setups. The compact 60 × 60 × 72mm form factor, M42 lens mount, and lightweight 280g design make integration seamless. Operating on 12-24V DC or PoCXP, with a low 6W typical power draw, the VTS-4K5X-H300A-256 (VTS4K5XH300A256) cameras provide efficient, high-performance imaging solutions for cutting-edge industrial applications.

Features:

• BSI (Backside Illuminated) Sensor
• CoaXPress Interface up to 300㎑ at 25Gbps using 4CH
• Bidirectional Operation with up to 256 TDI Stages
• Advanced DSNU and PRNU Correction
• Trigger Rescaler and Strobe Output Control
• GenICam Compatible - XML based Control

Applications:

• Flat Panel Display Inspection
• PCB Inspection
• Machine Vision Inspection
• Microscopy and Metrology
