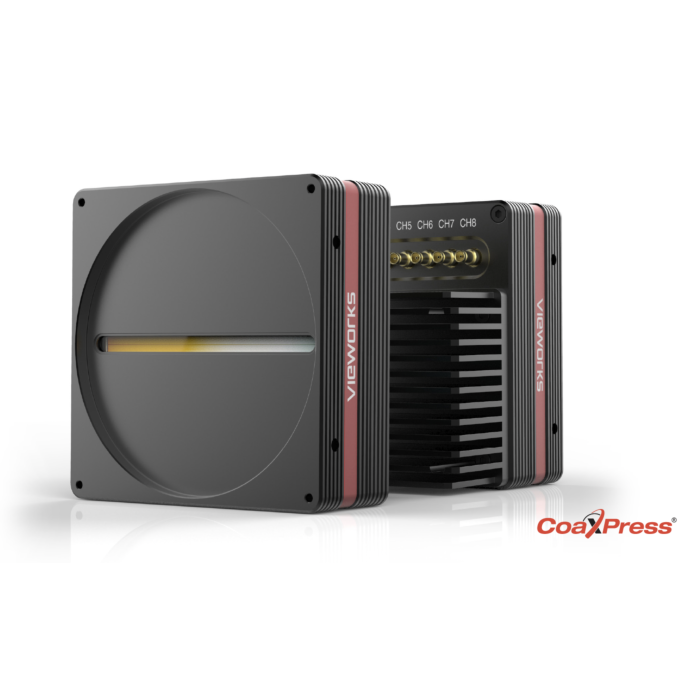

Vieworks VTS-16K5X2-H300 16384 x 256 resolution, Hybrid TDI Line Scan Sensor, CoaxPress M95 Mount Camera

The Vieworks VTS-16K5X2-H300 is a cutting-edge 16k hybrid Time Delayed Integration (TDI) line scan camera, engineered for high-performance applications requiring both speed and sensitivity. Equipped with a hybrid TDI sensor, it seamlessly combines the advantages of CCD and CMOS technologies, offering exceptional sensitivity—up to 256 times greater than traditional line scan systems. With a resolution of 16,384 pixels, the camera supports line rates of up to 300 kHz, delivering a high throughput of 4.8 gigapixels per second (Gpix/s). This allows it to capture fast-moving objects with precision and clarity, making it ideal for demanding inspection tasks such as flat panel displays, PCB, and wafer inspection.

The camera utilizes an 8-channel CoaXPress interface, enabling high-speed data transfer at up to 50 Gbps, and is capable of supporting 8, 10, or 12-bit pixel data formats. Its variable TDI stage configuration (up to 256 stages) offers flexibility, providing superior performance under varying lighting conditions and scanning speeds. With its compact design, power efficiency, and wide operating temperature range, the VTS16K5X2H300 is perfectly suited for use in machine vision, metrology, and microscopy applications that require both high resolution and high-speed imaging.

Features:

• BSI (Backside Illuminated) Sensor
• 9k TDI, BSI(Back-Side Illuminated), Charge-domain CMOS
• CoaXPress Interface up to 543 ㎑ at 50 Gbps using 4 CH
• Bidirectional Operation with up to 256 TDI Stages in a Single Band, or 32 TDI Stages in a Dual Band
• Advanced DSNU and PRNU Correction
• Strobe Output Control
• GenICam Compatible - XML based Control

Applications:

• Semiconductor Inspection
• PCB Inspection
• Flat Panel Display Inspection
• Fluorescence Imaging
