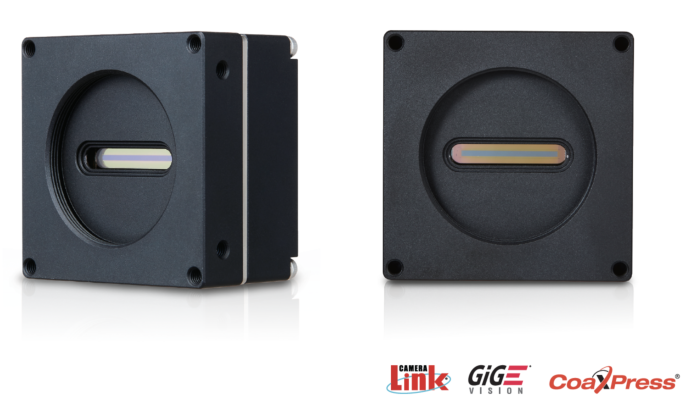

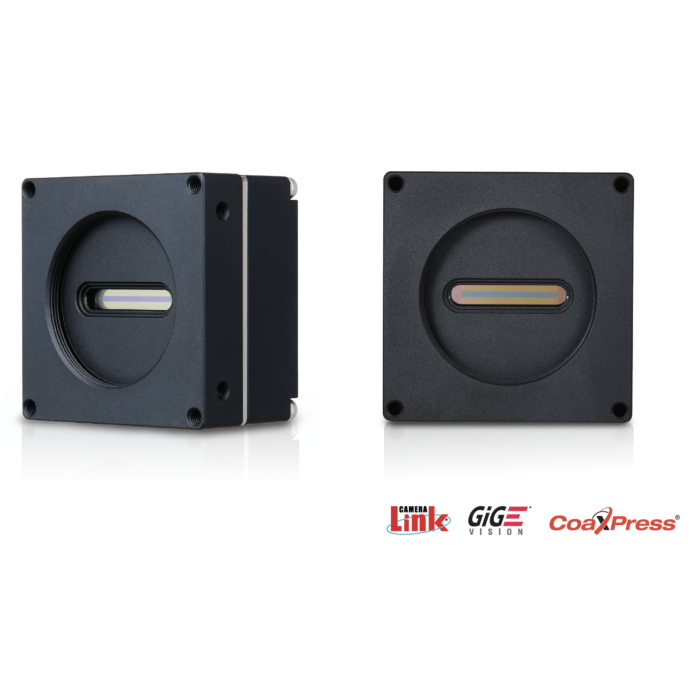

Vieworks VTC-2K10.5X-C140 Hybrid Color TDI Line Scan Camera – 2K Resolution, CoaXPress Interface
The Vieworks VTC-2K10.5X-C140 is a next-generation hybrid TDI line scan camera engineered for ultra-high performance industrial inspection. Combining CCD and CMOS sensor technologies, it delivers true color imaging with exceptional clarity, speed, and sensitivity. Featuring 2160 × 80 resolution and bidirectional operation with up to 80 TDI stages, it captures flawless image data for precision-critical applications.
Built on an M42 mount design with a CoaXPress interface, the VTC2K10.5XC140 achieves line rates up to 140 kHz while supporting advanced features such as DSNU/PRNU correction, trigger rescaling, and strobe output control. The result is a versatile, high-throughput camera ideal for flat panel inspection, PCB analysis, advanced metrology, and machine vision quality assurance.
Features:
- Hybrid CCD/CMOS color TDI sensor
- True color imaging at 2160 × 80 resolution
- Up to 80 TDI stages with bidirectional operation
- CoaXPress interface with 0.30 Gpix/s throughput
- Trigger rescaler and strobe output control
- Advanced DSNU/PRNU correction
- Supports user-defined LUT and adjustable gain
- Compact M42 mount, 60×60×36 mm body
Applications:
- Flat Panel
- PCB Inspection
- Machine Vision
- Precision Metrology
- Microscopy Imaging
| Resolution (H × V) | 2160 × 80 |
| Sensor | Hybrid Color TDI Line Scan |
| Pixel Size | 10.5 ㎛ × 10.5 ㎛ |
| Interface | CoaXpress |
| Max. Line Rate | 140 ㎑ |
| Min. Line Rate | 1 ㎑ |
| Pixel Data Format | 8 / 10 / 12 bit |
| TDI Stages | 20 / 40 / 60 / 80 |
| Trigger Synchronization | Free-Run, External, CoaXpress |
| Throughput | 0.30 Gpix/s (CXP 2 CH) |
| Gamma Correction | User Defined LUT (Lookup Table) |
| Black Level Control | -255 ~ 255 at 8 bit |
| Gain Control | Analog Gain: 1×, 2×, 3×, 4× / Digital Gain: 1.0× ~ 8.0× |
| Lens Mount | M42 × 1 ㎜ (C or F-mount available upon request) |
| Dimension/Weight | 60 ㎜ × 60 ㎜ × 36 ㎜, 223 g |
| Temperature | Ambient Operating: 0℃ ~ 50℃ (Housing: 10℃ ~ 50℃), Storage: -40℃ ~ 70℃ |
| Power | External - 10 ~ 30 V DC, Typ. 5.5 W PoCXP - 24 V DC Minimum of one PoCXP cable required |
| Comliance | CE, FCC, KC, UKCA |
| API SDK | Vieworks Imaging Solution 7.X |
| Config. SW for CL | Not Supported |
