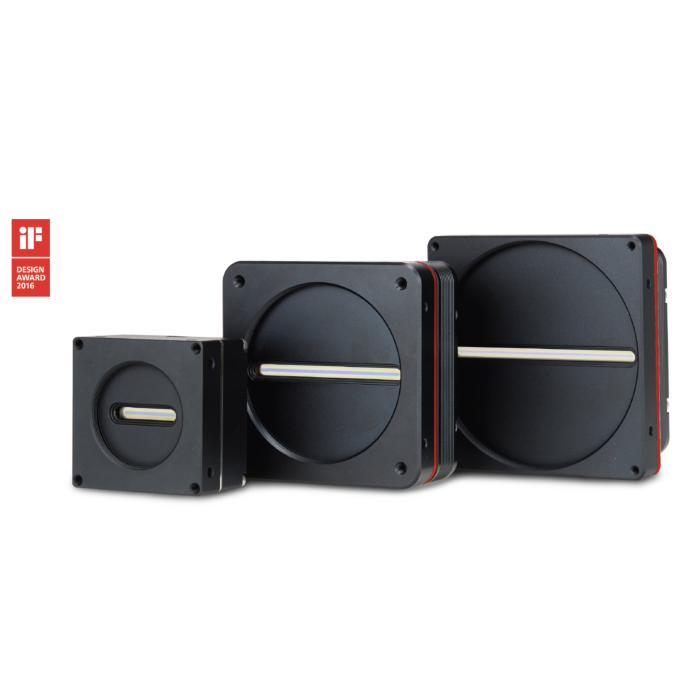

Vieworks VT-9K7C-H80A-128 8912 × 128 resolution, 94 ㎑, Hybrid Color TDI Line Scan Sensor, CameraLink M72 Mount TDI Line Scan Camera
The Vieworks VT-9K7CH80A-128 is a high-performance Time Delayed Integration (TDI) line scan camera designed for applications demanding extreme sensitivity, high speed, and precision imaging. It features a 9K resolution (8912 x 128) with a 7.0 µm × 7.0 µm pixel size, utilizing advanced hybrid TDI sensor technology to achieve up to 128× greater sensitivity while maintaining ultra-low noise. With a maximum line rate of 250 kHz at full resolution, the VT-9K7CH80A-128 is optimized for high-speed industrial inspections, including flat panel display (FPD), wafer, and PCB inspections. The camera offers a high-throughput data pipeline with an 85 MHz pixel clock and a peak data rate of 0.83 Gpix/s. Multiple TDI stage configurations (32/64/96/128) allow customization for varying sensitivity and speed requirements, while the Camera Link interface (Base/Medium/Full/10 Tap) ensures seamless integration into existing vision systems.
Engineered for versatility, the VT-9K7CH80A-128 supports multiple pixel output formats, including 8-bit (2/4/8/10 Tap), 10-bit (2/4 Tap), and 12-bit (2/4 Tap), ensuring precision in high-contrast applications. The camera's trigger modes include free-run, timed, and trigger width, providing flexible synchronization options for real-time inspections. Black level adjustment (-255 to 255 at 8-bit) and gamma correction via user-defined LUT enhance imaging performance. Its M72 × 0.75 lens mount accommodates high-resolution optics, while its compact 90 mm × 90 mm × 38 mm form factor and lightweight 500 g design facilitate easy integration. Operating efficiently with a 10–30 V DC power input and a typical power consumption of 12.0 W, the VT-9K7CH80A-128 is built for 24/7 industrial operation, with an ambient temperature range of 0℃ to 40℃ and housing temperatures up to 50℃. Equipped with PRNU/DSNU correction, anti-blooming, and area scan mode for alignment, this cutting-edge TDI camera ensures superior imaging performance for high-speed, high-resolution inspection tasks.
Features:
- 9K resolution (8912 x 128), 7.0 µm pixel size
- Maximum line rate: 250 kHz
- 128× sensitivity boost with low noise
- Camera Link interface (Base/Medium/Full/10 Tap)
- Up to 128 TDI stages
- Pixel formats: 8-bit, 10-bit, 12-bit
- Multiple trigger modes (free-run, timed, trigger width)
- Gamma correction with user-defined LUT
- PRNU/DSNU correction and anti-blooming
- M72 × 0.75 lens mount
- Power: 10-30 V DC, 12.0 W typical
- Compact: 90 mm × 90 mm × 38 mm, 500 g
- Operating temperature: 0℃ ~ 40℃
Applications:
- Flat Panel Display (FPD) Inspection
- Wafer Inspection
- Printed Circuit Board (PCB) Inspection
- High-Performance Document Scanning
- Industrial Quality Control Systems
| Resolution (H × V) | 8912 x 128 |
| Pixel Size | 7.0 ㎛ × 7.0 ㎛ |
| Interface | Camera Link Base / Medium / Full / 10 Tap, 26-pin SDR Connector |
| Max. Line Rate | 94㎑ |
| Max. Line Rate (2 x 2 Binning) | 120㎑ |
| Min. Line Rate | 1㎑ |
| Camera Image Memory | 9MB |
| Camera Link Pixel Clock | 85 ㎒ |
| Pixel Data Format | 8 bit (2/4/8/10 Tap) / 10 bit (2/4 Tap) / 12 bit (2/4 Tap) |
| TDI Stages | 32/64/96/128 |
| Trigger Mode | Free-Run, Timed, Trigger Width |
| Throughput | 0.83 Gpix/s |
| Gamma Correction | User Defined Lookup Table (LUT) |
| Black Level Control | -255 ~ 255 at 8 bit |
| Gain Control | Analog Gain: 1×, 2×, 3×, 4× / Digital Gain: 1.0× ~ 8.0× |
| Lens Mount | M72 x 0.75㎜ |
| Dimension / Weight | 90 ㎜ × 90 ㎜ × 38 ㎜ / 500 g |
| Temperature | Ambient Operating: 0℃ ~ 40℃ (Housing: 10℃ ~ 55℃) Storage: -40℃ ~ 70℃ |
| Power | 10 -30 V DC |
| Power Dissipation | Typ. 12.0 W |
| Configuration SW | Configurator |
