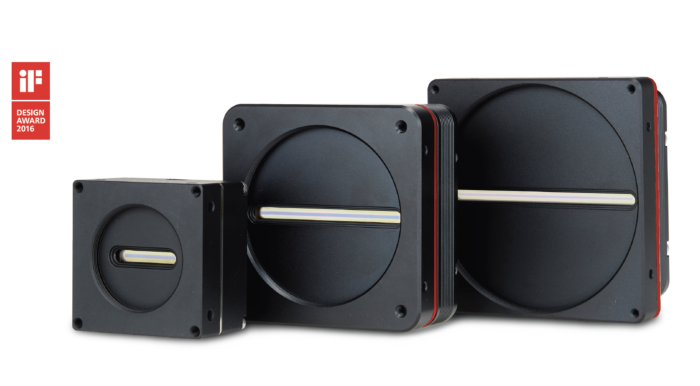

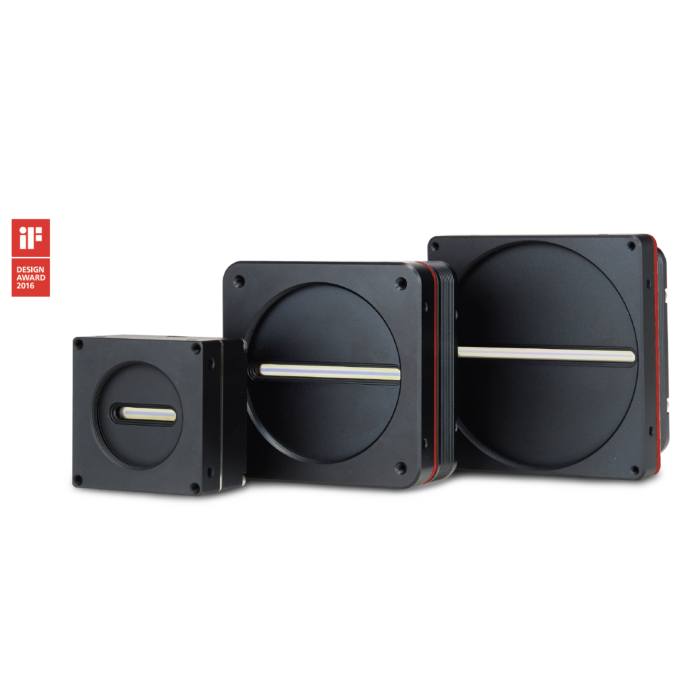

Vieworks VT-9K7C-E80A-32 8912 × 32 resolution, 94 ㎑, Hybrid Color TDI Line Scan Sensor, CameraLink M72 Mount TDI Line Scan Camera
The Vieworks VT-9K7CE80A-32 is a high-performance Time Delayed Integration (TDI) line scan camera, engineered for applications requiring high speed, exceptional sensitivity, and low noise. Featuring an 8912 x 32 pixel resolution with a 7.0 µm x 7.0 µm pixel size, this camera captures high-precision images at up to 250 kHz line rates for 9k resolution and 100 kHz for 23k resolution, ensuring rapid throughput in demanding industrial inspection tasks. Its 32-stage TDI sensor boosts sensitivity by up to 128x, making it ideal for low-light conditions while maintaining superior image quality. With a maximum throughput of 0.83 Gpix/s, Camera Link (Base/Medium/Full/10 Tap) interface, and M72 lens mount, the VT-9K7CE80A-32 offers flexibility for system integration across various applications such as flat panel display inspection, wafer inspection, and PCB inspection.
Designed for high-speed imaging, the camera supports multi-tap pixel data formats with 8-bit (2/4/8/10 Tap), 10-bit (2/4 Tap), and 12-bit (2/4 Tap) output options for enhanced image depth and clarity. The adjustable black level (-255 to 255 at 8-bit) and user-defined gamma correction (LUT) ensure precise image tuning. With a 9MB onboard image memory, it can handle high-speed data processing efficiently. The bidirectional operation with up to 256 TDI stages, advanced PRNU/DSNU correction, and anti-blooming features further optimize image quality. Its compact 90 mm × 90 mm × 38 mm form factor, 500g weight, and robust operating temperature range (0°C to 40°C, housing: 10°C to 50°C) ensure reliability in industrial environments. Powered by a 10-30V DC input with a typical power dissipation of 12W, the VT9K7CE80A32 is a cutting-edge solution for high-performance machine vision applications.
Features:
- Resolution: 8912 × 32 pixels
- Pixel Size: 7.0 µm × 7.0 µm
- Max Line Rate: 250 kHz (9k), 100 kHz (23k)
- Sensor: 32-stage TDI for 128× sensitivity
- Interface: Camera Link (Base/Medium/Full/10 Tap)
- Pixel Formats: 8-bit (2/4/8/10 Tap), 10-bit (2/4 Tap), 12-bit (2/4 Tap)
- Throughput: 0.83 Gpix/s
- Lens Mount: M72 × 0.75
- Memory: 9MB onboard
- Advanced Features: PRNU/DSNU correction, anti-blooming, bidirectional TDI
- Power: 10-30V DC, 12W typical
- Size/Weight: 90 mm × 90 mm × 38 mm, 500g
- Operating Temp: 0°C to 40°C (housing: 10°C to 50°C)
Applications:
- Flat panel display inspection
- PCB and wafer inspection
- High-performance document scanning
- Precision industrial imaging
| Resolution (H × V) | 8912 x 32 |
| Pixel Size | 7.0 ㎛ × 7.0 ㎛ |
| Interface | Camera Link Base / Medium / Full / 10 Tap, 26-pin SDR Connector |
| Max. Line Rate | 94㎑ |
| Max. Line Rate (2 x 2 Binning) | 120㎑ |
| Min. Line Rate | 1㎑ |
| Camera Image Memory | 9MB |
| Camera Link Pixel Clock | 85 ㎒ |
| Pixel Data Format | 8 bit (2/4/8/10 Tap) / 10 bit (2/4 Tap) / 12 bit (2/4 Tap) |
| TDI Stages | 32 |
| Trigger Mode | Free-Run, Timed, Trigger Width |
| Throughput | 0.83 Gpix/s |
| Gamma Correction | User Defined Lookup Table (LUT) |
| Black Level Control | -255 ~ 255 at 8 bit |
| Gain Control | Analog Gain: 1×, 2×, 3×, 4× / Digital Gain: 1.0× ~ 8.0× |
| Lens Mount | M72 x 0.75㎜ |
| Dimension / Weight | 90 ㎜ × 90 ㎜ × 38 ㎜ / 500 g |
| Temperature | Ambient Operating: 0℃ ~ 40℃ (Housing: 10℃ ~ 55℃) Storage: -40℃ ~ 70℃ |
| Power | 10 -30 V DC |
| Power Dissipation | Typ. 12.0 W |
| Configuration SW | Configurator |
