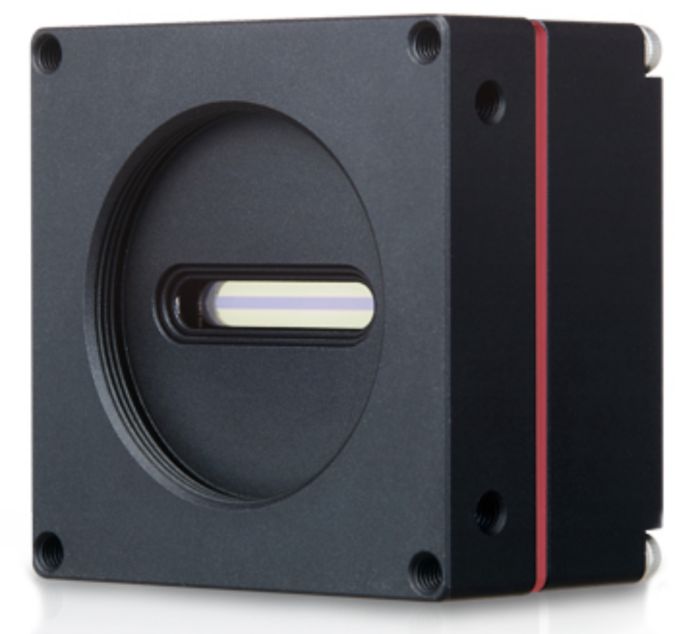

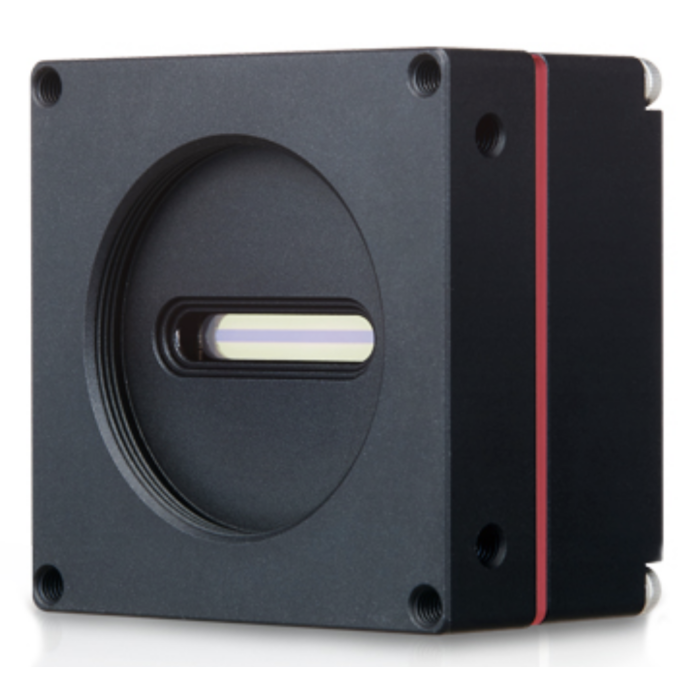

Vieworks VT-6K3.5G-H19A-256 Hybrid TDI Line Scan Camera with GigE Interface | High Sensitivity, 6K Resolution
Engineered for advanced industrial inspection, the VT-6K3.5G-H19A-256 hybrid TDI line scan camera delivers outstanding imaging performance with ultra-high sensitivity and 6K horizontal resolution. Combining CCD–CMOS hybrid TDI technology with a GigE interface, this camera achieves line rates up to 19 kHz and 256× greater sensitivity—ideal for capturing fine details in high-speed production environments. Designed for uncompromising reliability, it supports precise synchronization, low noise, and multi-stage TDI versatility.
Built for demanding inspection systems, the VT6K3.5GH19A256 ensures superior image quality where accuracy and efficiency matter most. With features such as advanced DSNU/PRNU correction, user-defined LUT, and flexible gain control, it integrates easily into industrial workflows for flat panel display, PCB, and wafer inspection applications. Its robust M42 mount and compact form factor make it a dependable imaging solution across industries that require ultra-fine detail and reliable throughput.
Features:
- 6K hybrid TDI line scan (CCD + CMOS)
- Up to 19 kHz line rate with 256 TDI stages
- GigE interface for high-speed data transfer
- Advanced DSNU and PRNU correction
- User-defined LUT and dynamic gain control
- Trigger rescaler and strobe control
- Compact 60 mm design with M42 mount
- CE, FCC, KC compliant
Applications:
- Flat Panel Inspection
- Wafer Inspection
- PCB Inspection
- Document Scanning
- Machine Vision
- Metrology Systems
| Resolution (H × V) | 6560 X 256 |
| Sensor | Hybrid TDI Line Scan |
| Pixel Size | 3.5 ㎛ × 3.5 ㎛ |
| Interface | GigE |
| Max. Line Rate | 19 ㎑ |
| Min. Line Rate | 1 ㎑ |
| Pixel Format | 8 / 10 / 12 bit |
| TDI Stages | 64/128/192/256 |
| Trigger Synchronization | Free-Run, External |
| Throughput | 0.12 Gpix/s |
| Gamma Correction | User Defined LUT (Lookup Table) |
| Black Level Control | -255 ~ 255 at 8 bit |
| Gain Control | Analog Gain: 1×, 2×, 3×, 4× / Digital Gain: 1.0× ~ 8.0× |
| Lens Mount | M42 × 1 ㎜ (C or F-mount available upon request) |
| Dimension/Weight | 60 ㎜ × 60 ㎜ × 36 ㎜, 223 g |
| Temperature | Ambient Operating: 0℃ ~ 50℃ (Housing: 10℃ ~ 50℃), Storage: -40℃ ~ 70℃ |
| Power | External - 10 ~ 30 V DC Dissipation - Typ. 4.5 W |
| Compliance | CE, FCC, KC |
| API SDK | Vieworks Imaging Solution 7.X |
