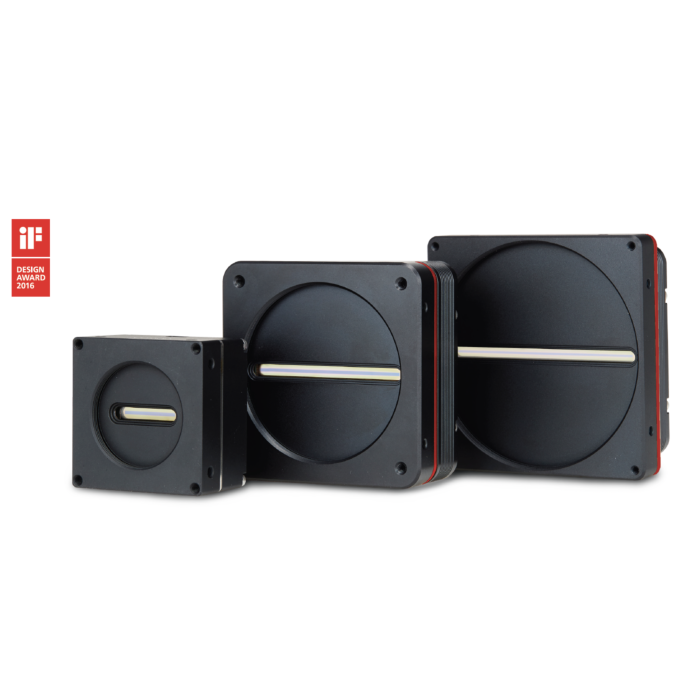

Vieworks VT-6K3.5C-H100A-256 TDI Line Scan Camera, 6560 × 256 Resolution, 100 kHz, Hybrid Color Sensor, Camera Link, M42 Mount

The Vieworks VT-6K3.5C-H100A-256 is a professional-grade TDI line scan camera engineered for superior performance in high-speed and high-sensitivity imaging environments. Featuring a 6560 × 256 pixel resolution and 3.5 µm pixel pitch, it delivers precision and clarity for demanding inspection systems. With a maximum line rate of 100 kHz and 256 TDI stages, the camera achieves exceptional light sensitivity—up to 256× in comparison to standard line scan models—making it ideal for low-light or reflective surfaces.

Designed for industrial excellence, the VT-6K3.5C-H100A-256 incorporates a Camera Link interface supporting up to 85 MHz pixel clock, 8–12-bit data output, and both analog (1×–4×) and digital (1.0×–8.0×) gain control. Its robust 6 MB onboard memory, compact 60 × 60 × 36 mm body, and M42 lens mount ensure reliable integration in inspection systems. With temperature tolerance from 0°C to 50°C and precise image correction (anti-blooming, PRNU, DSNU), this camera is optimized for applications requiring high-speed, high-resolution imaging.

Features:

• 6560 × 256 pixel resolution with 3.5 µm pixel size
• 256 TDI stages for high-sensitivity image capture
• 100 kHz maximum line rate with 0.66 Gpix/s throughput
• Camera Link (Base/Medium/Full/10 Tap) interface
• 6 MB onboard image memory for fast data processing
• 8/10/12-bit pixel data formats supported
• Analog gain (1×–4×) and digital gain (1.0×–8.0×)
• Anti-blooming, PRNU, and DSNU image correction
• M42 × 1 lens mount (C/F mount options)
• Compact 60 × 60 × 36 mm design, lightweight 223 g
• Operating temperature: 0°C to 50°C; storage: -40°C to 70°C

Applications:

• Display Inspection
• Wafer Inspection
• PCB Inspection
• Document Scanning
