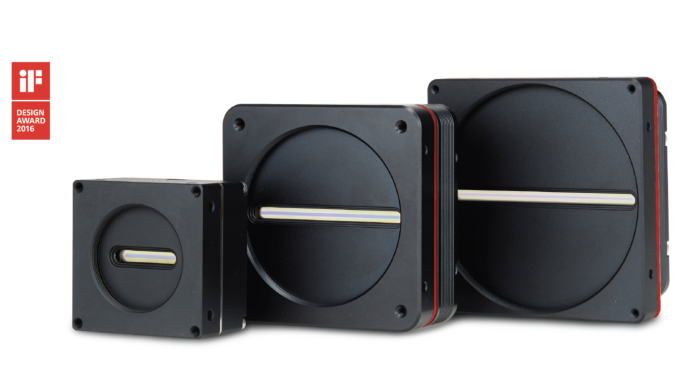

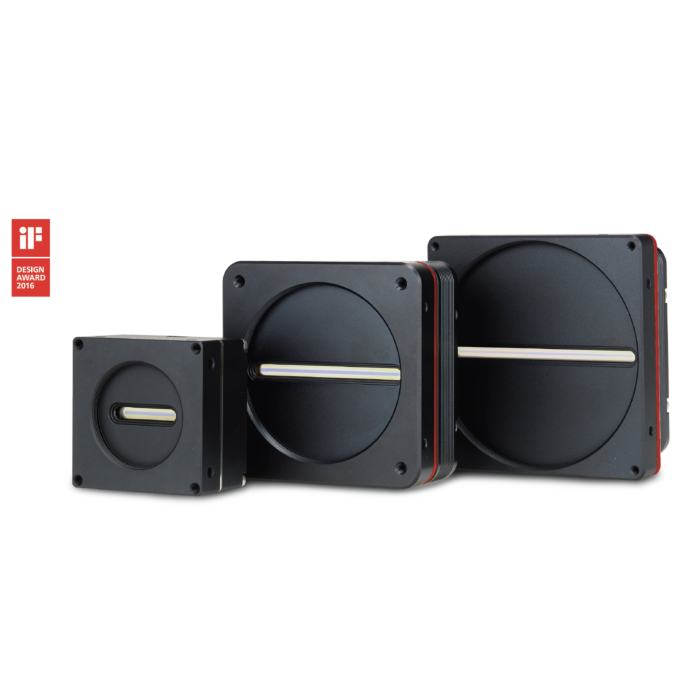

Vieworks VT-6K3.5C-E100A-64 6560 × 64 resolution, 100 ㎑, Hybrid Color TDI Line Scan Sensor, CameraLink M42 Mount TDI Line Scan Camera
The Vieworks VT-6K3.5C-E100 TDI line scan camera offers exceptional performance with a 6560 x 64 resolution (3.5 µm pixel size) and up to 100 kHz line rate, enabling fast and precise image capture in high-speed inspection applications. Its advanced Time-Delayed Integration (TDI) technology significantly boosts sensitivity, providing up to 256× greater sensitivity compared to conventional line scan cameras. With 64 TDI stages, this camera captures high-quality images with minimal noise, even at faster scan speeds. The camera delivers high throughput of 0.66 Gpix/s and supports multiple pixel data formats (8-bit, 10-bit, 12-bit) to suit various inspection needs. Its Camera Link interface (Base/Medium/Full/10 Tap) ensures rapid data transmission for seamless integration into complex systems.
Designed for industrial applications that require precise imaging, the VT6K3.5CE100 supports flexible imaging with analog gain (1×-4×) and digital gain (1.0×-8.0×), allowing users to fine-tune image quality for optimal results. The camera features a M42 × 1 lens mount and operates within a wide temperature range of 0°C to 50°C (ambient) and -40°C to 70°C (storage). Power-efficient with a typical power dissipation of 4.5W, it runs on a 10-30V DC power input. With its robust technical specifications and versatile design, the VT-6K3.5C-E100 excels in flat panel display inspection, wafer inspection, PCB inspection, and high-performance document scanning.
Features:
- Resolution: 6560 x 64 pixels (3.5 µm)
- Max Line Rate: 100 kHz
- TDI Stages: 64
- Pixel Data Formats: 8-bit, 10-bit, 12-bit
- Throughput: 0.66 Gpix/s
- Gain Control: Analog (1×-4×), Digital (1.0×-8.0×)
- Interface: Camera Link (Base/Medium/Full/10 Tap)
- Lens Mount: M42 × 1 (C/F-mount available)
- Temperature Range: 0°C to 50°C (Operating), -40°C to 70°C (Storage)
- Power Consumption: 4.5W typical (10-30V DC)
Applications:
- Flat Panel Display Inspection
- Wafer Inspection
- PCB Inspection
- High-Performance Document Scanning
| Resolution (H × V) | 6560 x 64 |
| Pixel Size | 3.5 ㎛ × 3.5 ㎛ |
| Interface | Camera Link Base / Medium / Full / 10 Tap, 26-pin SDR Connector |
| Max. Line Rate | 100㎑ |
| Max. Line Rate (2 x 2 Binning) | 100㎑ |
| Min. Line Rate | 1㎑ |
| Camera Image Memory | 6MB |
| Camera Link Pixel Clock | 40 ㎒ / 60 ㎒ / 80 ㎒ / 85 ㎒ |
| Pixel Data Format | 8 bit (2/4/8/10 Tap) / 10 bit (2/4 Tap) / 12 bit (2/4 Tap) |
| TDI Stages | 64 |
| Trigger Mode | Free-Run, Timed, Trigger Width |
| Throughput | 0.66 Gpix/s |
| Gamma Correction | User Defined Lookup Table (LUT) |
| Black Level Control | -255 ~ 255 at 8 bit |
| Gain Control | Analog Gain: 1×, 2×, 3×, 4× / Digital Gain: 1.0× ~ 8.0× |
| Lens Mount | M42 x 0.75㎜ |
| Dimension / Weight | 60 ㎜ × 60 ㎜ × 36 ㎜ / 223 g |
| Temperature | Ambient Operating: 0℃ ~ 40℃ (Housing: 10℃ ~ 55℃) Storage: -40℃ ~ 70℃ |
| Power | 10 -30 V DC |
| Power Dissipation | Typ. 4.5 W |
| Configuration SW | Configurator |
