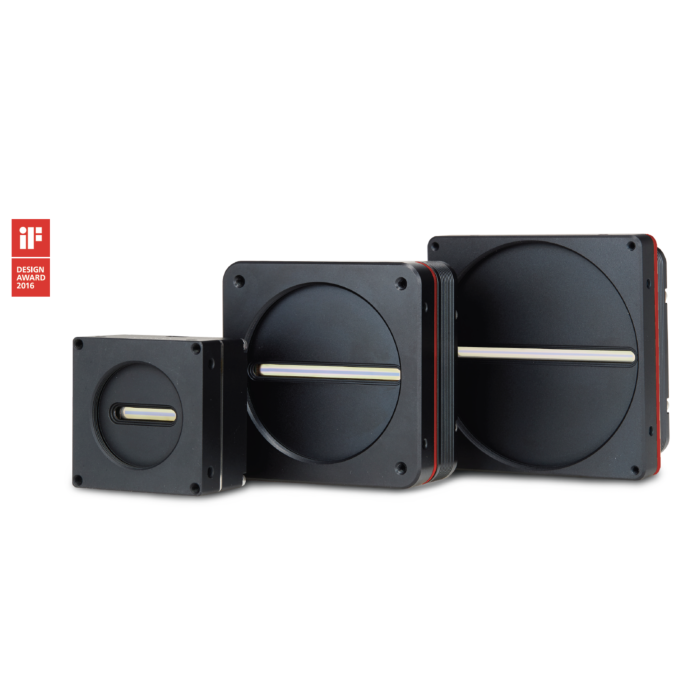

Vieworks VT-4K7C-H120A-128 4096 × 128 resolution, 125 ㎑, Hybrid Color TDI Line Scan Sensor, CameraLink M72 Mount TDI Line Scan Camera

The Vieworks VT-4K7C-H120A-128 is a high-performance TDI line scan camera, designed to meet the demanding needs of high-speed, high-sensitivity imaging applications. Featuring a 4096 x 128 pixel resolution with a 7.0 µm pixel size, it offers superior image quality and precision. The camera’s maximum line rate of 125 kHz at full resolution ensures fast image capture, while the 120 kHz line rate with 2x2 binning allows for even faster operation. Equipped with 32 to 128 TDI stages, the VT-4K7C-H120 achieves up to 256 times greater sensitivity compared to conventional line scan cameras, making it ideal for applications requiring high-speed, low-noise imaging. With the ability to deliver up to 0.51 Gpix/s throughput, the camera ensures high-performance data transfer for rapid processing.

The VT-4K7C-H120 comes with a Camera Link interface (Base/Medium/Full/10 Tap), providing flexible connectivity options. It also supports analog gain (1× to 4×) and digital gain (1.0× to 8.0×), offering precise control over image quality. The camera features anti-blooming, advanced PRNU/DSNU correction, and user-defined gamma correction, ensuring exceptional image clarity. Its M72 lens mount makes it compatible with a wide range of lenses for tailored system designs. With an operating temperature range of 0°C to 40°C and compact dimensions of 90mm x 90mm x 38mm, the VT-4K7C-H120 is built for robust industrial applications, including flat panel display, wafer, and PCB inspections.
