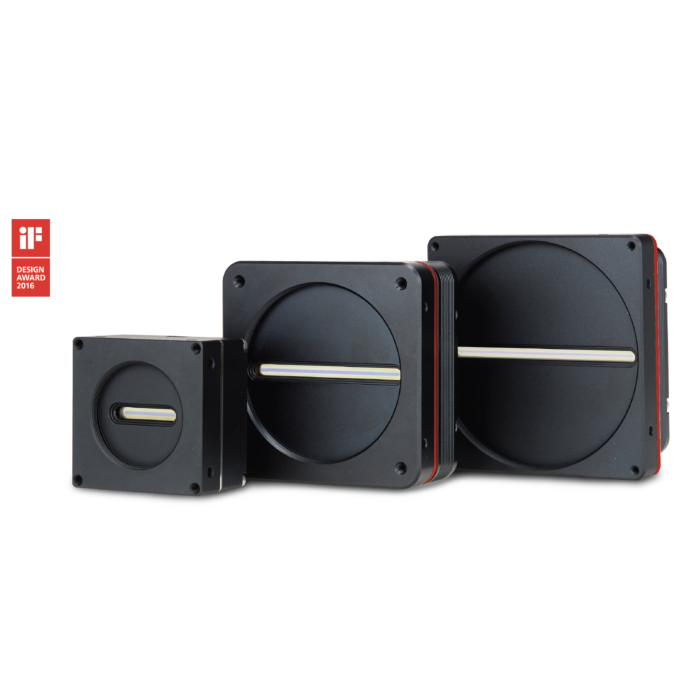

Vieworks VT-4K7C-E120A-32 4096 × 32 resolution, 125 ㎑, Hybrid Color TDI Line Scan Sensor, CameraLink M72 Mount TDI Line Scan Camera

The Vieworks VT-4K7C-E120A-32 is a high-performance TDI line scan camera engineered for applications requiring fast image capture and superior sensitivity. Featuring a resolution of 4096x32 pixels and a 7.0 µm pixel size, it delivers high-quality imaging with enhanced detail and minimal noise. The camera supports line rates up to 125 kHz at full resolution (4096 pixels), providing up to 0.51 Gpix/s throughput. It offers flexibility with adjustable line rates, from 1 kHz to 125 kHz, and supports binning modes for optimized performance. The sensor’s hybrid TDI technology enables up to 128x greater sensitivity, making it ideal for low-light, high-speed environments.

With the ability to operate in bidirectional mode and up to 256 TDI stages, the VT-4K7C-E120 maximizes throughput for high-speed inspection tasks. Its Camera Link interface (Base/Medium/Full/10 Tap) supports multiple pixel data formats (8-bit, 10-bit, and 12-bit), with a pixel clock frequency of 85 MHz, ensuring fast data transmission. The camera includes a 4 MB image memory, customizable gain control (analog: 1x to 4x, digital: 1.0x to 8.0x), and black level correction, ensuring exceptional image quality. It’s perfectly suited for applications like flat panel display inspection, printed circuit board inspection, and wafer inspection, offering robust reliability in varying environmental conditions with an operating temperature range from 0°C to 40°C.

Features:

• Resolution: 4096 × 32
• Max Line Rate: 125 kHz
• TDI Stages: 32, Bidirectional (up to 256)
• Pixel Size: 7.0 µm × 7.0 µm
• Pixel Data Formats: 8-bit, 10-bit, 12-bit
• Camera Link Interface
• Power: 10 ~ 30 V DC, 12 W
• Lens Mount: M72 × 0.75
• Image Memory: 4 MB
• Operating Temp: 0°C ~ 40°C

Applications:

• Flat Panel Display Inspection
• PCB and Wafer Inspection
• High-Speed Document Scanning
• Semiconductor Inspection
• Industrial Automation
