M42 Mount based TDI Line Scan Cameras with the CXP-6 Interface
SKU

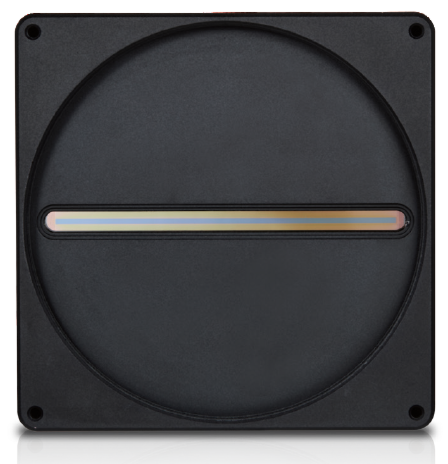

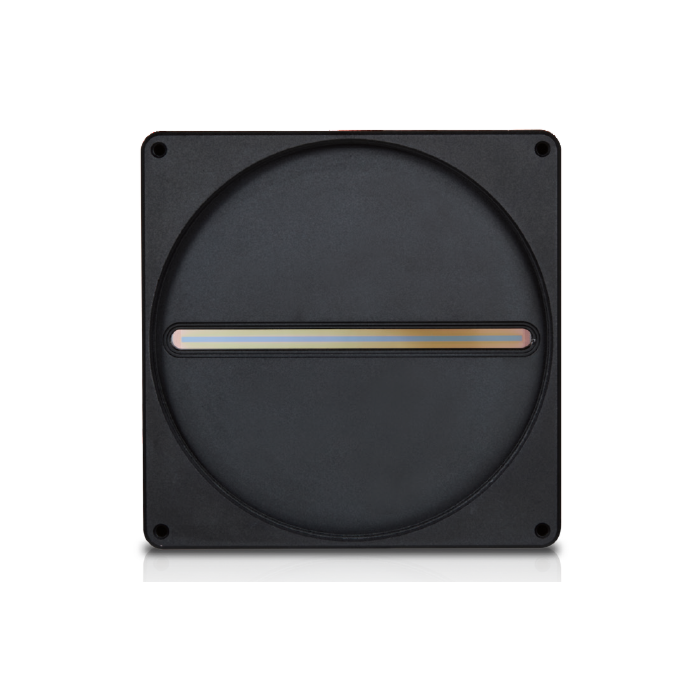

Vieworks VT-4K5X-E200-64

VT series, Vieworks’ Time Delayed Integration line scan cameras, is designed for applications where faster line rates and higher sensitivity are crucial. Vieworks’ advanced TDI line scan technology based on the outstanding hybrid imaging sensors allows image captures as fast as 250 ㎑ line rates with up to 128× higher sensitivity using the M72 mount based VT-9K7X camera.

Even superior resolution and sensitivity, up to 23360 pixel resolution at 100 ㎑ line rate and 256× greater sensitivity can be achieved using the M95 mount based VT-23K3.5X camera. A diverse lineup of VT TDI line scan cameras is now available at reasonable prices to meet various system design requirements including resolution, line rate, sensitivity and lens mount (M42/M72/M95) specifications.

VT series is available with Camera Link or the latest CoaXPress interface standard to meet application-specific requirements. Featured with high speed and high sensitivity, this brand new technology is ideal for demanding applications such as flat panel display inspection, wafer inspection, printed circuit board inspection, and high-performance document scanning.


Features:


  • 3k / 4k / 6k / 9k / 12k / 16k / 18k / 23k TDI Line Scan Cameras
  • Bidirectional Operations with up to 256 TDI stages
  • CoaXPress or Camera Link Interface
  • Anti-blooming
  • Advanced PRNU and DSNU Correction
  • Area Scan Mode for Camera Alignment

Applications:

  • Flat Panel Display Inspection
  • Printed Circuit Board Inspection
  • Wafer Inspection
  • High Performance Document Scanning
Resolution (H × V) 4640 X 64
Pixel Size 5.0 ㎛ × 5.0 ㎛
Interface CoaXPress (CXP-6, 2 CH)
Max. Line Rate 200 ㎑
Max. Line Rate (2 X 2 Binning) 176 ㎑
Min. Line Rate 1 ㎑
Camera Image Memory 4 MB
Pixel Data Format 8 / 10 / 12 bit
TDI Stage 64
Trigger Mode Free-Run, Timed, Trigger Width
Throughput 0.93 Gpix/s
Gamma Correction User Defined Lookup Table (LUT)
Black Level -255 - 255 LSB at 8 bit
Gain Control Analog Gain: 1×, 2×, 3×, 4× / Digital Gain: 1.0× ~ 8.0×
Lens Mount M42 × 1 (C or F-mount is available upon request)
Dimension / Weight 60 ㎜ × 60 ㎜ × 36 ㎜ / 223 g
Temperature Ambient Operating: 0℃ ~ 50℃ (Housing: 10℃ ~ 50℃), Storage: -40℃ ~ 70℃
Power 10 - 30 V DC
Power Dissipation Typ. 4.0 W
API SDK Vieworks Imaging Solution 7.X
