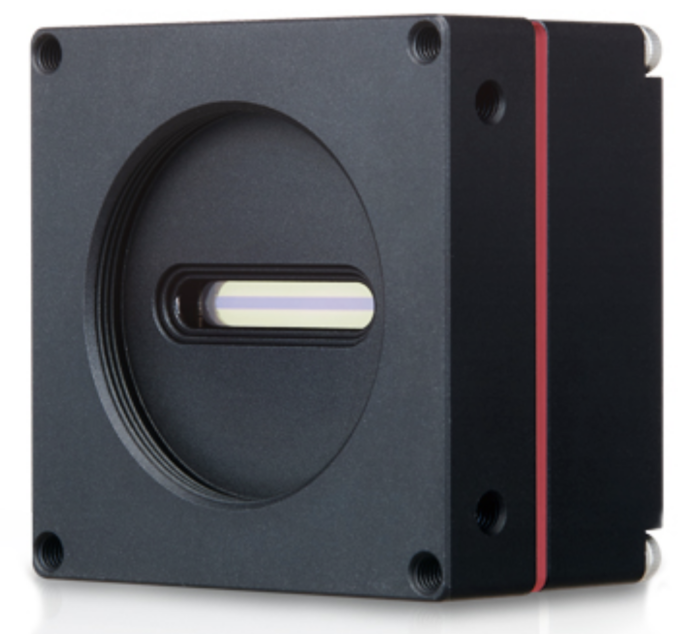

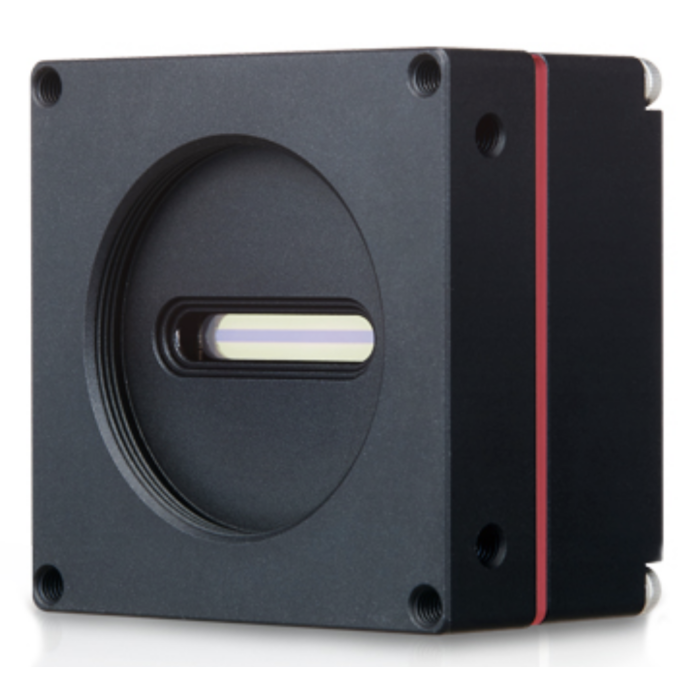

Vieworks VT-4K5G-E26A-64 Hybrid TDI Line Scan Camera | 4640 × 64 Resolution, 26 kHz, GigE Interface

The Vieworks VT-4K5G-E26A-64 is a high-performance hybrid TDI line scan camera engineered to deliver unmatched image precision for industrial inspection systems. Featuring a 4640 × 64 resolution, 26 kHz line rate, and 5.0 µm pixel size, this camera combines the advantages of both CCD and CMOS technologies to achieve exceptional speed and sensitivity. Its M42 lens mount provides solid compatibility with a wide range of optical systems, supporting both free-run and external trigger synchronization for flexible applications.

Designed for maximum reliability and throughput, the VT4K5GE26A64 supports GigE data transfer, enabling smooth, high-volume imaging performance in demanding environments. With built-in advanced DSNU/PRNU correction, customizable gamma and black-level control, and high dynamic range support, this camera is ideal for precision imaging tasks such as flat panel display inspection, wafer analysis, and high-speed document scanning.

Features:

• Hybrid TDI sensor combining CCD and CMOS performance.
• 4640 × 64 resolution with 5.0 µm pixel size.
• High-speed 26 kHz line rate via GigE interface.
• Bidirectional TDI stages up to 64 for maximum sensitivity.
• Advanced DSNU/PRNU correction for enhanced image accuracy.
• External trigger, exposure, and strobe synchronization control.
• Compact and robust design with M42 lens mount.
• User-defined LUT, gain, and gamma settings for fine image tuning.
• Compliant with CE, FCC, and KC standards.

Applications:

• Flat Panel Inspection
• PCB Inspection
• Wafer Inspection
• Document Scanning
• Machine Vision
• Metrology
