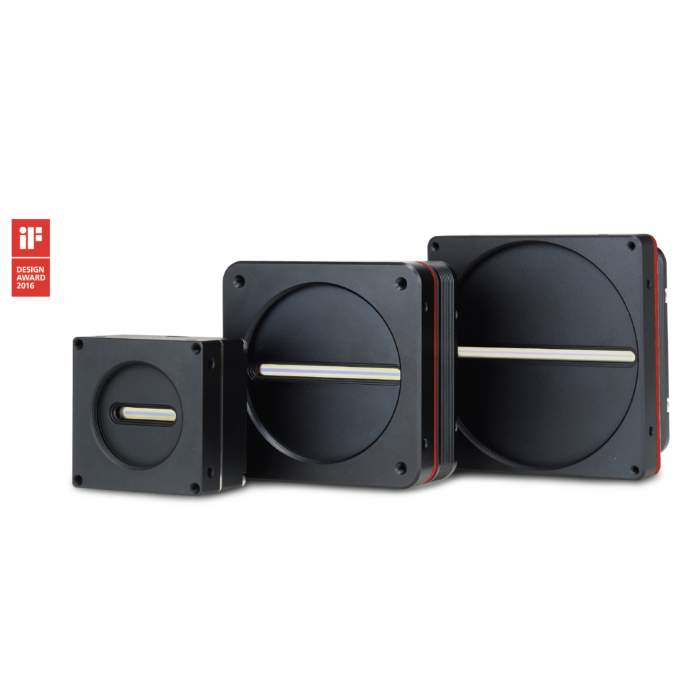

Vieworks VT-4K5C-H100 TDI Line Scan Camera, 4640 × 256 Resolution, 100 kHz, Hybrid Color Sensor, Camera Link, M42 Mount
The Vieworks VT-4K5C-H100 is a high-speed TDI line scan camera designed for precision industrial imaging applications. Featuring a 4640 × 256 pixel resolution and 5.0 µm × 5.0 µm pixel size, it delivers exceptional image quality with superior sensitivity. Its hybrid color sensor and adjustable gain control enable accurate capture of dynamic scenes with minimal noise.
Engineered for demanding inspection systems, the VT-4K5C-H100 supports a maximum line rate of 100 kHz and up to 256 TDI stages, offering up to 128× enhanced sensitivity over standard line scan cameras. Equipped with a Camera Link interface, low power consumption, and robust thermal stability, it is ideal for applications such as flat panel inspection, wafer analysis, and PCB quality control.
Features:
- 4640 × 256 pixel resolution with 5.0 µm pixel size
- 100 kHz maximum line rate for high-speed imaging
- Up to 256 configurable TDI stages for enhanced sensitivity
- Camera Link (Base/Medium/Full/10 Tap) connectivity
- Analog and digital gain control for fine image tuning
- Low power consumption at only 3.5 W (typical)
- M42 × 1 lens mount; optional C or F mount
- Reliable operation from 0°C to 50°C
Applications:
- Display Inspection
- Wafer Analysis
- PCB Inspection
- Document Scanning
- Quality Control
| Resolution (H × V) | 4640 x 256 |
| Pixel Size | 5.0 ㎛ × 5.0 ㎛ |
| Interface | Camera Link Base / Medium / Full / 10 Tap, 26-pin SDR Connector |
| Max. Line Rate | 2 x 2 Binning: 100㎑ |
| Max. Line Rate | 100㎑ |
| Min. Line Rate | 1㎑ |
| Camera Image Memory | 3MB |
| Camera Link Pixel Clock | 40 ㎒ / 60 ㎒ / 80 ㎒ / 85 ㎒ |
| Pixel Data Format | 8 bit (2/4/8/10 Tap) / 10 bit (2/4 Tap) / 12 bit (2/4 Tap) |
| TDI Stages | 64 / 128 / 192 / 256 |
| Trigger Mode | Free-Run, Timed, Trigger Width |
| Throughput | 0.32 Gpix/s |
| Gamma Correction | User Defined Lookup Table (LUT) |
| Black Level Control | -255 ~ 255 at 8 bit |
| Gain Control | Analog Gain: 1×, 2×, 3×, 4× / Digital Gain: 1.0× ~ 8.0× |
| Lens Mount | M42 x 1㎜(C or F-mount is available upon request) |
| Dimension / Weight | 60 ㎜ × 60 ㎜ × 36 ㎜ / 223 g |
| Temperature | Ambient Operating: 0℃ ~ 40℃ (Housing: 10℃ ~ 55℃)Storage: -40℃ ~ 70℃ |
| Power | 10 -30 V DC |
| Power Dissipation | Typ. 4.0 W |
| Configuration SW | Configurator |
