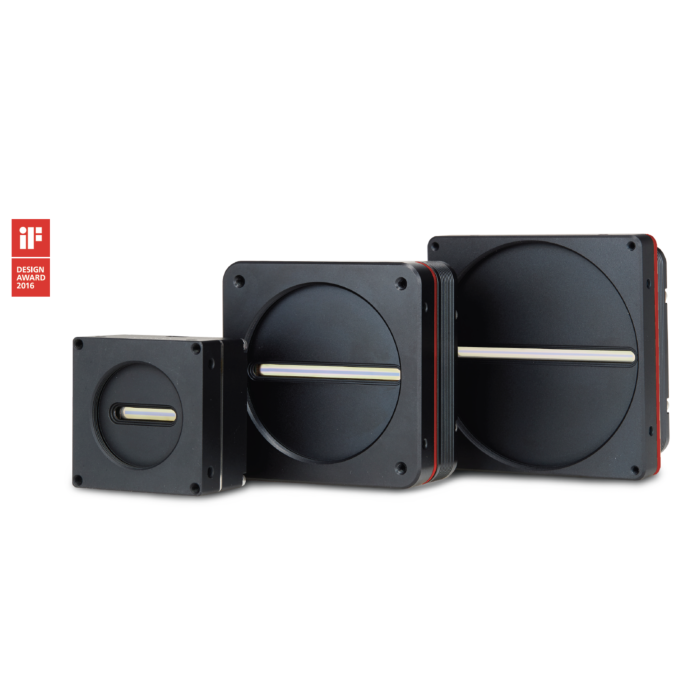

Vieworks VT-4K5C-E100 TDI Line Scan Camera, 4640 × 64 Resolution, 100 kHz, Hybrid Color Sensor, Camera Link, M42 Mount
The Vieworks VT-4K5C-E100 is a precision-engineered TDI line scan camera designed for demanding industrial inspection and high-speed imaging applications. Delivering outstanding 4640×64 resolution with a 5.0 µm pixel size, it achieves up to 100 kHz line rates while maintaining excellent image quality and low noise. With 64 advanced Time Delayed Integration (TDI) stages, this camera enhances sensitivity up to 256× over conventional sensors, capturing even the faintest details in low-light conditions.
Equipped with a flexible Camera Link interface (Base, Medium, Full, 10 Tap), the VT-4K5C-E100 integrates seamlessly into existing machine vision systems. It supports multiple pixel formats (8, 10, and 12-bit) and features adjustable analog and digital gain for optimal dynamic range control. Measuring just 60 × 60 × 36 mm and weighing 223 g, the camera is both compact and efficient, ideal for industrial inspection, PCB verification, wafer testing, and other high-throughput visual inspection systems.
Features:
- 4640×64 resolution with 5.0 µm pixel size
- Line rate up to 100 kHz for high-speed imaging
- 64 TDI stages for enhanced light sensitivity and SNR
- Flexible Camera Link interface: Base, Medium, Full, 10 Tap
- Supports 8 / 10 / 12-bit pixel data formats
- Analog and digital gain from 1× to 8.0×
- Throughput up to 0.46 Gpix/s
- Compact, lightweight design: 60×60×36 mm, 223 g
- Low power consumption (typical 3.5 W)
- Wide operating range: 0°C to 50°C
Applications:
- Flat panel inspection
- PCB inspection
- Wafer inspection
- Document scanning
- Machine vision
- Quality control
| Resolution (H × V) | 4640 x 64 |
| Pixel Size | 5.0 ㎛ × 5.0 ㎛ |
| Interface | Camera Link Base / Medium / Full / 10 Tap, 26-pin SDR Connector |
| Max. Line Rate | 2 x 2 Binning: 100㎑ |
| Max. Line Rate | 100㎑ |
| Min. Line Rate | 1㎑ |
| Camera Image Memory | 4MB |
| Camera Link Pixel Clock | 40 ㎒ / 60 ㎒ / 80 ㎒ / 85 ㎒ |
| Pixel Data Format | 8 bit (2/4/8/10 Tap) / 10 bit (2/4 Tap) / 12 bit (2/4 Tap) |
| TDI Stages | 64 |
| Trigger Mode | Free-Run, Timed, Trigger Width |
| Throughput | 0.46 Gpix/s |
| Gamma Correction | User Defined Lookup Table (LUT) |
| Black Level Control | -255 ~ 255 at 8 bit |
| Gain Control | Analog Gain: 1×, 2×, 3×, 4× / Digital Gain: 1.0× ~ 8.0× |
| Lens Mount | M42 x 1㎜(C or F-mount is available upon request) |
| Dimension / Weight | 60 ㎜ × 60 ㎜ × 36 ㎜ / 223 g |
| Temperature | Ambient Operating: 0℃ ~ 40℃ (Housing: 10℃ ~ 55℃)Storage: -40℃ ~ 70℃ |
| Power | 10 -30 V DC |
| Power Dissipation | Typ. 4.0 W |
| Configuration SW | Configurator |
