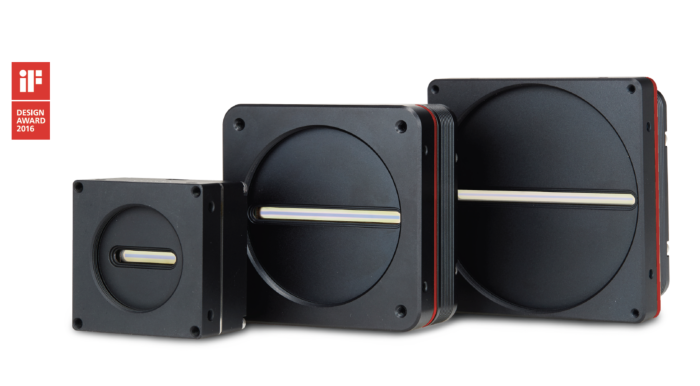

Vieworks VT-4K14C-H120A-64 TDI Line Scan Camera, 4096 × 64 Resolution, 125 kHz, Hybrid Color Sensor, Camera Link, M72 Mount

The Vieworks VT-4K14C-H120A-64 is a high-performance TDI line scan camera engineered for industrial imaging applications demanding exceptional speed and sensitivity. Its 4096 × 64 hybrid color sensor achieves superior image quality with minimal noise at up to 125 kHz line rate. Featuring 16 to 64 TDI stages and 14 μm pixel size, the camera ensures outstanding light sensitivity, ideal for precision inspection where accuracy and speed are mission-critical.

Built for reliability, the VT4K14CH120A64 integrates a Camera Link interface supporting Base, Medium, Full, and 10 Tap modes for data throughput up to 0.51 Gpix/s. With advanced PRNU/DSNU correction, anti-blooming circuits, and a user-defined LUT gamma function, users gain precise image uniformity. Its robust 90 mm × 90 mm × 38 mm body with M72 lens mount operates efficiently at 12 W power consumption, ensuring consistent performance across demanding manufacturing environments.

Features:

• 4096 × 64 resolution, 14 μm pixel size
• Hybrid Color TDI sensor with 16–64 stages for high sensitivity
• Camera Link Base/Medium/Full/10 Tap (0.51 Gpix/s throughput)
• 125 kHz max. line rate for rapid scanning
• Analog gain (1×–4×) and digital gain (1.0×–8.0×)
• Advanced PRNU/DSNU correction, anti-blooming function
• User-defined LUT gamma correction for optimized tone response
• Compact 90 × 90 × 38 mm design, 500 g weight
• Operating temperature: 0°C–40°C, power 12 W (typ.)

Applications:

• Flat Panel Inspection
• PCB Inspection
• Wafer Inspection
• Document Scanning
• Industrial Imaging
