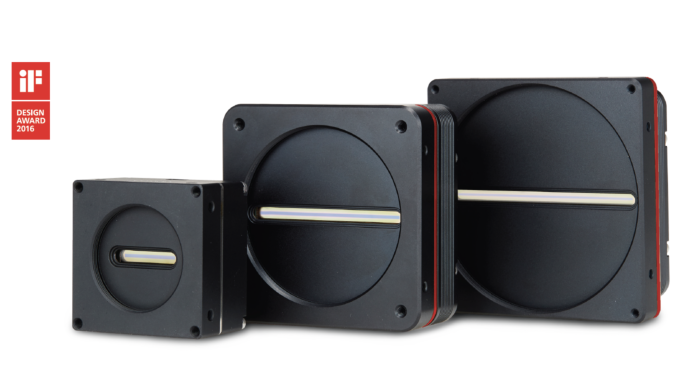

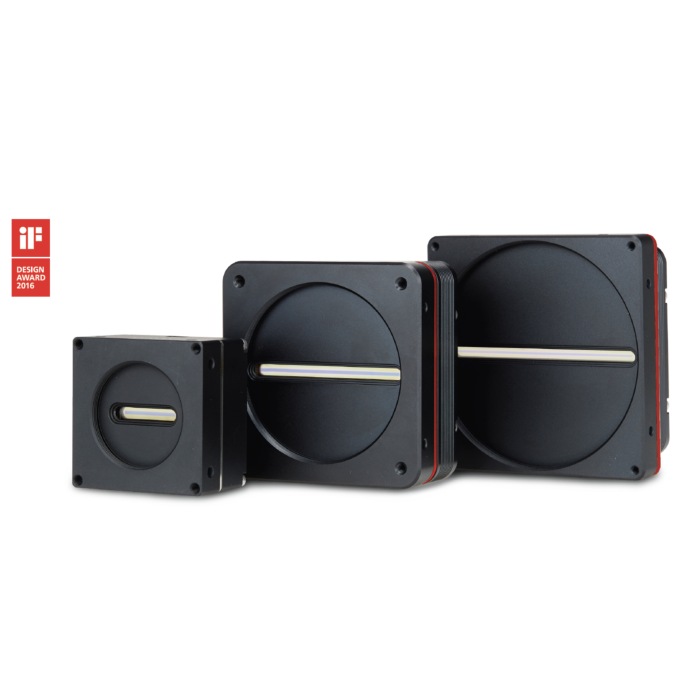

Vieworks VT-4K14C-E120A-16 4096 × 16 resolution, 125 ㎑, Hybrid Color TDI Line Scan Sensor, CameraLink M72 Mount TDI Line Scan Camera
The Vieworks VT-4K14C-E120A TDI line scan camera is engineered for high-speed and high-sensitivity performance, featuring an advanced hybrid TDI sensor that enables superior imaging quality at incredible line rates. With a resolution of 4096 × 16 pixels and a 14.0 ㎛ × 14.0 ㎛ pixel size, the camera delivers precision image capture with exceptional clarity. It achieves a maximum line rate of 125 ㎑ at full resolution, providing an impressive throughput of 0.51 Gpix/s, making it ideal for high-speed inspection and imaging tasks. This camera offers the flexibility to operate at varying binning levels (up to 2 × 2 binning) to adjust speed and performance as required for specific applications. The 16 TDI stages ensure optimal sensitivity, delivering detailed images even under low-light conditions, making it a top choice for industries such as flat-panel display inspection, PCB inspection, and wafer inspection.
Equipped with a Camera Link interface (Base/Medium/Full/10 Tap) and a 26-pin MDR connector, the VT4K14CE120A integrates seamlessly into modern imaging systems. It supports 8-bit, 10-bit, and 12-bit pixel data formats for enhanced image fidelity, and it comes with adjustable analog gain (1× to 4×) and digital gain (1.0× to 8.0×), allowing fine-tuned control over image brightness. With built-in gamma correction, PRNU, and DSNU correction, the camera minimizes image distortions for precise results. Its compact design (90 mm × 90 mm × 38 mm) and wide operational temperature range (0℃ to 40℃) ensure versatility and reliability in challenging environments. Whether it's used for high-performance document scanning or intricate industrial inspections, this camera delivers outstanding performance and flexibility in a wide range of demanding applications.
Features:
- 4096 × 16 resolution
- 125 ㎑ line rate
- Hybrid Color TDI Line Scan Sensor
- 16 TDI stages for high sensitivity
- CameraLink interface
- M72 lens mount
- Gamma, PRNU, DSNU correction
- Analog & digital gain control
- 0.51 Gpix/s throughput
- Compact design (90 mm × 90 mm × 38 mm)
Applications:
- Flat panel display inspection
- PCB inspection
- Wafer inspection
- High-performance document scanning
- Industrial imaging systems
- Machine vision
| Resolution (H × V) | 4096 x 16 |
| Pixel Size | 14.0 ㎛ × 14.0 ㎛ |
| Interface | Camera Link Base / Medium / Full / 10 Tap, 26-pin SDR Connector |
| Max. Line Rate | - |
| Max. Line Rate | 125㎑ |
| Min. Line Rate | 1㎑ |
| Camera Image Memory | 4MB |
| Camera Link Pixel Clock | 85 ㎒ |
| Pixel Data Format | 8 bit (2/4/8/10 Tap) / 10 bit (2/4 Tap) / 12 bit (2/4 Tap) |
| TDI Stages | 16 |
| Trigger Mode | Free-Run, Timed, Trigger Width |
| Throughput | 0.51 Gpix/s |
| Gamma Correction | User Defined Lookup Table (LUT) |
| Black Level Control | -255 ~ 255 at 8 bit |
| Gain Control | Analog Gain: 1×, 2×, 3×, 4× / Digital Gain: 1.0× ~ 8.0× |
| Lens Mount | M72 x 0.75㎜ |
| Dimension / Weight | 90 ㎜ × 90 ㎜ × 38 ㎜ / 500 g |
| Temperature | Ambient Operating: 0℃ ~ 40℃ (Housing: 10℃ ~ 55℃) Storage: -40℃ ~ 70℃ |
| Power | 10 -30 V DC |
| Power Dissipation | Typ. 12.0 W |
| Configuration SW | Configurator |
