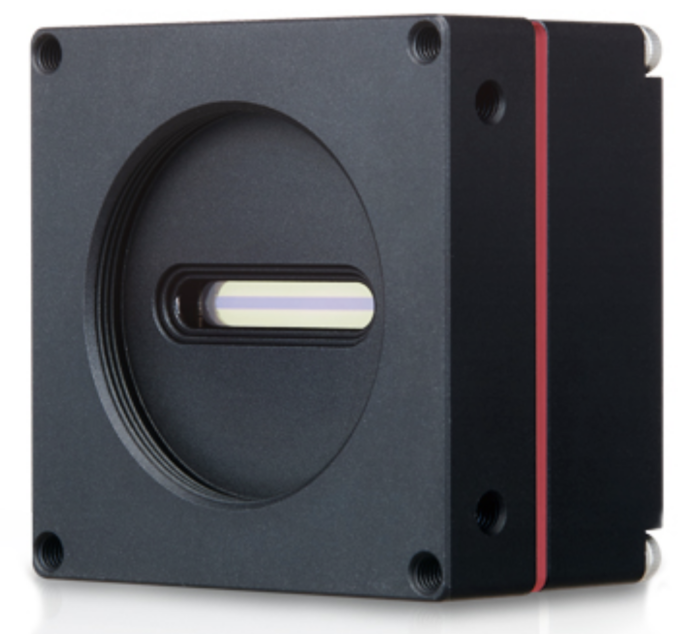

Vieworks VT-3K7G-H38A-128 3200 × 128 resolution, 38 ㎑, Hybrid TDI Line Scan sensor, M42 format, pixel size: 7.0

The VT-3K7G, VT-4K5G and VT-6K3.5G, the new hybrid Time Delayed Integration (TDI) line scan cameras equipped with the GigE interface, provide faster line rates and higher sensitivity than existing line scan cameras. With hybrid TDI line scan technology combining the strengths of both CCD and CMOS image sensors, the VT-3K7G-E38A-32 camera features up to 38 ㎑ line rates at 3k resolution and 32× greater sensitivity.

Even superior resolution and sensitivity, up to 19 ㎑ line rates at 6k resolution and 256× greater sensitivity can be achieved using the VT-6K3.5G-H19A-256 camera. Featured with high speed and high sensitivity, these cameras are ideal for demanding applications such as flat panel inspection, wafer inspection, printed circuit board inspection, and high-performance document scanning.

Features:

• M42-mount based 3k / 4k / 6k TDI Line Scan Cameras
• GigE Interface
• Bidirectional Operation with up to 256 TDI Stages
• Exposure Control
• Advanced DSNU and PRNU Correction
• Trigger Rescaler and Strobe Output Control

Applications:

• Flat Panel Display Inspection
• Printed Circuit Board Inspection
• Machine Vision Inspection
• Microscopy and Metrology
