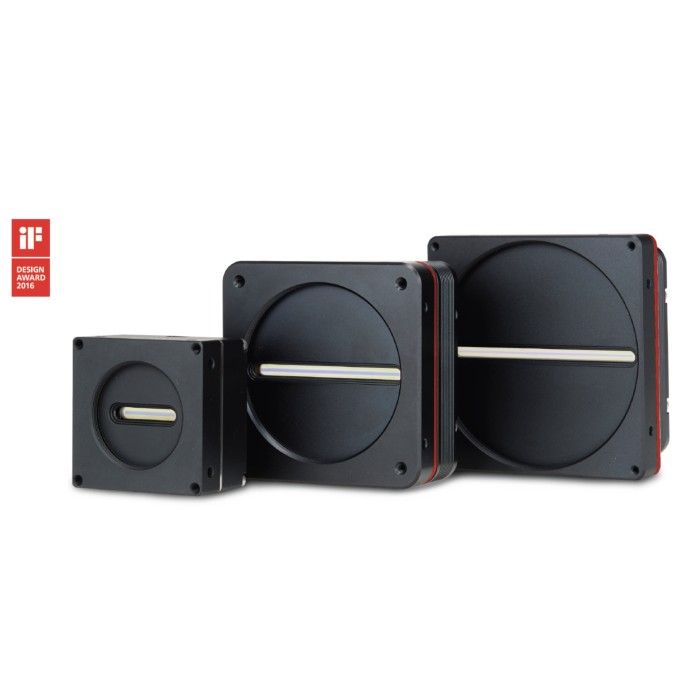

Vieworks VT-3K7C-H100 TDI Line Scan Camera, 3200 × 128 Resolution, 100 kHz, Hybrid Color Sensor, Camera Link, M42 Mount
The Vieworks VT-3K7C-H100 is a precision-engineered TDI line scan camera designed for ultra-fast, high-sensitivity industrial imaging. Featuring a 3200 × 128 pixel resolution with a 7.0 µm pixel size and line scan rates up to 100 kHz, it excels in capturing high-quality images with exceptional clarity and minimal motion blur. Its hybrid TDI sensor technology provides up to 128× greater sensitivity than conventional line scan systems, ensuring reliable image performance under challenging lighting conditions.
Built for demanding high-speed inspection applications, the VT3K7CH100 supports Camera Link Base, Medium, and Full configurations for seamless data throughput up to 0.32 Gpix/s. It includes advanced features like gamma correction, anti-blooming, and PRNU/DSNU calibration, offering precise color and brightness consistency. Compact at 60 × 60 × 36 mm and equipped with an M42 mount, this camera integrates easily into machine vision systems for display, PCB, or wafer inspection tasks.
Features:
- 3200 × 128 pixel hybrid TDI color sensor
- Up to 128× higher sensitivity than standard line scan cameras
- Max line rate: 100 kHz; throughput up to 0.32 Gpix/s
- Camera Link Base/Medium/Full interface (10 Tap, 26-pin SDR)
- Configurable TDI stages (32 to 128) for sensitivity control
- User-defined gamma correction and black level adjustment
- Analog and digital gain (up to 8×)
- Compact, durable 60 × 60 × 36 mm body
- Low power—3.5 W typical power dissipation
- M42 × 1 lens mount (C/F-mount optional)
Applications:
- Flat Panel Inspection
- PCB Analysis
- Wafer Inspection
- Machine Vision
- Microscopy Imaging
- Metrology Systems
| Resolution (H × V) | 3200 x 128 |
| Pixel Size | 7.0 ㎛ × 7.0 ㎛ |
| Interface | Camera Link Base / Medium / Full / 10 Tap, 26-pin SDR Connector |
| Max. Line Rate | 2 x 2 Binning: 100㎑ |
| Max. Line Rate | 100㎑ |
| Min. Line Rate | 1㎑ |
| Camera Image Memory | 3MB |
| Camera Link Pixel Clock | 40 ㎒ / 60 ㎒ / 80 ㎒ / 85 ㎒ |
| Pixel Data Format | 8 bit (2/4/8/10 Tap) / 10 bit (2/4 Tap) / 12 bit (2/4 Tap) |
| TDI Stages | 32 / 64 / 96 / 128 |
| Trigger Mode | Free-Run, Timed, Trigger Width |
| Throughput | 0.32 Gpix/s |
| Gamma Correction | User Defined Lookup Table (LUT) |
| Black Level Control | -255 ~ 255 at 8 bit |
| Gain Control | Analog Gain: 1×, 2×, 3×, 4× / Digital Gain: 1.0× ~ 8.0× |
| Lens Mount | M42 x 1㎜(C or F-mount is available upon request) |
| Dimension / Weight | 60 ㎜ × 60 ㎜ × 36 ㎜ / 223 g |
| Temperature | Ambient Operating: 0℃ ~ 40℃ (Housing: 10℃ ~ 55℃)Storage: -40℃ ~ 70℃ |
| Power | 10 -30 V DC |
| Power Dissipation | Typ. 3.5 W |
| Configuration SW | Configurator |
