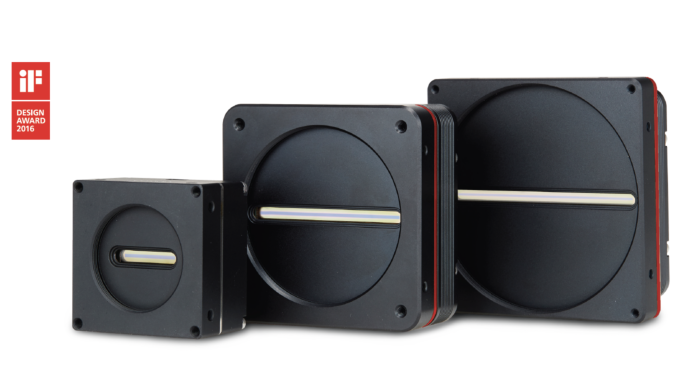

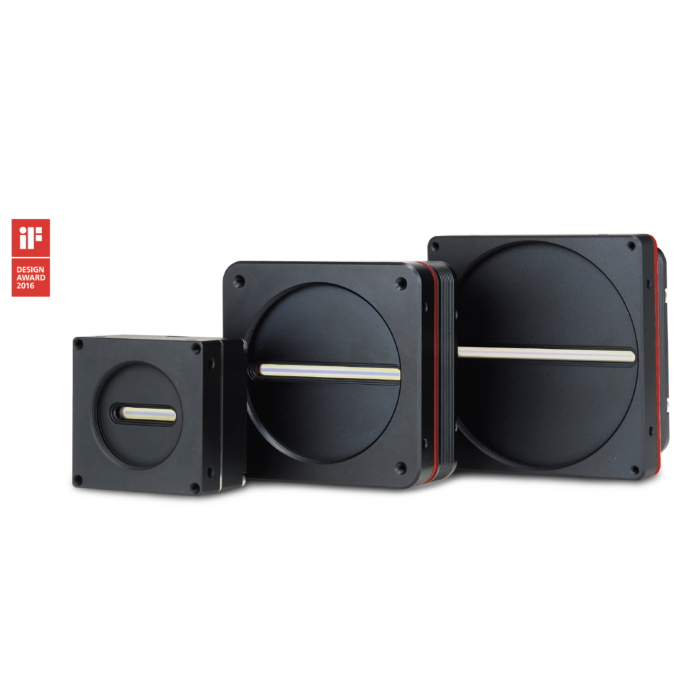

Vieworks VT-3K7C-E100 3200 x 32 resolution, 100 ㎑, Hybrid Color TDI Line Scan Sensor, CameraLink M42 Mount TDI Line Scan Camera
The Vieworks VT-3K7C-E100 is a high-performance TDI line scan camera designed for fast, high-sensitivity imaging in demanding applications. Featuring a 3200 x 32 resolution with a 7 µm pixel size, this camera delivers precise image capture at a maximum line rate of 100 kHz (at 2x2 binning), offering impressive data throughput up to 0.32 Gpix/s. The camera employs advanced hybrid TDI (Time Delayed Integration) technology, with 32 stages that enhance light sensitivity by up to 256 times compared to traditional line scan cameras. This results in superior image quality with low noise, even in low-light environments. The VT3K7CE100 supports multiple pixel data formats (8-bit, 10-bit, and 12-bit), providing flexibility for various imaging needs, and allows for precise control over exposure with both analog and digital gain options ranging from 1x to 8x.
The camera is equipped with a Camera Link interface (Base/Medium/Full), supporting 10-tap, 26-pin SDR connectors for efficient data transfer. With a selectable pixel clock of up to 85 MHz, it ensures high-speed image processing with minimal latency. Its robust design operates in ambient temperatures from 0°C to 50°C, and is powered by a 10-30 V DC supply, with a typical power dissipation of just 3.5 W. Additionally, the VT-3K7C-E100 features versatile trigger modes (free-run, timed, and trigger width) and an anti-blooming function, making it ideal for applications in flat panel display inspection, wafer and PCB inspection, and high-performance document scanning.
Features:
- 3200 x 32 Resolution
- 100 kHz Line Rate
- Hybrid TDI Sensor
- Camera Link Interface
- 0.32 Gpix/s Throughput
- 40-85 MHz Pixel Clock
- Analog/Digital Gain Control
- 10-30 V DC Power
- Free-run/Timed Trigger Modes
- 0°C to 50°C Temperature Range
- M42 Mount
Applications:
- Flat Panel Display Inspection
- PCB Inspection
- Machine Vision Inspection
- Microscopy and Metrology
| Resolution (H × V) | 3200 x 32 |
| Pixel Size | 7.0 ㎛ × 7.0 ㎛ |
| Interface | Camera Link Base / Medium / Full / 10 Tap, 26-pin SDR Connector |
| Max. Line Rate | 2 x 2 Binning: 100㎑ |
| Max. Line Rate | 100㎑ |
| Min. Line Rate | 1㎑ |
| Camera Image Memory | 3MB |
| Camera Link Pixel Clock | 40 ㎒ / 60 ㎒ / 80 ㎒ / 85 ㎒ |
| Pixel Data Format | 8 bit (2/4/8/10 Tap) / 10 bit (2/4 Tap) / 12 bit (2/4 Tap) |
| TDI Stages | 32 |
| Trigger Mode | Free-Run, Timed, Trigger Width |
| Throughput | 0.32 Gpix/s |
| Gamma Correction | User Defined Lookup Table (LUT) |
| Black Level Control | -255 ~ 255 at 8 bit |
| Gain Control | Analog Gain: 1×, 2×, 3×, 4× / Digital Gain: 1.0× ~ 8.0× |
| Lens Mount | M42 x 1㎜(C or F-mount is available upon request) |
| Dimension / Weight | 60 ㎜ × 60 ㎜ × 36 ㎜ / 223 g |
| Temperature | Ambient Operating: 0℃ ~ 40℃ (Housing: 10℃ ~ 55℃)Storage: -40℃ ~ 70℃ |
| Power | 10 -30 V DC |
| Power Dissipation | Typ. 3.5 W |
| Configuration SW | Configurator |
