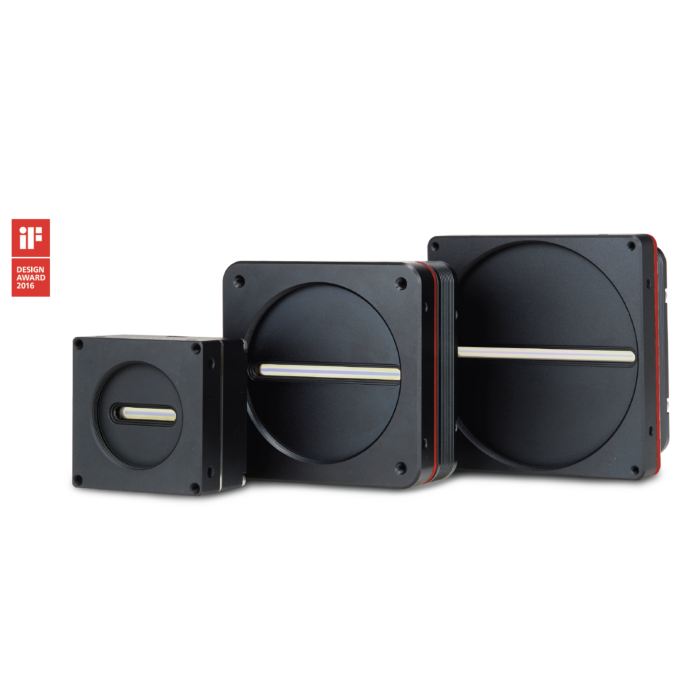

Vieworks VT-18K3.5C-H40A-256 TDI Line Scan Camera, 17824 × 256 Resolution, 47 kHz, Hybrid Color Sensor, Camera Link, M72 Mount

The Vieworks VT-18K3.5C-H40A-256 is a precision-engineered TDI line scan camera designed for industrial inspection systems requiring unmatched image resolution, sensitivity, and throughput. Featuring a 17824 × 256 pixel resolution with a 3.5 µm pixel size, this hybrid color sensor captures intricate details with superior clarity and minimal noise. With line rates up to 47 kHz at full resolution, or an impressive 80 kHz with 2×2 binning, it provides high-speed image acquisition ideal for continuous scanning and dynamic production lines.

Engineered for flexibility, the VT-18K3.5C-H40A-256 includes a Camera Link interface (Base/Medium/Full/10 Tap), 18 MB internal memory, and an 85 MHz pixel clock, enabling fast data transfer and stable performance. Its advanced imaging features—such as gamma correction, anti-blooming, PRNU/DSNU correction, and a user-defined LUT—enhance image fidelity even in challenging lighting. Compact and robust at 90 × 90 × 38 mm, this camera fits easily into machine vision systems for semiconductor, display, and printed circuit inspections where precision matters most.

Features:

• 17824 × 256 resolution, 3.5 µm pixel size
• Max 47 kHz line rate (12480 ROI) / 80 kHz with 2×2 binning
• 64–256 selectable TDI stages for sensitivity control
• Camera Link Base/Medium/Full/10 Tap interface
• 18 MB internal memory, 85 MHz pixel clock
• 0.83 Gpix/s throughput for fast imaging
• Analog/digital gain up to 8× with gamma correction
• Configurable LUT, anti-blooming, PRNU/DSNU correction
• Compact 90×90×38 mm size, 500g
• Reliable operation from 0°C to 40°C

Applications:

• Flat Panel Inspection
• Wafer Inspection
• PCB Analysis
• Document Scanning
• Industrial Imaging
