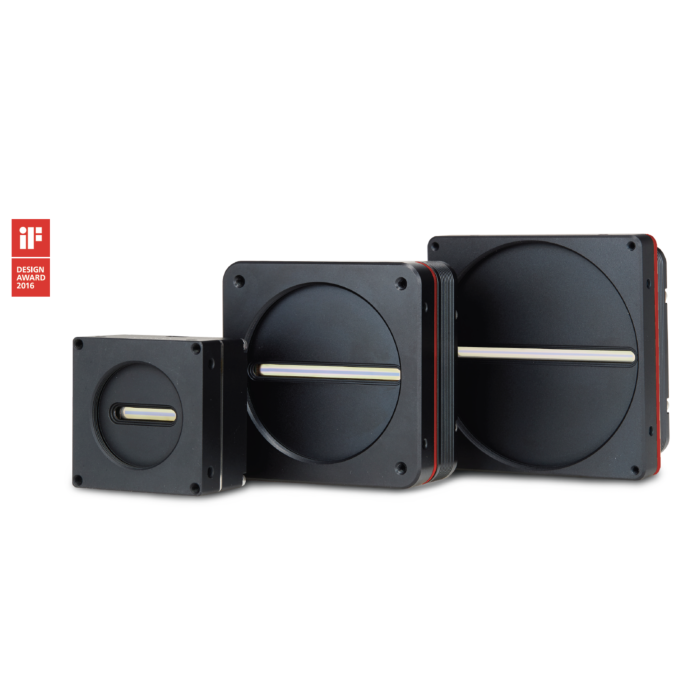

Vieworks VT-18K3.5C-E40A-64 TDI Line Scan Camera - 17,824 × 64 Resolution, 47 kHz, Hybrid Color Sensor, Camera Link, M72 Mount
The Vieworks VT-18K3.5C-E40A-64 is a state-of-the-art TDI line scan camera engineered for ultra-fast, high-resolution industrial imaging. With a native resolution of 17,824 x 64 pixels and a 3.5 µm pixel size, it delivers exceptionally sharp and precise image capture across diverse inspection environments. Featuring Camera Link Base, Medium, and Full configurations, this camera ensures high-speed data throughput up to 0.83 Gpix/s, enabling seamless integration in demanding production lines. Its advanced TDI sensor technology provides up to 256x higher sensitivity, making it a powerful solution for low-light and high-speed inspection tasks.
Optimized for both performance and efficiency, the VT18K3.5CE40A64 offers configurable analog (1×–4×) and digital (1.0×–8.0×) gain controls, user-defined gamma LUT, and PRNU/DSNU correction for consistent image uniformity. Its robust M72 lens mount, 18 MB internal memory, and compact 60 mm design ensure reliability in industrial inspection systems. Built for precision imaging applications like flat panel, wafer, PCB, and document inspection, this camera combines speed, sensitivity, and flexibility—making it an indispensable tool for professionals seeking high-performance imaging in industrial automation environments.
Features:
- Resolution: 17,824 x 64 pixels (3.5 µm)
- Max Line Rate: 47 kHz (12480 ROI), 80 kHz (2x2 binning)
- Sensitivity: Up to 256x greater sensitivity
- TDI Stages: 64-256
- Interface: Camera Link (Base/Medium/Full)
- Gain Control: Analog (1×-4×), Digital (1.0×-8.0×)
- Throughput: 0.83 Gpix/s
- Image Memory: 18 MB
- Pixel Data Format: 8, 10, 12 bit
- Temperature Range: 0°C to 40°C
- Power: 10 ~ 30 V DC, 12 W
- Lens Mount: M72 x 0.75
Applications:
- Flat Panel Inspection
- Wafer Inspection
- PCB Inspection
- Document Scanning
- Film Analysis
- Semiconductor Imaging
| Resolution (H × V) | 17824 x 64 |
| Pixel Size | 3.5 ㎛ × 3.5 ㎛ |
| Interface | Camera Link Base / Medium / Full / 10 Tap, 26-pin SDR Connector |
| Max. Line Rate | 47㎑ |
| Max. Line Rate (2 x 2 Binning) | 80㎑ |
| Min. Line Rate | 1㎑ |
| Camera Image Memory | 18MB |
| Camera Link Pixel Clock | 85 ㎒ |
| Pixel Data Format | 8 bit (2/4/8/10 Tap) / 10 bit (2/4 Tap) / 12 bit (2/4 Tap) |
| TDI Stages | 64 |
| Trigger Mode | Free-Run, Timed, Trigger Width |
| Throughput | 0.83 Gpix/s |
| Gamma Correction | User Defined Lookup Table (LUT) |
| Black Level Control | -255 ~ 255 at 8 bit |
| Gain Control | Analog Gain: 1×, 2×, 3×, 4× / Digital Gain: 1.0× ~ 8.0× |
| Lens Mount | M42 x 0.75㎜ |
| Dimension / Weight | 60 ㎜ × 60 ㎜ × 36 ㎜ / 223 g |
| Temperature | Ambient Operating: 0℃ ~ 40℃ (Housing: 10℃ ~ 55℃) Storage: -40℃ ~ 70℃ |
| Power | 10 -30 V DC |
| Power Dissipation | Typ. 4.5 W |
| Configuration SW | Configurator |
