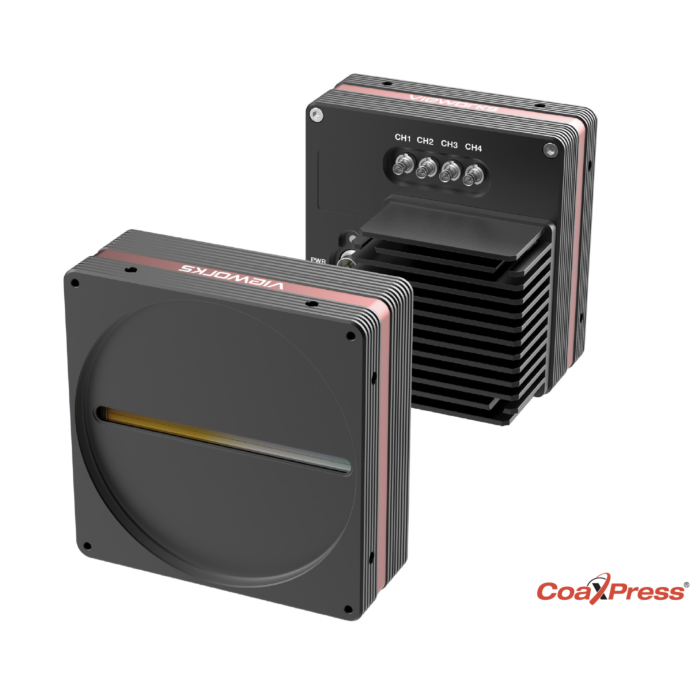

Vieworks VT-16K5X2-H300A 16384 x 256 resolution, Hybrid TDI Line Scan Sensor, CoaxPress, M95 Mount TDI Lines Scan Camera

The Vieworks VT-16K5X2-H300-256 is a high-performance hybrid Time Delayed Integration (TDI) line scan camera, combining the best aspects of CCD and CMOS sensors for enhanced sensitivity, speed, and image quality. With a 16K resolution (16,384 pixels) and a pixel size of 5.0 µm × 5.0 µm, the camera achieves up to 300 kHz line rates, ensuring rapid image capture while maintaining high precision. The TDI architecture enables multiple exposures per pixel, increasing the signal-to-noise ratio and providing up to 256× greater sensitivity compared to conventional line scan cameras. Integrated with a CoaXPress 2.0 (CXP-12, 4 channels) interface, it supports 50 Gbps throughput, allowing for fast and efficient data transfer. Advanced features such as DSNU (Dark Signal Non-Uniformity) and PRNU (Photo Response Non-Uniformity) correction ensure optimal image consistency and quality in demanding imaging applications.

Designed to meet the requirements of high-speed, high-precision industrial imaging, the VT-16K5X2-H300-256 offers bidirectional operation with adjustable TDI stages (up to 256), enabling users to fine-tune sensitivity and speed based on their application needs. Trigger rescaling, strobe output control, and GenICam compatibility enhance synchronization and simplify system integration. The camera supports 8/10/12-bit pixel data formats and features analog and digital gain control (1× to 8×), providing flexibility for various imaging scenarios. The M95 lens mount ensures compatibility with high-resolution optics, while the industrial-grade design supports ambient temperatures between 0°C and 40°C. Ideal for flat panel display inspection, PCB inspection, wafer inspection, and high-performance document scanning, the VT-16K5X2-H300-256 camera delivers the reliability and performance needed for demanding machine vision tasks.

Features:

• 16k Hybrid TDI Line Scan
• CoaXPress Interface up to 300 ㎑ at 50 Gbps using 4 CH
• Bidirectional Operation with up to 256 TDI Stages
• Advanced DSNU and PRNU Correction
• Trigger Rescaler and Strobe Output Control
• GenICam Compatible - XML based Control

Applications:

• Flat Panel Display Inspection
• PCB Inspection
• Machine Vision Inspection
• Microscopy and Metrology
